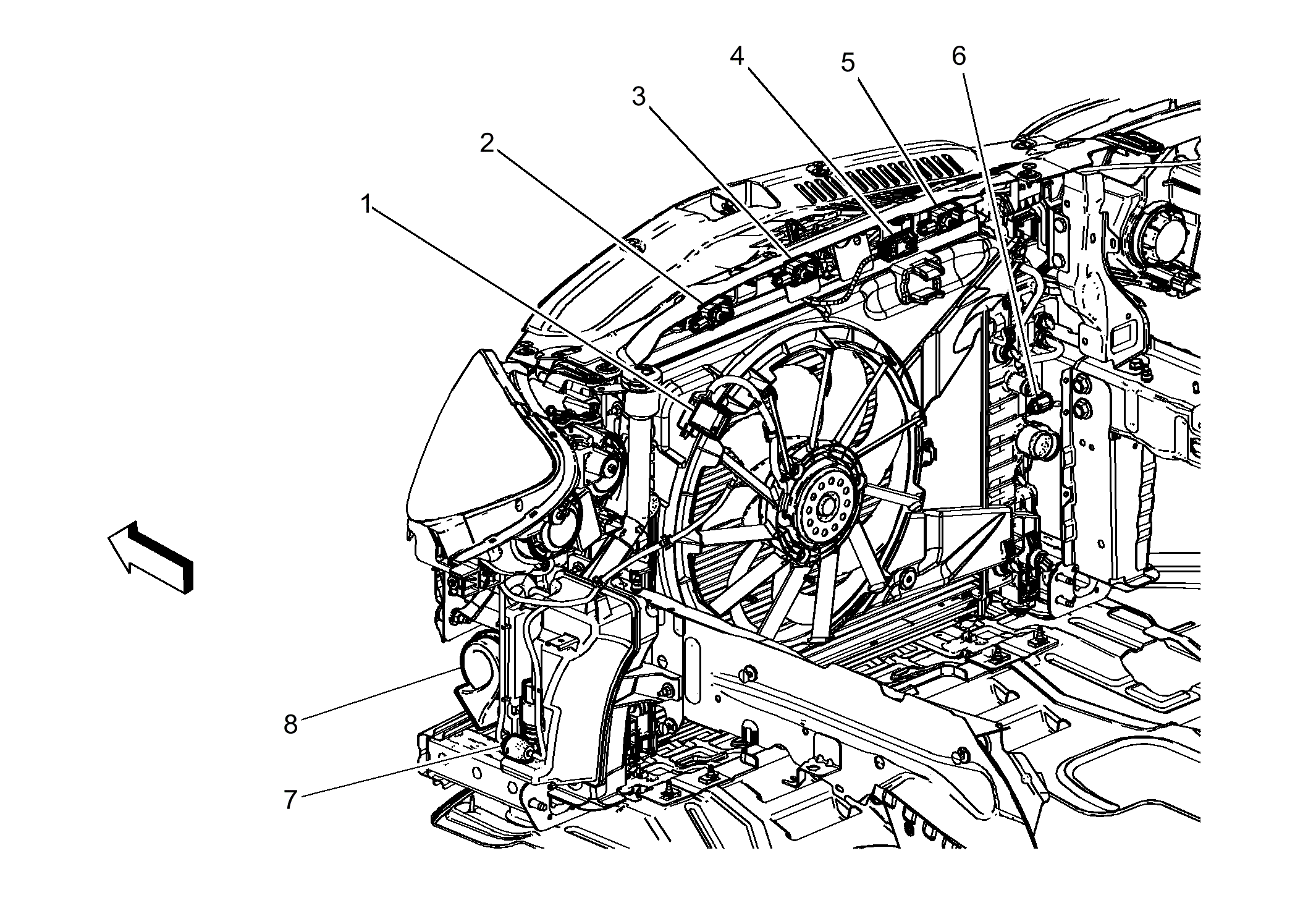

Front of Engine Compartment Components (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: R10 Cooling Fan Resistor R10 Cooling Fan Resistor (LDE/2H0/LFH)R10 Cooling Fan Resistor (LUV) |
| 2: B59L Front Impact Sensor - Left (AY0/AYF) B59L Front Impact Sensor - Left |
| 3: B59 Front Impact Sensor (AYC/ADL) B59 Front Impact Sensor |
| 4: B55 Hood Ajar Switch (BTV/UTJ) B55 Hood Ajar Switch |
| 5: B59R Front Impact Sensor - Right (AY0/AYF) B59R Front Impact Sensor - Right |
| 6: B203 Engine Coolant Radiator Temperature Sensor B203 Engine Coolant Radiator Temperature Sensor |
| 7: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 8: P12 Horn P12A Horn - High Note |
