Fuel Controls - Fuel Pump and Fuel Pump Controls (Encore with LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

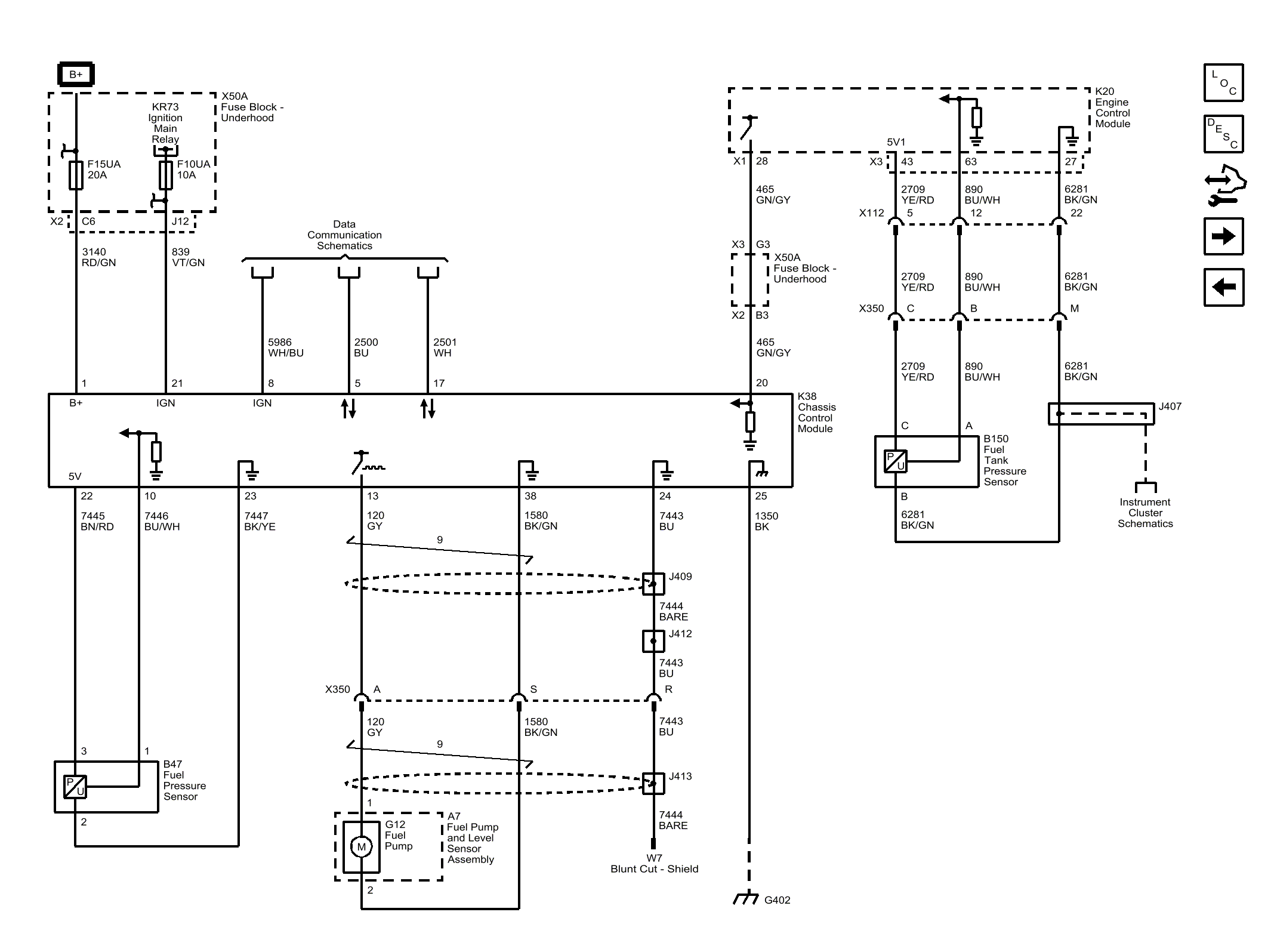

Fig 1: Fuel Controls - Fuel Pump and Fuel Pump Controls (Encore with LUV)
GM3690762Courtesy of GENERAL MOTORS COMPANY
