Section 80 (Wiper System And Washer System)
>>
Schematic Wiring Diagrams
>>
Wiper/Washer Wiring Schematics (Encore)
>>
Rear Wiper/Washer Control and Wiper (Encore)
Rear Wiper/Washer Control and Wiper (Encore)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

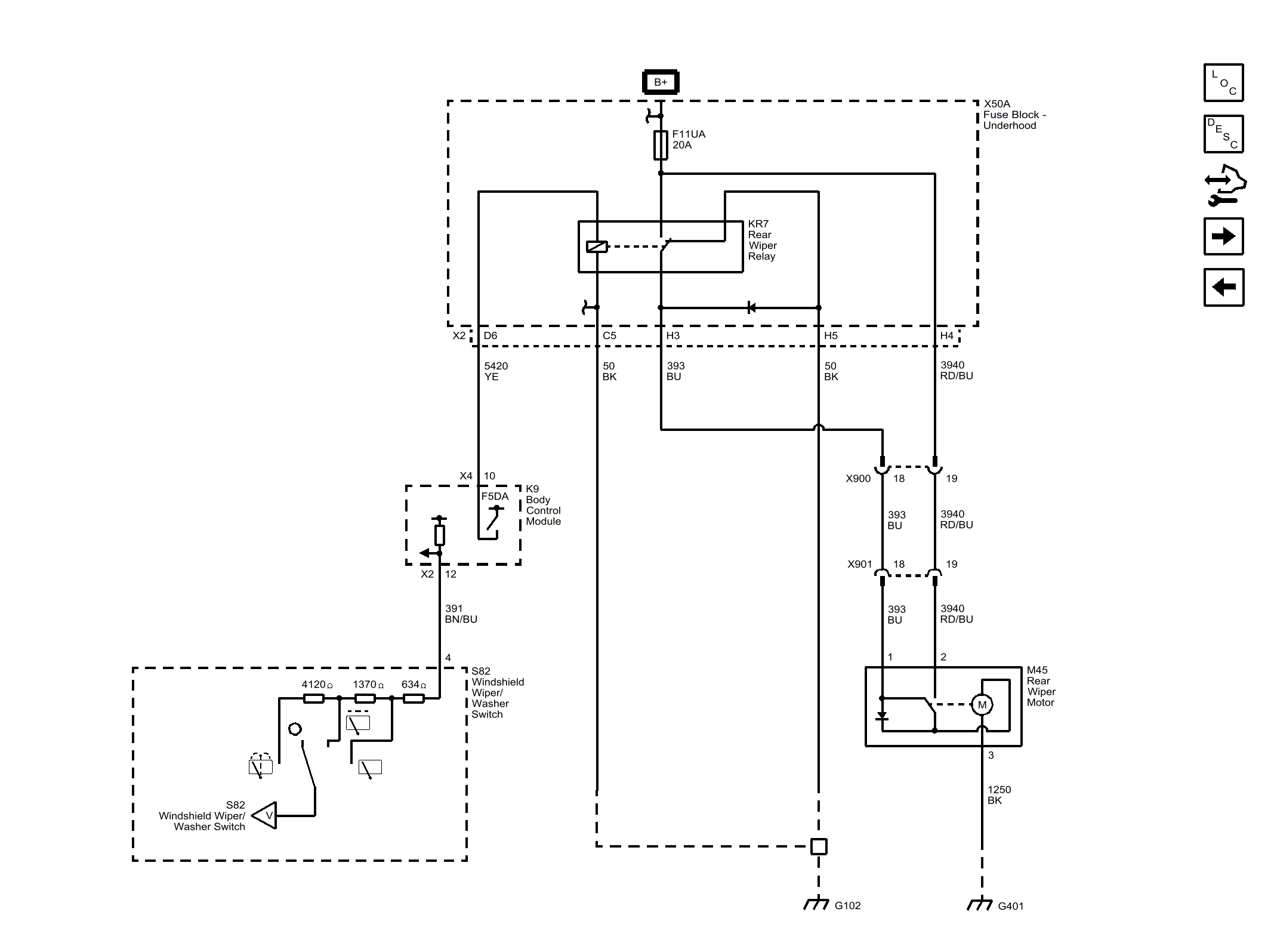

Fig 1: Rear Wiper/Washer Control and Wiper (Encore)
Courtesy of GENERAL MOTORS COMPANY
