Windshield Wiper Arm Adjustment

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

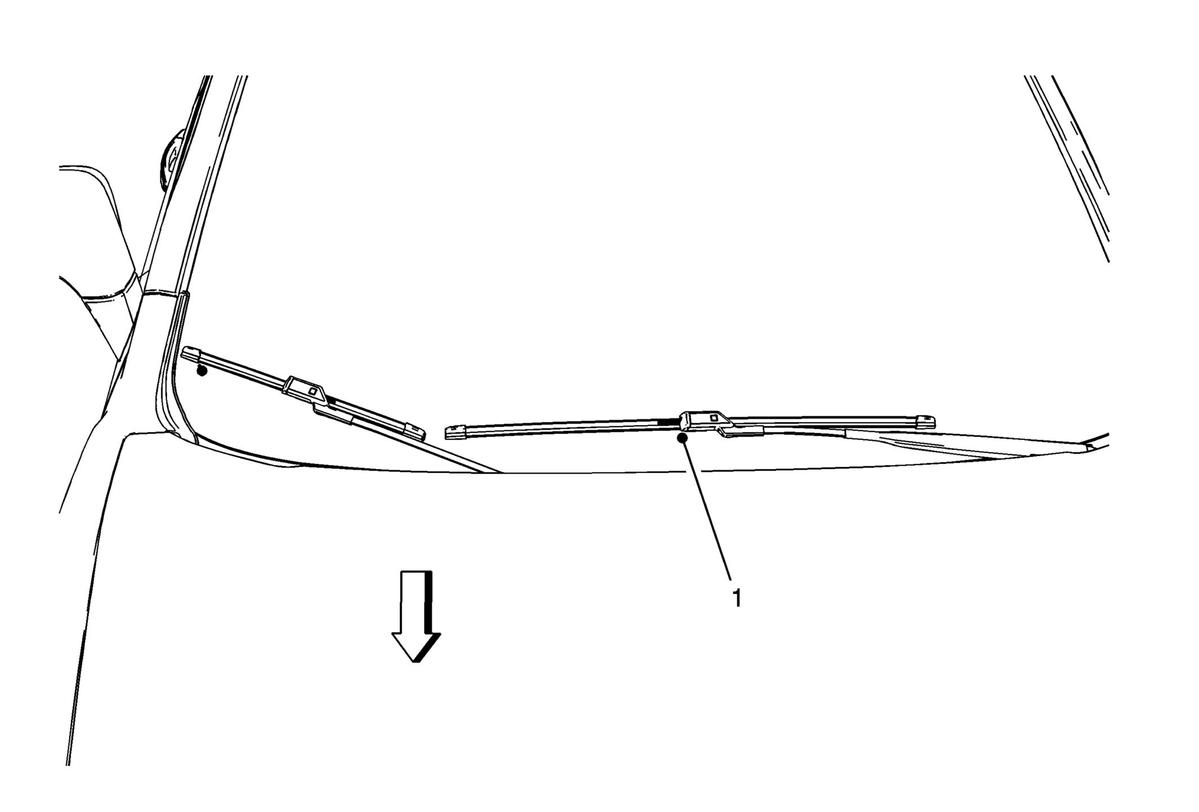

Fig 1: Adjusting Windshield Wiper Arm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Wiper Arm Procedure Lubricate the windshield with windshield washer fluid. Run the windshield wipers and turn off the windshield wipers. Ensure the windshield wipers are in the full park position. Inspect the windshield wipers for proper position to the circle on the windshield. Realign the windshield wiper arm to the circle if required. Refer to Windshield Wiper Arm Replacement .

Callout

Component Name

Windshield Wiper Arm

Procedure

Lubricate the windshield with windshield washer fluid.
Run the windshield wipers and turn off the windshield wipers.
Ensure the windshield wipers are in the full park position.
Inspect the windshield wipers for proper position to the circle on the windshield.
Realign the windshield wiper arm to the circle if required. Refer to Windshield Wiper Arm Replacement .
