Windshield Washer Nozzle Adjustment
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
BO-49380 Adjusting Tool
For equivalent regional tools, refer to Special Tools .
NOTE:
All adjustments must be completed with the hood assembly in the FULL closed position.

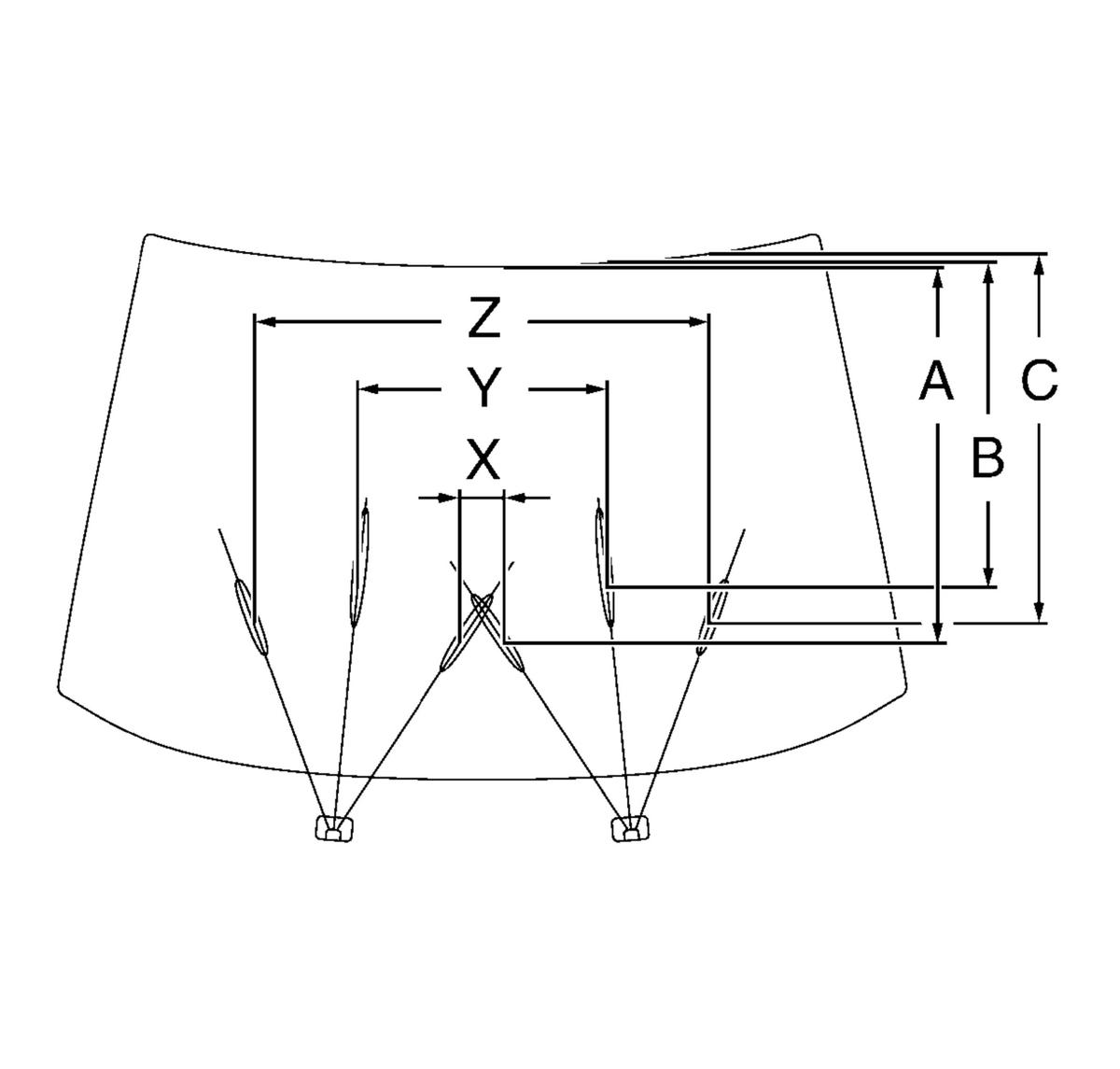

- A= 638 mm (25.118 in)
- B = 550 mm (21.653 in)
- C = 630 mm (24.803 in)
- X = 76 mm (2.992 in)
- Y = 420 mm (16.535 in)
- Z = 768 mm (30.236 in)
Adjust the windshield washer nozzle using the BO-49380 adjuster.
