Air Inlet Grille Panel Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

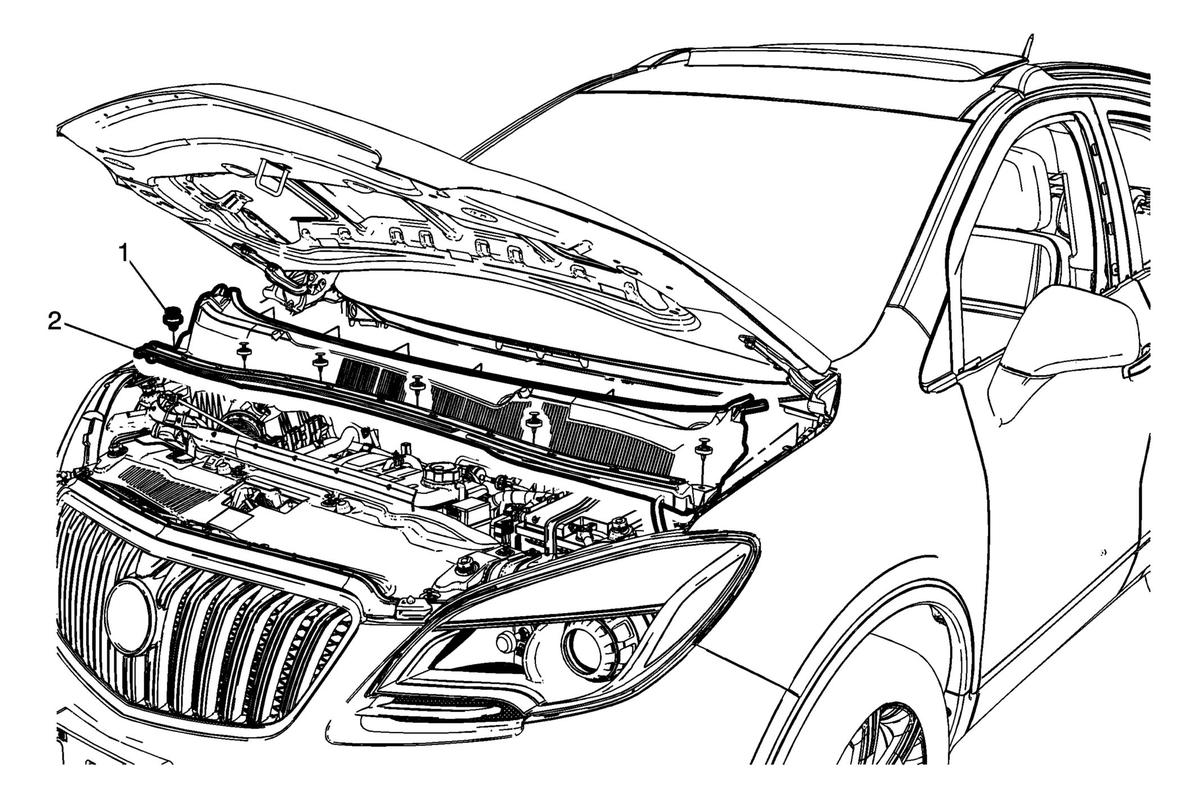

Fig 1: Air Inlet Grille Panel (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .
1	Air Inlet Grille Panel Retainer (Qty: 6) CAUTION: Refer to Fastener Caution .
2	Air Inlet Grille Panel Procedure Disconnect the windshield washer hose. Use a suitable tool to release the push-in retainers at each end of the hood rear weatherstrip. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges. Use a suitable tool to carefully release the air inlet grille panel from the windshield. Transfer parts as needed.

Callout

Component Name

Preliminary Procedure

Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement .
Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .

Air Inlet Grille Panel Retainer (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Air Inlet Grille Panel

Procedure

Disconnect the windshield washer hose.
Use a suitable tool to release the push-in retainers at each end of the hood rear weatherstrip.
Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
Use a suitable tool to carefully release the air inlet grille panel from the windshield.
Transfer parts as needed.
