Steering Wheel Horn Contact Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

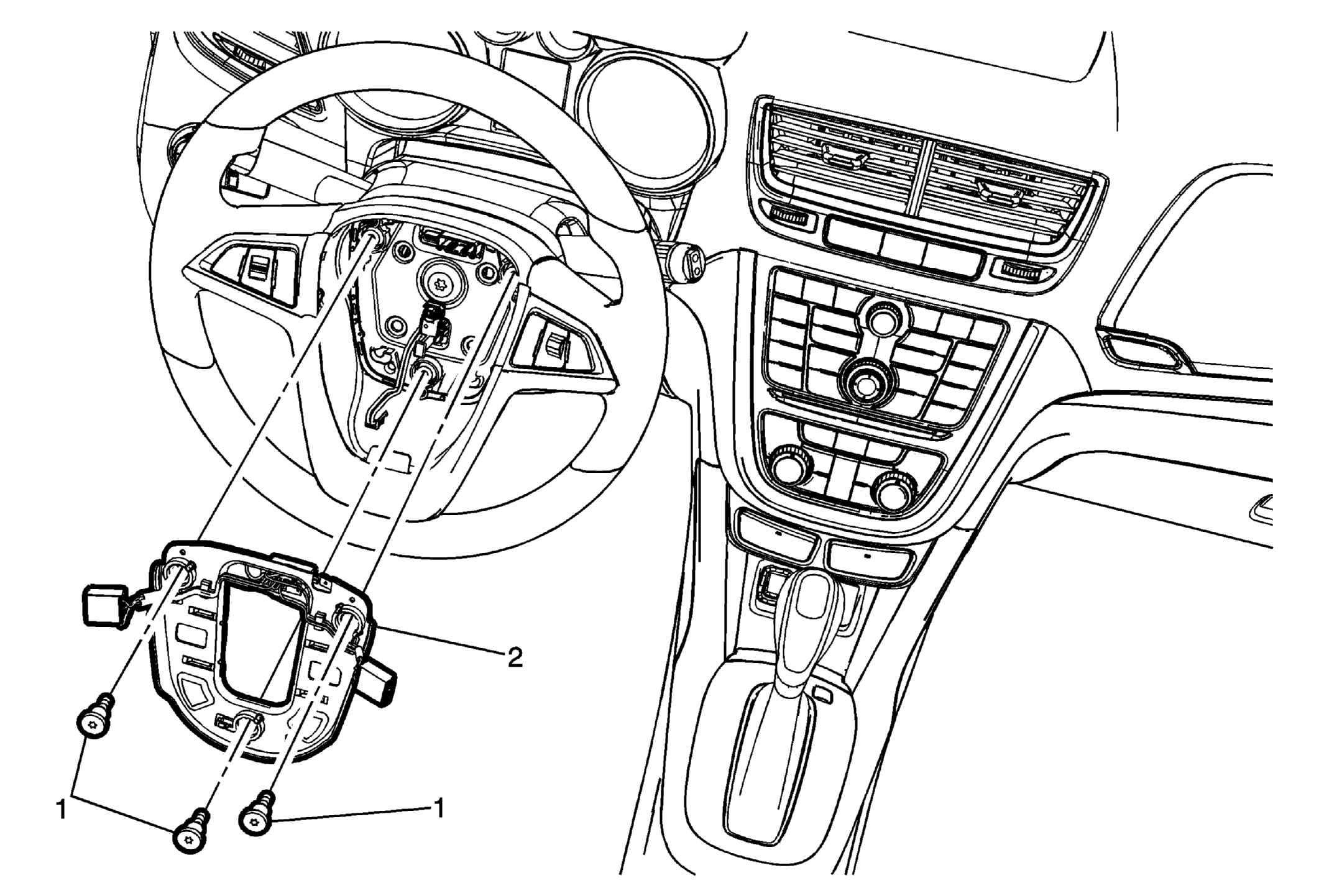

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement . |
|
| 1 | Steering Wheel Horn Contact Spring Retainer Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Steering Wheel Horn Contact Procedure Disconnect the electrical connections. |
