Rear Side Door Weatherstrip Replacement - Body Side

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

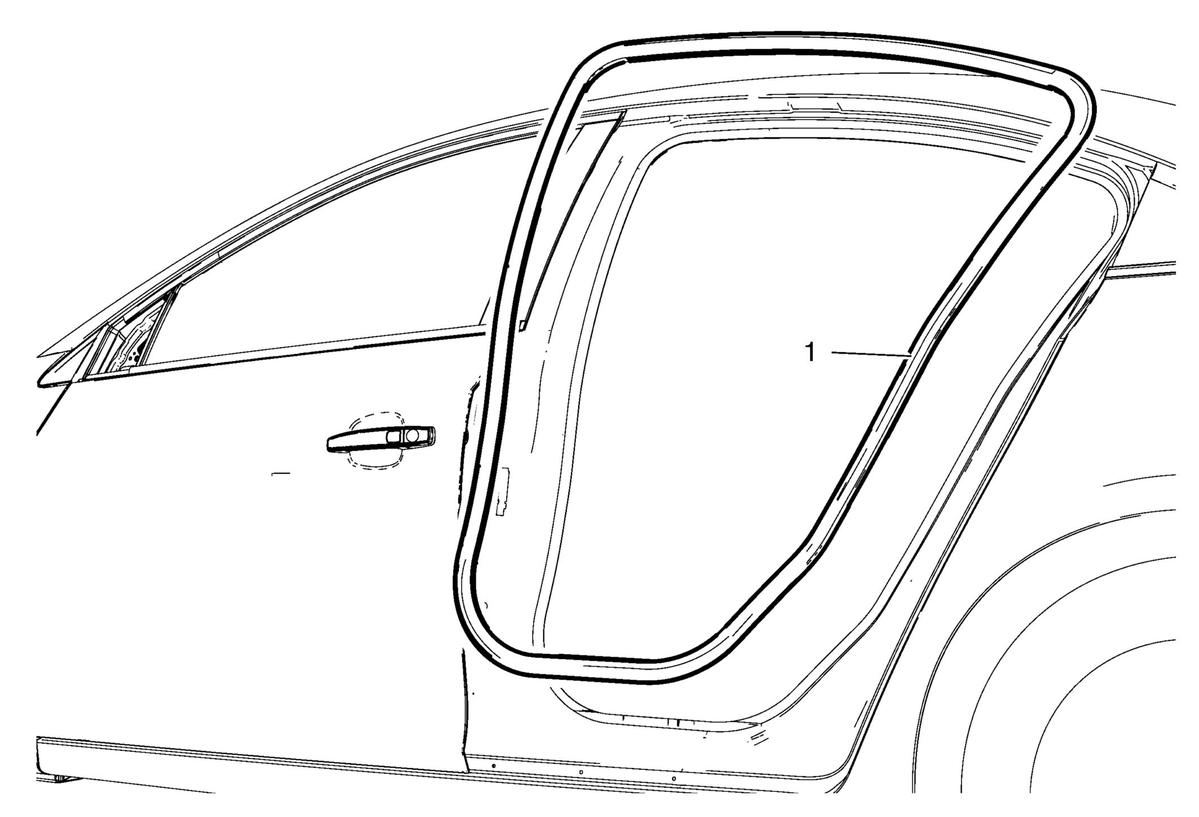

Fig 1: Rear Side Door Weatherstrip - Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement .
1	Rear Side Door Weatherstrip- Body Side Procedure Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange. Position the weatherstrip in the upper corner of the center pillar. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners. Using a rubber mallet, ensure that the weatherstrip is seated on the entire door opening flange. NOTE: Water test the door area after replacing the door weatherstrip to ensure no leaks.

Callout

Component Name

Preliminary Procedures
Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement .

Rear Side Door Weatherstrip- Body Side

Procedure

Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar.
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
Using a rubber mallet, ensure that the weatherstrip is seated on the entire door opening flange.

NOTE:

Water test the door area after replacing the door weatherstrip to ensure no leaks.
