Rear Side Door Upper Hinge and Lower Hinge Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

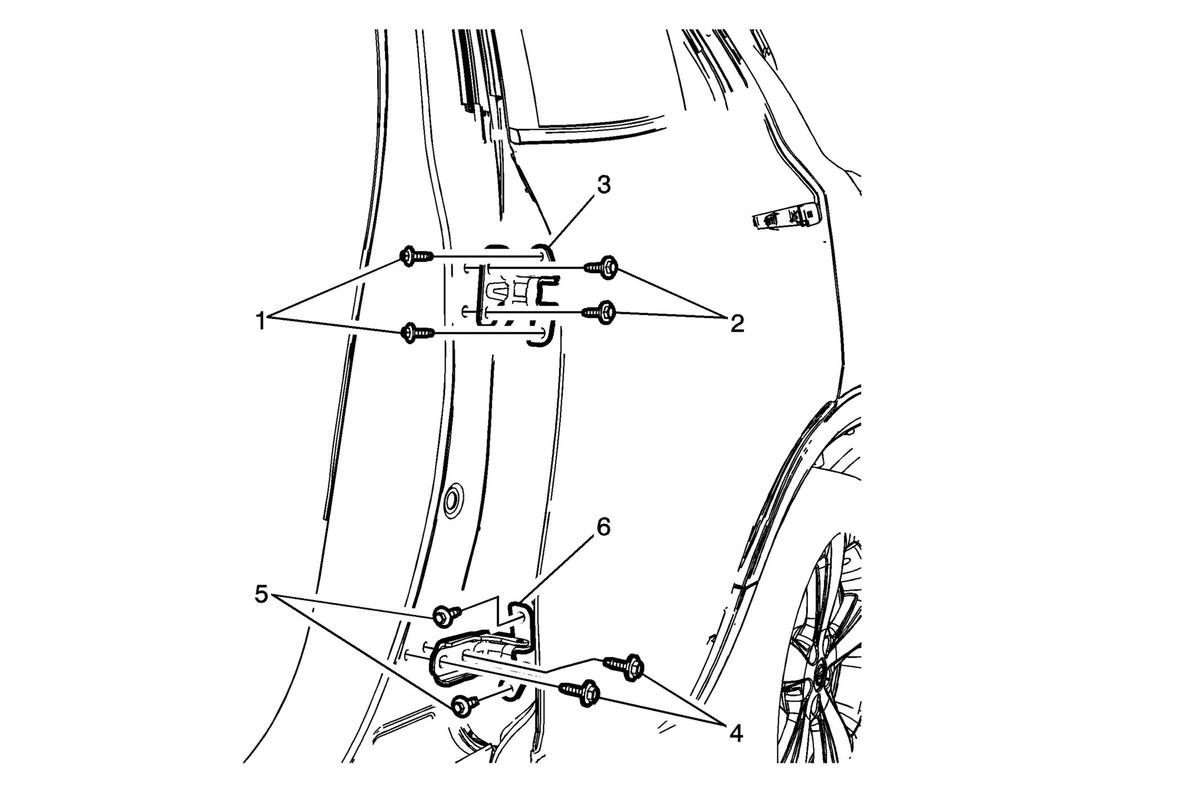

Fig 1: Rear Side Door Hinges

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Upper Hinge to Door Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedures Leave the rear door in the close position to remove the hinge. Apply a double layer of masking tape to the front edge of the rear door to protect the painted surface. Mark the location of the hinge being removed. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Upper Hinge to Body Bolts (Qty: 2) Tighten 32 N.m (24 lb ft)
3	Rear Side Door Upper Hinge
4	Rear Side Door Lower Hinge to Body Bolts (Qty: 2) Tighten 32 N.m (24 lb ft)
5	Rear Side Door Lower Hinge to Door Bolts (Qty: 2) Tighten 25 N.m (18 lb ft)
6	Rear Side Door Lower Hinge Procedure If the door striker needs adjust. Refer to Rear Side Door Lock Striker Adjustment .
