Rear Side Door Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

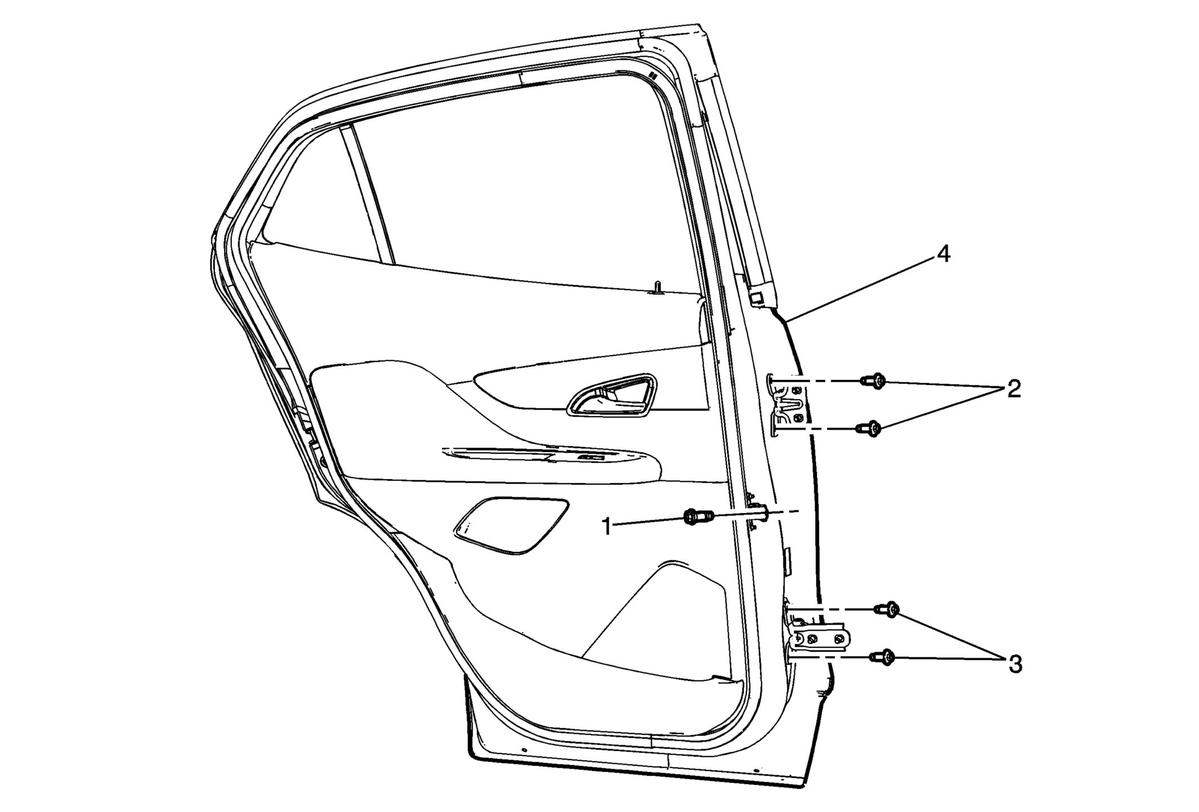

Fig 1: Rear Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Check Link Bolt to Body WARNING: Refer to SIR Warning . CAUTION: Refer to Fastener Caution . Procedure Mark the location of the hinge before removing the bolts with a grease pencil. Remove the water deflector. Disconnect the door electrical connector. Support the door before removing the hinge bolts. With an assistant, remove the door. After the door has been removed, ensure that the dome lamp is off. If the dome lamp is on remove the fuse. Tighten 22 N.m (16 lb ft)
2	Rear Side Door Hinge Bolt to Door (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Rear Side Door Hinge Bolt to Door (Qty: 2) Tighten 25 N.m (18 lb ft)
4	Rear Side Door Assembly Procedure When replacing the door it is necessary to transfer all of the internal components. If the door striker needs adjust. Refer to Rear Side Door Lock Striker Adjustment . Rear door adjustment. Refer to Rear Side Door Adjustment . NOTE: Water test the door area after replacing the door to ensure no leaks.
