Liftgate Adjustment (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

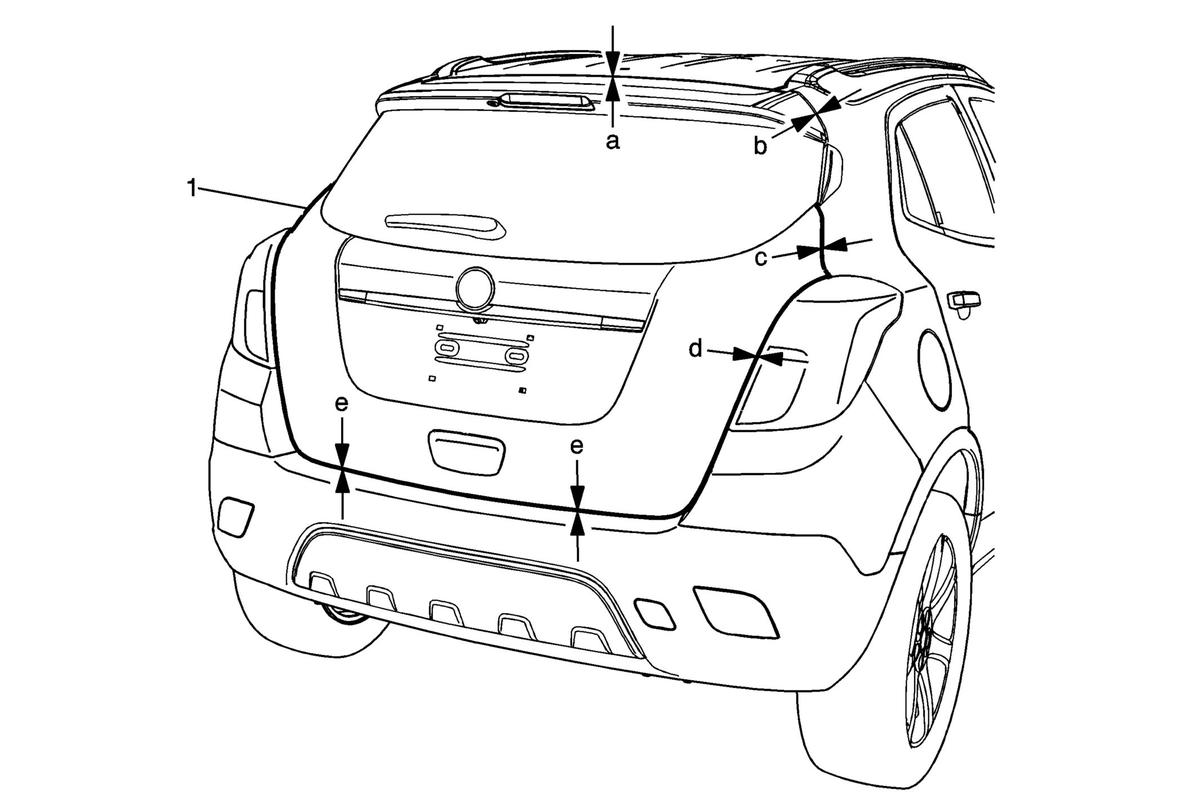

Fig 1: Liftgate Adjustment Points (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate CAUTION: Refer to Fastener Caution . Procedure Loosen the 4 liftgate hinge bolts to adjust the liftgate. Adjust the liftgate in order to obtain an even gap between the liftgate and the roof, the quarter outer panel, the tail lamp and rear bumper fascia and so that the liftgate is flush with the roof, the quarter outer panel, the tail lamp and rear bumper fascia. Adjustment: Liftgate to roof (a) 5.5 mm ± 1.0 mm (0.22 in ± 0.04 in) Liftgate to quarter outer panel (b) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in) Liftgate to quarter outer panel (c) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in) Liftgate to rear bumper fascia (d) 3.5 mm ± 1.0 mm (0.14 in ± 0.04 in) Liftgate to rear bumper fascia (e) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in) Tighten 25 N.m (18 lb ft)

Callout

Component Name

Liftgate

CAUTION:

Refer to Fastener Caution .

Procedure

Loosen the 4 liftgate hinge bolts to adjust the liftgate.
Adjust the liftgate in order to obtain an even gap between the liftgate and the roof, the quarter outer panel, the tail lamp and rear bumper fascia and so that the liftgate is flush with the roof, the quarter outer panel, the tail lamp and rear bumper fascia.

Adjustment:

Liftgate to roof (a) 5.5 mm ± 1.0 mm (0.22 in ± 0.04 in)
Liftgate to quarter outer panel (b) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
Liftgate to quarter outer panel (c) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
Liftgate to rear bumper fascia (d) 3.5 mm ± 1.0 mm (0.14 in ± 0.04 in)
Liftgate to rear bumper fascia (e) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in)

Tighten
25 N.m (18 lb ft)
