Hood Rear Weatherstrip Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

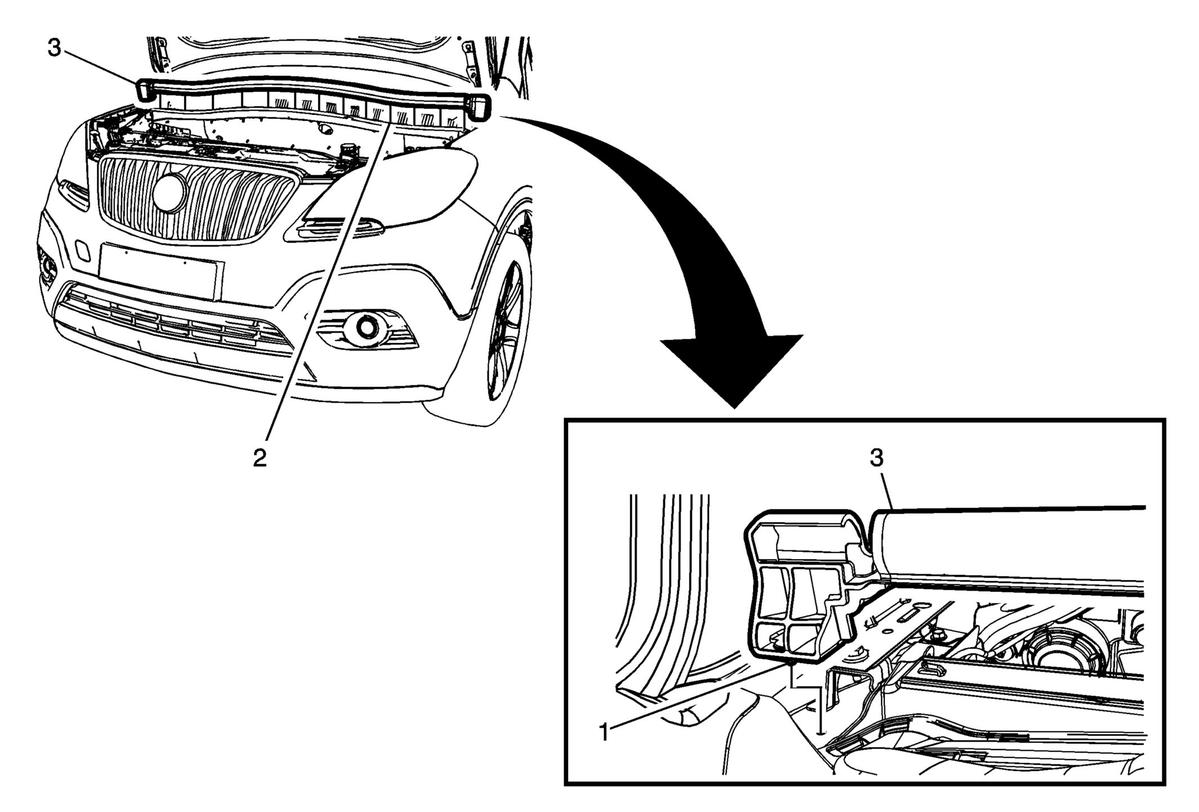

| Callout | Component Name |
|---|---|
| 1 | Hood Rear Weatherstrip Push-In Retainer (Qty: 2) Procedure Use a suitable tool to release the push-in retainers. |
| 2 | Hood Rear Weatherstrip Retainer (Qty: 12) Procedure The hood rear weatherstrip is held in place with plastic retainers that are part of the air inlet grille. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille. |
| 3 | Hood Rear Weatherstrip |
