Hood Primary and Secondary Latch Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

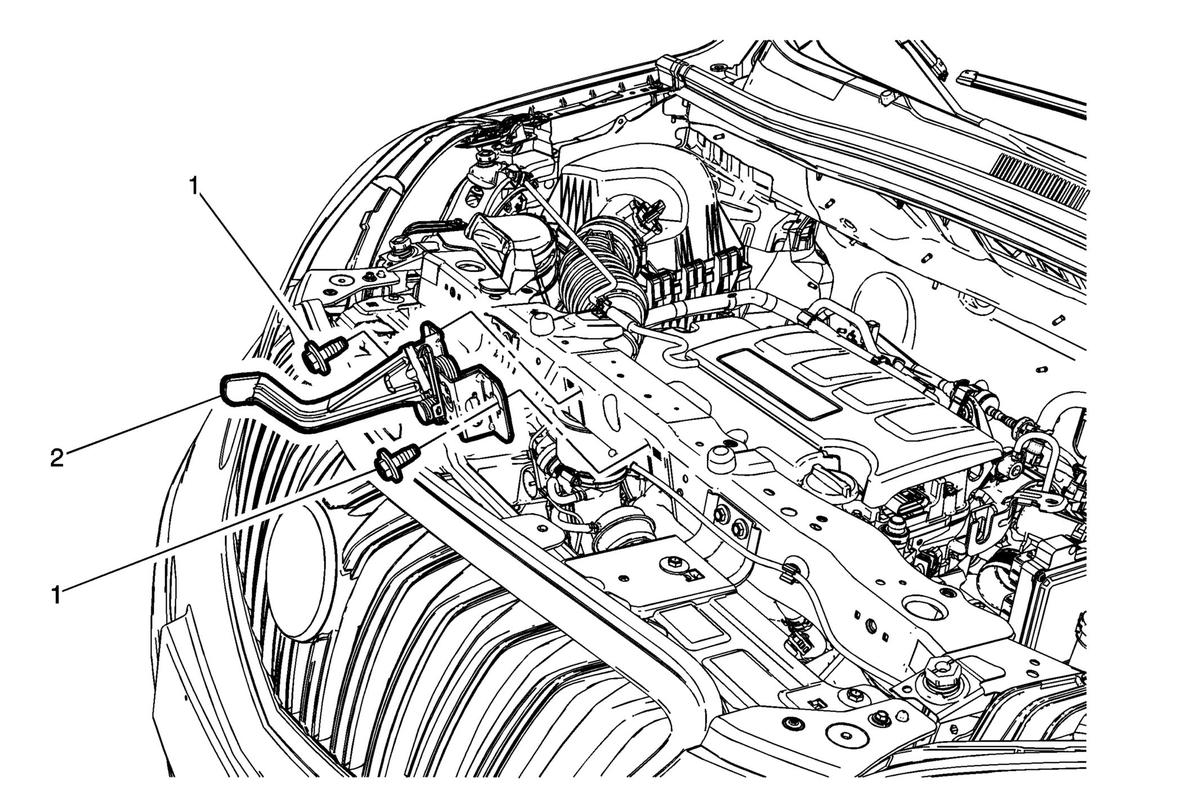

Fig 1: Hood Primary And Secondary Latch (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement .
1	Hood Primary and Secondary Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Primary and Secondary Latch Procedure Disconnect the release cable from the hood primary latch. Disconnect the electrical connector, if equipped.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement .

Hood Primary and Secondary Latch Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Hood Primary and Secondary Latch

Procedure

Disconnect the release cable from the hood primary latch.
Disconnect the electrical connector, if equipped.
