Hood Primary Latch Release Cable Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

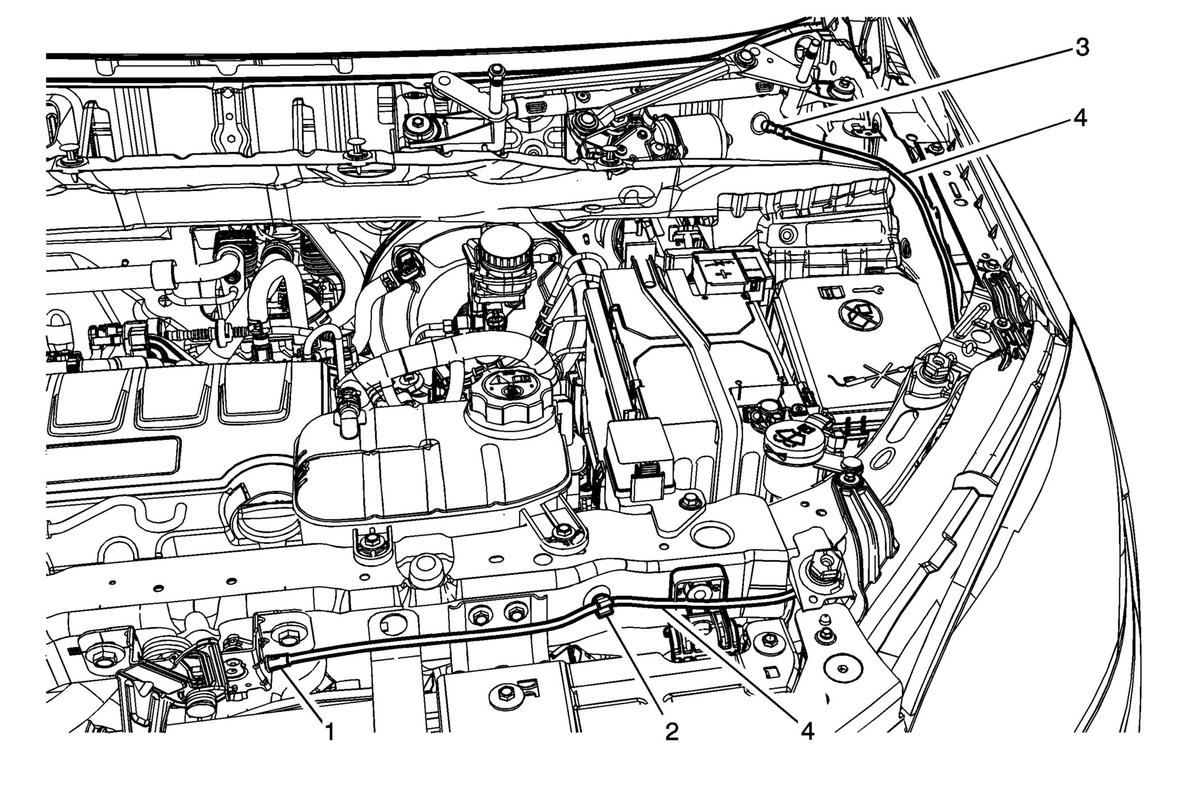

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement . |
|
| 1 | Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch. |
| 2 | Hood Primary Latch Release Cable Retainer Procedure Disconnect the hood primary latch release cable from the 3 hood primary latch release cable retainers. One on the top of the upper tie bar and two on the underside. |
| 3 | Hood Primary Latch Release Cable Grommet |
| 4 | Hood Primary Latch Release Cable Procedure Disconnect the hood primary latch release cable handle from the hood latch cable bracket. |
