Hood Insulator Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

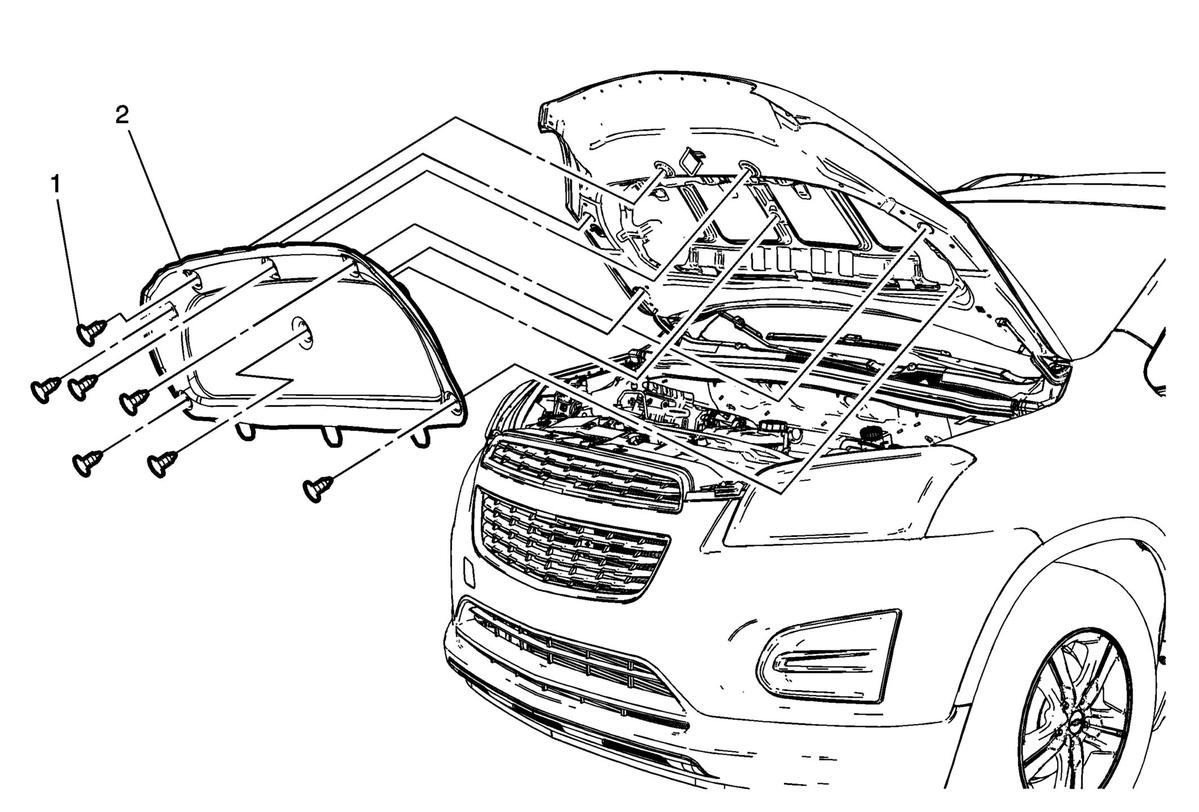

Fig 1: Hood Insulator (Trax)
GM2856233Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Insulator Plastic Retainer (Qty: 8)
2 Hood Insulator
Procedure
Ensure the 3 integral tabs are secured to the hood.
