Hood Front Edge Weatherstrip Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

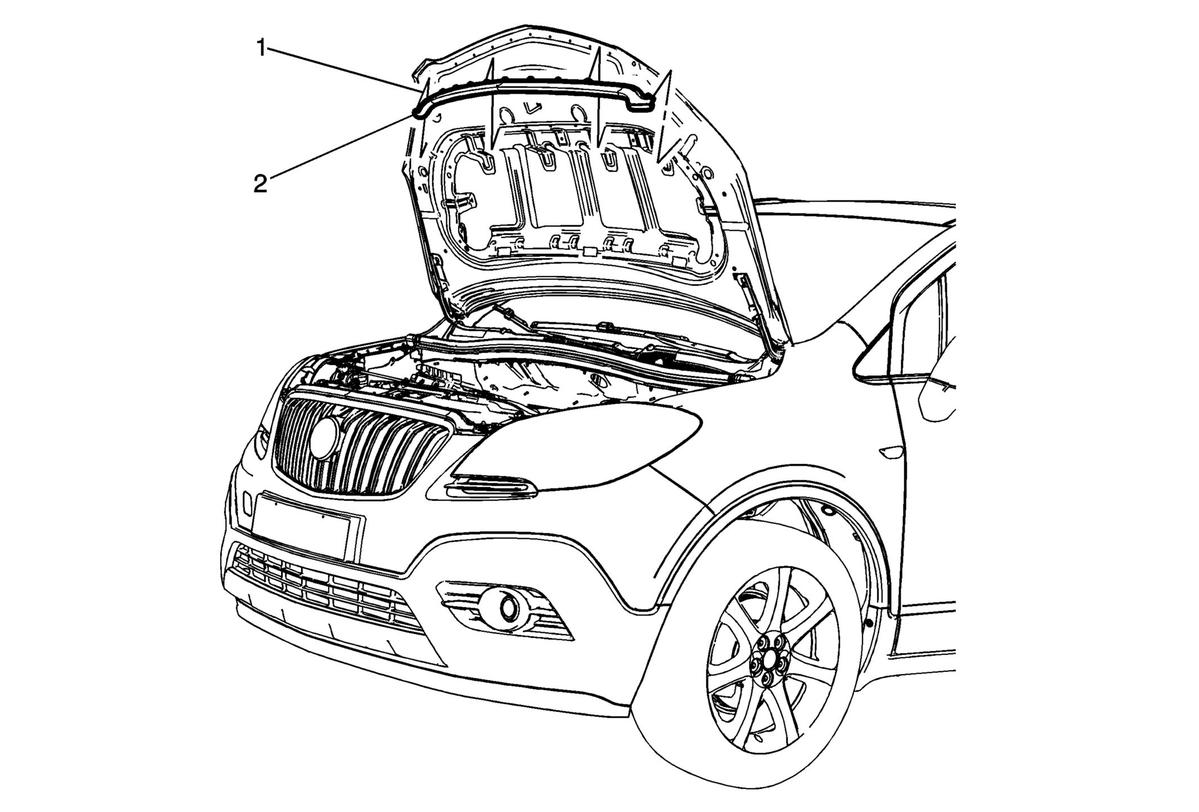

Fig 1: Hood Front Edge Weatherstrip (Encore)
GM2869359Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Front Edge Weatherstrip Push-In Retainer (Qty: 11)
Procedure
Use a suitable tool to release the push-in retainers.
2 Hood Front Edge Weatherstrip
