Rear Side Door Lock Striker Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

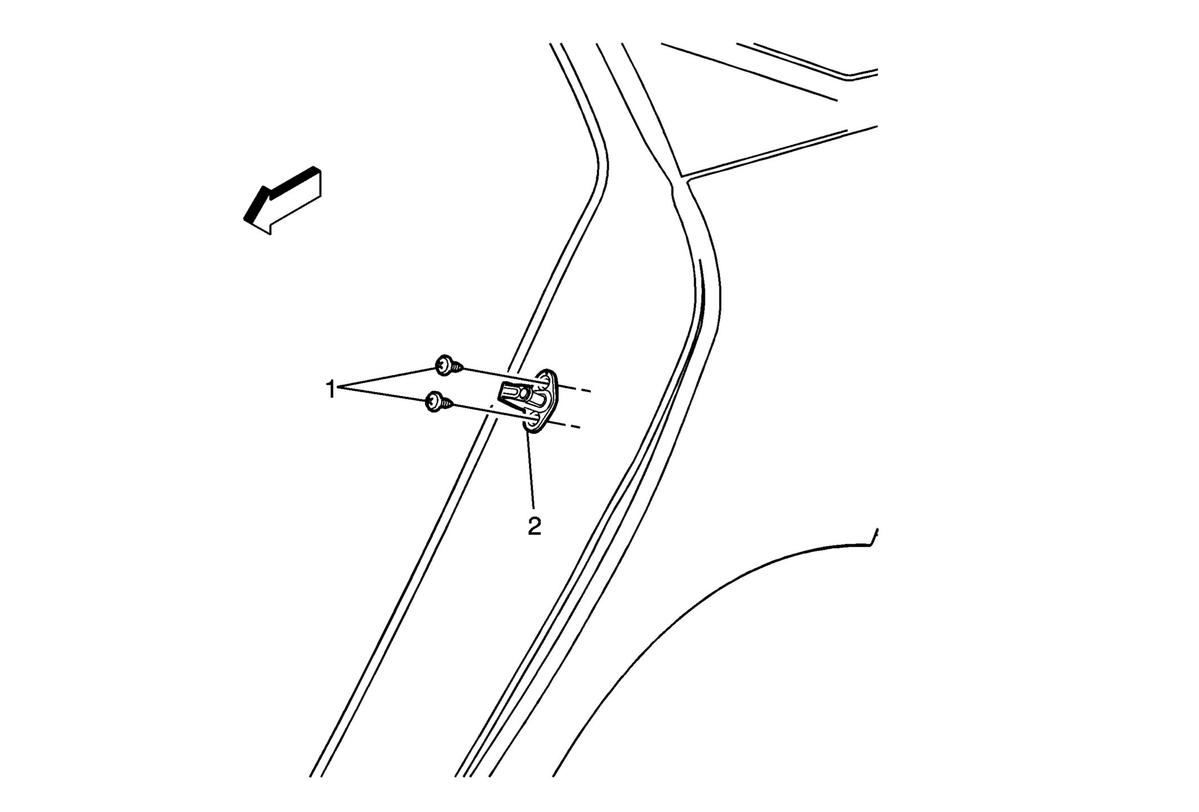

Fig 1: Rear Side Door Lock Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Lock Striker Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Unclip the door lock striker cover from the striker to expose the screws, if equipped. Tighten 22 N.m (16 lb ft)
2	Rear Side Door Lock Striker Procedures Ensure the spacer is in place. Ensure proper alignment after installation. Refer to Rear Side Door Lock Striker Adjustment .

Callout

Component Name

Rear Side Door Lock Striker Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure
Unclip the door lock striker cover from the striker to expose the screws, if equipped.
Tighten
22 N.m (16 lb ft)

Rear Side Door Lock Striker

Procedures

Ensure the spacer is in place.
Ensure proper alignment after installation. Refer to Rear Side Door Lock Striker Adjustment .
