Opening the Liftgate Without Electrical Power

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

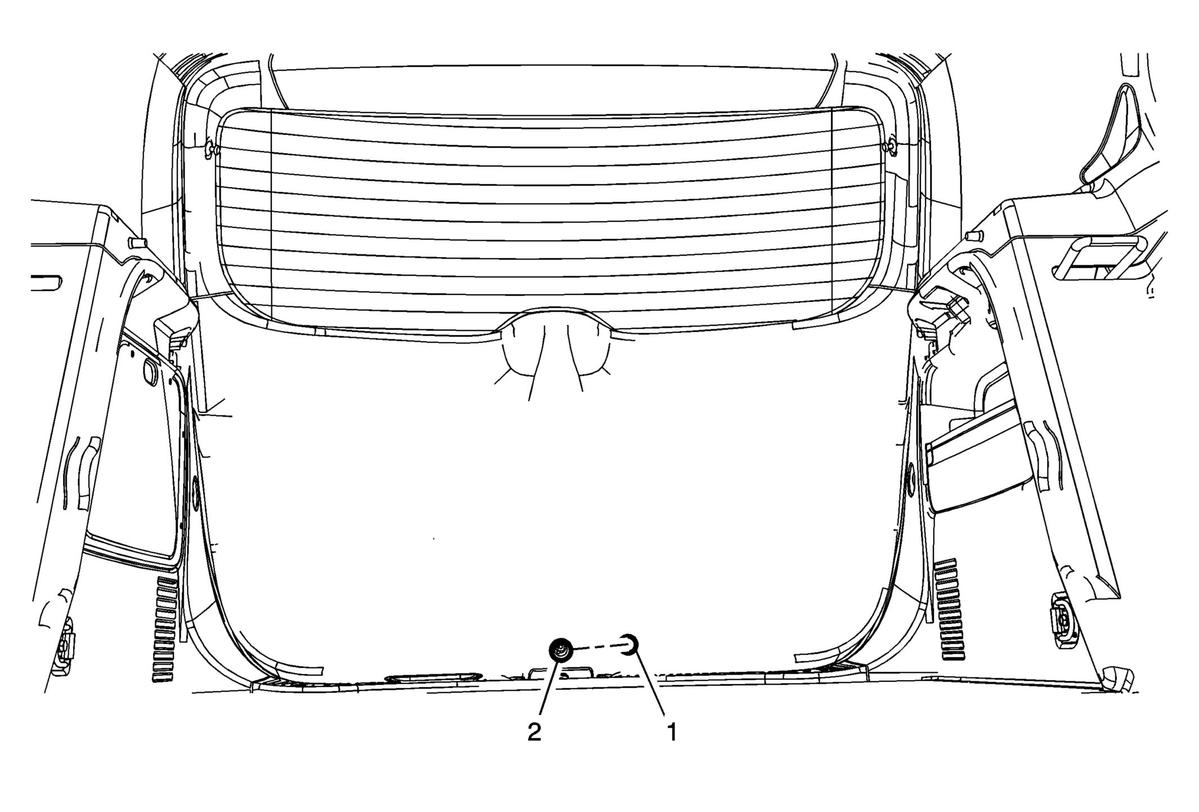

Fig 1: Opening the Liftgate Without Electrical Power
GM2788405Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Access Cover
2 Liftgate Latch

Procedure

  1. Insert a flat-bladed tool into the hole, rotate slightly counterclockwise.
  2. Push open the liftgate from the inside.
  3. Install the access cover.
