Front Side Door Lock Striker Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

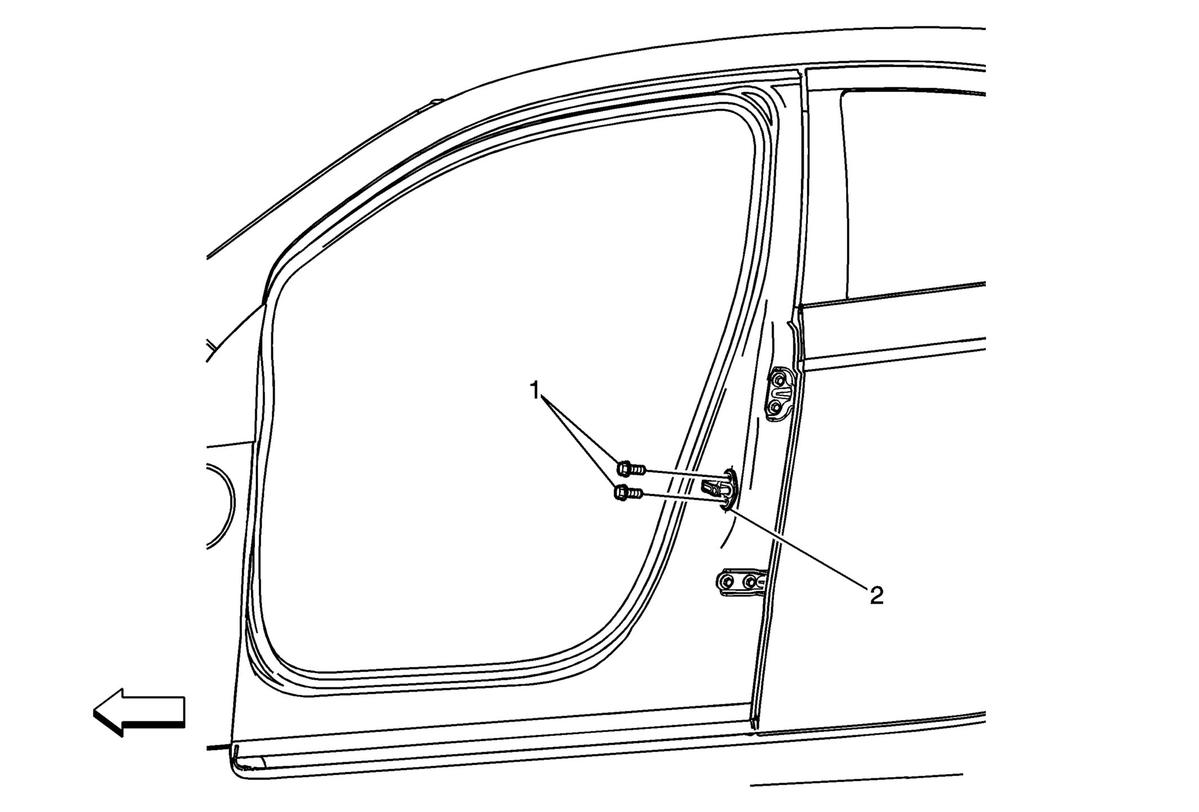

| Callout | Component Name |
|---|---|
| 1 | Front Door Lock Striker Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Unclip the door lock striker cover from the striker to expose the screws, if equipped. Tighten 22 N.m (16 lb ft) |
| 2 | Front Door Lock Striker Procedure Ensure the alignment of the striker. Refer to Front Side Door Lock Striker Adjustment . |
