Front Side Door Lock Cylinder Bezel Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

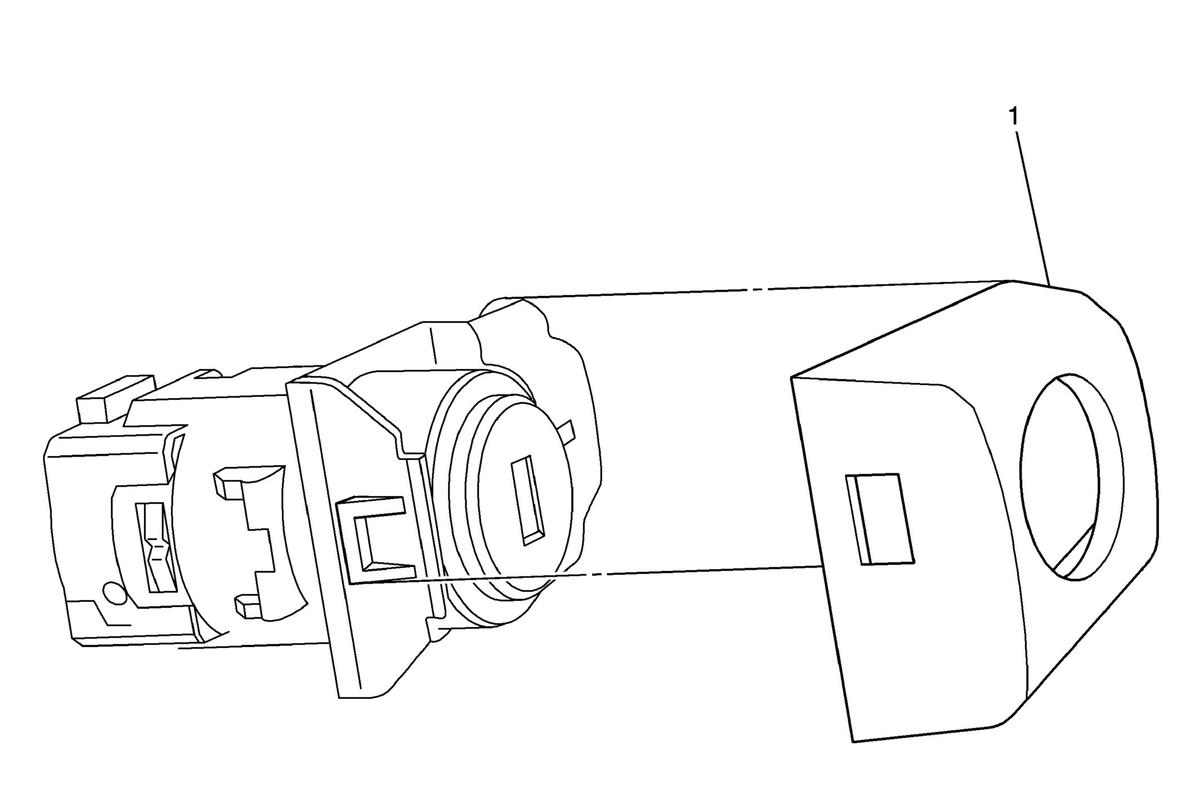

Fig 1: View Of Front Side Door Lock Cylinder Opening Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Lock Cylinder Bezel Procedure Remove the front side door lock cylinder, Do Not remove the outside door handle. Refer to Front Side Door Lock Cylinder Replacement . Do Not remove the door lock cylinder screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder. NOTE: Use a small flat-bladed tool to release the door lock cylinder bezel retainers location on both sides.

Callout

Component Name

Front Side Door Lock Cylinder Bezel

Procedure

Remove the front side door lock cylinder, Do Not remove the outside door handle. Refer to Front Side Door Lock Cylinder Replacement .
Do Not remove the door lock cylinder screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder.

NOTE:

Use a small flat-bladed tool to release the door lock cylinder bezel retainers location on both sides.
