Door Lock System Components
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
The power door lock system consists of the following components:
- Driver door lock switch
- Passenger door lock switch
- Body control module (BCM)
- Driver door latch
- Passenger door latch
- Left rear door latch
- Right rear door latch

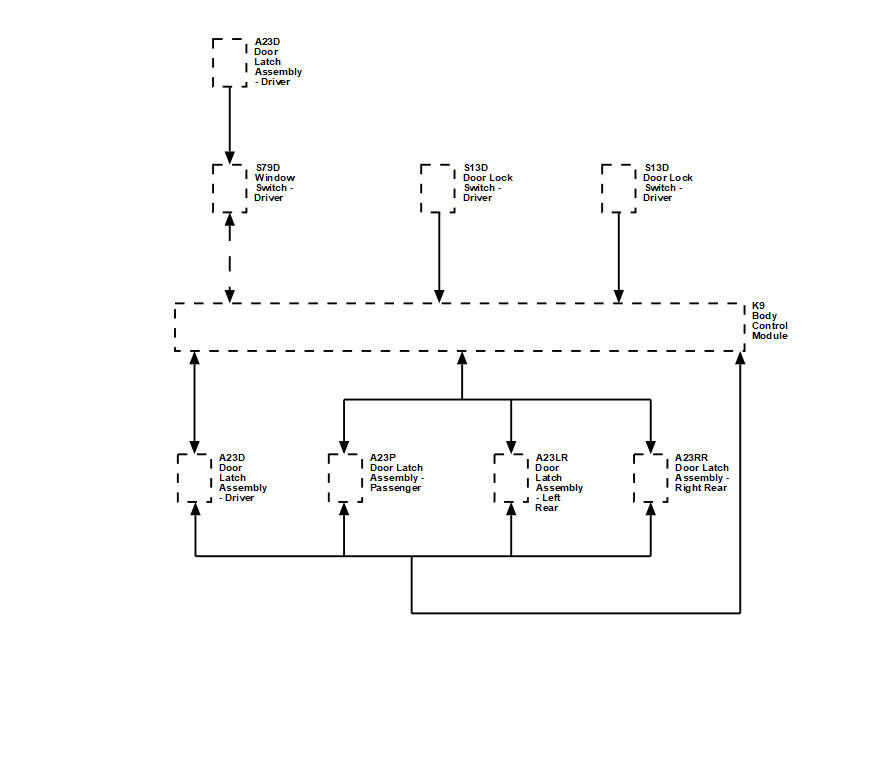

| Callout | Component Name |
|---|---|
| A23D | A23D Door Latch Assembly - Driver |
| S79D | S79D Window Switch - Driver |
| S13D | S13D Door Lock Switch - Driver |
| S13D | S13D Door Lock Switch - Driver |
| K9 | K9 Body Control Module |
| A23RR | A23RR Door Latch Assembly - Right Rear |
| A23LR | A23LR Door Latch Assembly - Left Rear |
| A23P | A23P Door Latch Assembly - Passenger |
| A23D | A23D Door Latch Assembly - Driver |
