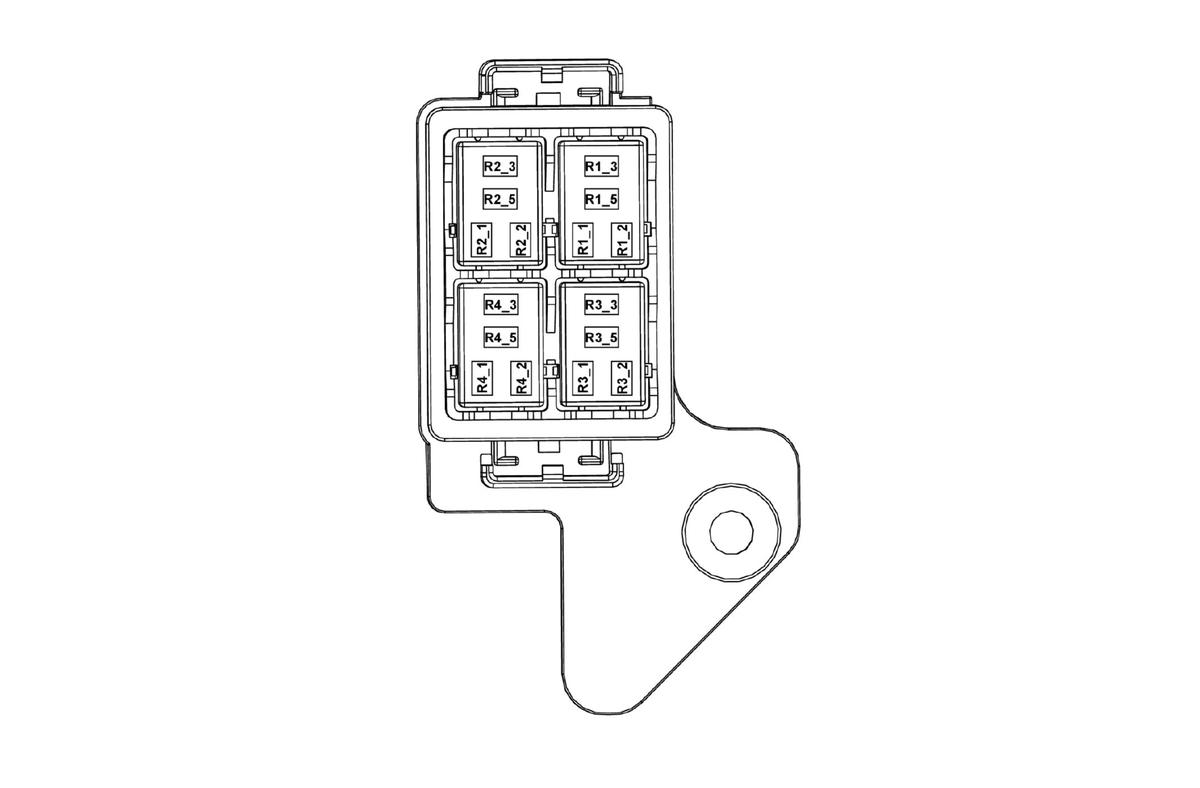

X70A Relay Block - Underhood, Top View
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
X70A RELAY BLOCK - UNDERHOOD RELAY IDENTIFICATION
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Relays | ||||
| R1 | ELECTRIC VACUUM PUMP RELAY | KR14 Brake Booster Pump Motor Relay | - | M9 Brake Booster Pump Motor (LUV/LUJ/2H0) |
| R2 | COOLING FAN CTRL 1 RELAY | KR20E Cooling Fan Speed Control Relay | - | K20 Engine Control Module (LUV/LUJ) |
| R3 | COOLING FAN CTRL 2 RELAY | KR20F Cooling Fan Relay | - | K20 Engine Control Module (LUV/LUJ) |
| R4 | HDLP WASH RLY (EU) / TRL RLY (NA) | - | - | Not Used |
