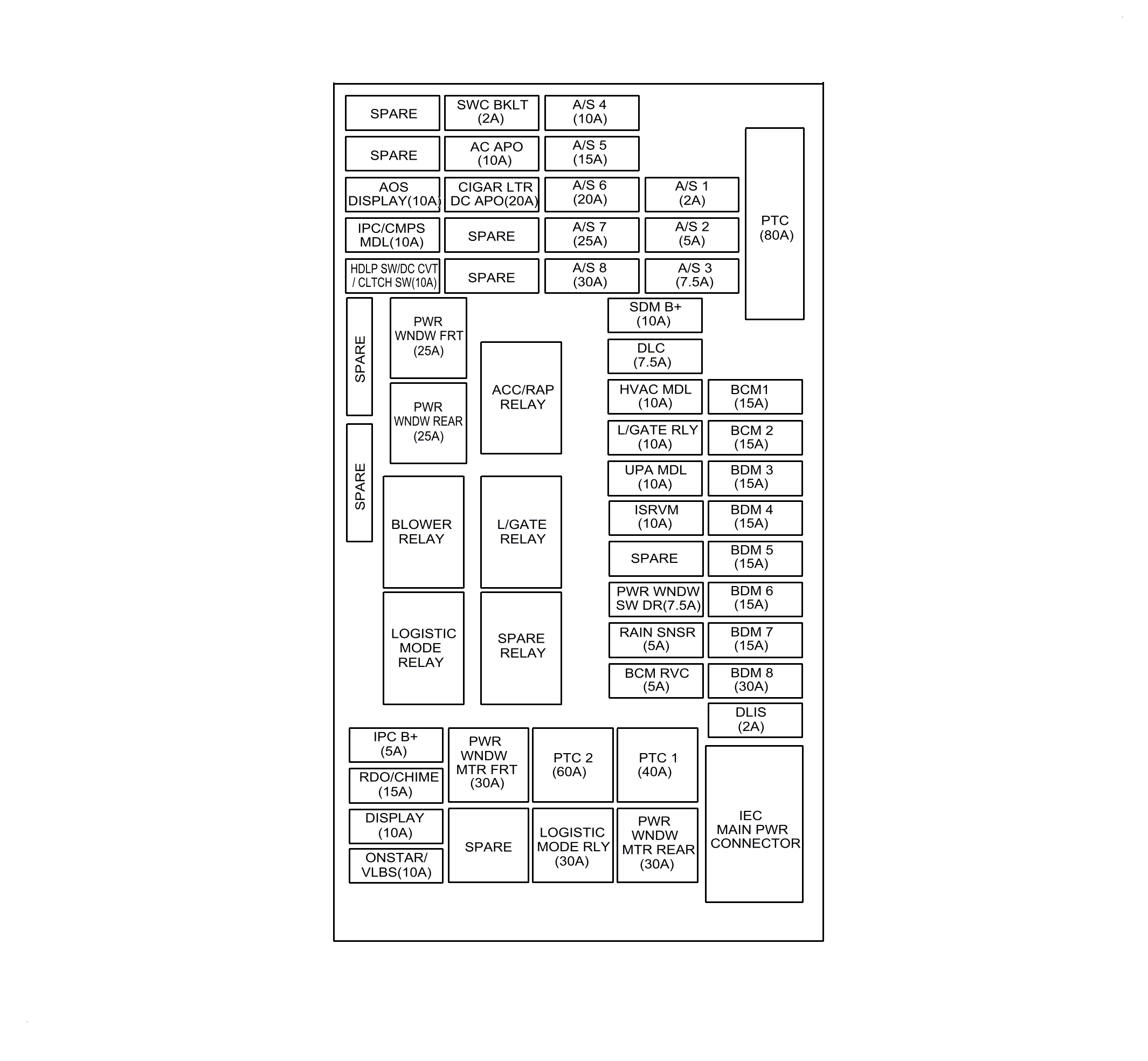

X51A Fuse Block - Instrument Panel Label
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| F1 | BCM 1 | F1DA | 15A | K9 Body Control Module |
| F2 | BCM 2 | F2DA | 15A | K9 Body Control Module |
| F3 | BCM 3 | F3DA | 15A | K9 Body Control Module |
| F4 | BCM 4 | F4DA | 15A | K9 Body Control Module |
| F5 | BCM 5 | F5DA | 15A | K9 Body Control Module |
| F6 | BCM 6 | F6DA | 15A | K9 Body Control Module |
| F7 | BCM 7 | F7DA | 15A | K9 Body Control Module |
| F8 | BCM 8 | F8DA | 30A | K9 Body Control Module |
| F9 | DLIS | F9DA | 2A | S39 Ignition Switch |
| F10 | SDM B+ | F10DA | 10A | K38 Inflatable restraint Sensing and Diagnostic Module |
| F11 | DLC | F11DA | 7.5A | X84 Data Link Connector |
| F12 | HVAC MDL HVAC ICSI | F12DA | 10A | K33 HVAC Control Module, A26 HVAC Controls |
| F13 | L/GATE RLY | F13DA | 10A | KR95A Liftgate Unlatch Relay |
| F14 | UPA MDL | F14DA | 10A | KR95A Liftgate Release Relay |
| F15 | LDW MDL ISRVM | F15DA | 10A | K52 Rearview Camera Module, A10 Inside Rearview Mirror |
| F16 | AFL MDL | F16DA | 10A | K28 Headlamp Leveling Control Module |
| F17 | PWR WNDW SW DR | F17DA | 7.5A | A26 HVAC Control, K33 HVAC Control Module |
| F18 | RAIN SNSR | F18DA | 5A | B117 Rain Sensor |
| F19 | BCM RVC | F19DA | 5A | Spare Fuse |
| F20 | SWC BKLT | F20DA | 2A | S70L Steering Wheel Controls Switch Left, S70R Steering Wheel Controls Switch Right |
| F21 | AC APO/PRNDL | F21DA | 10A | K61 Sunroof Control Module |
| F22 | CIGAR LTR/DC APO | F22DA | 20A | E32 Cigarette Lighter Receptacle |
| F23 | SPARE | F23DA | 10A | Not Used |
| F24 | SPARE | F24DA | 20A | Nog Used |
| F25 | SPARE | F25DA | 10A | Not Used |
| F26 | AOS DISPLAY | F26DA | 10A | K36 Inflatable Restraint Sensing and Diagnostic Module |
| F27 | IPC/PTC CNTRL/CLUTCH SW | F27DA | 10A | P16 Instrument Cluster |
| F28 | HDLP SW/AFL/DC CVT | F28DA | 10A | S30 Headlamp Switch, T19 Power Supply, K28 Headlamp Leveling Control Module |
| F29 | SPARE | F29DA | 10A | P14 Passenger Air Bag Disable Indicator, P16 Instrument cluster |
| F30 | SPARE | F30DA | 10A | Not Used |
| F31 | IPC B+ | F31DA | 5A | Not Used |
| F32 | RDO/CHIME/AUX JACK | F32DA | 15A | A11 Radio, P5 Chime Alarm Control Module, X92 USB Receptacle |
| F33 | DISPLAY/FACEPLATE | F33DA | 10A | P17 Info Display Module, K48 Infotainment Faceplate Controle Module |
| F34 | ONSTAR/DAB | F34DA | 10A | A12 Digital Radio receiver Control module |
| CB1DA | SPARE | CB1DA | 20A | Not Used |
| SB1 | SPARE | F1DB | 40A | Not Used |
| SB2 | SPARE | F2DB | 60A | Not Used |
| SB3 | PWR WNDW MTR FRT | F3DB | 30A | M74D Window Motor - Driver, S79P Window Switch - Passenger |
| SB4 | PWR WNDW MTR REAR | F4DB | 30A | S79LR Window Switch - Left Rear, S79RR Window Switch - Right Rear |
| SB5 | LOGISTIC MODE RLY | F5DB | 30A | KR104A Battery Saver Relay 1 |
| SB6 | SPARE | F6DB | 30A | Not Used |
| SB7 | SPARE | F7DB | 25A | Not Used |
| SB8 | SPARE | F8DB | 25A | Not Used |
| Relays | ||||
| RLY 1 | ACC/RAP RELAY | KR76 Retained Accessory Power Relay | - | CB1DA, F21DA, F22DA, F23DA, F7DB, F8DB |
| RLY 2 | L/GATE RELAY | KR95A Liftgate Unlatch Relay | - | M30 Liftgate Latch |
| RLY 3 | SPARE RELAY | - | - | Not Used |
| RLY 4 | SPARE RELAY | - | - | Not Used |
| RLY 5 | LOGISTIC MODE RELAY | KR104A Battery Saver Relay 1 | - | J255, F31DA, F32DA, F33DA, F34DA, T19 (KL9) |
