X50A Fuse Block - Underhood Label (2H0)

WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.

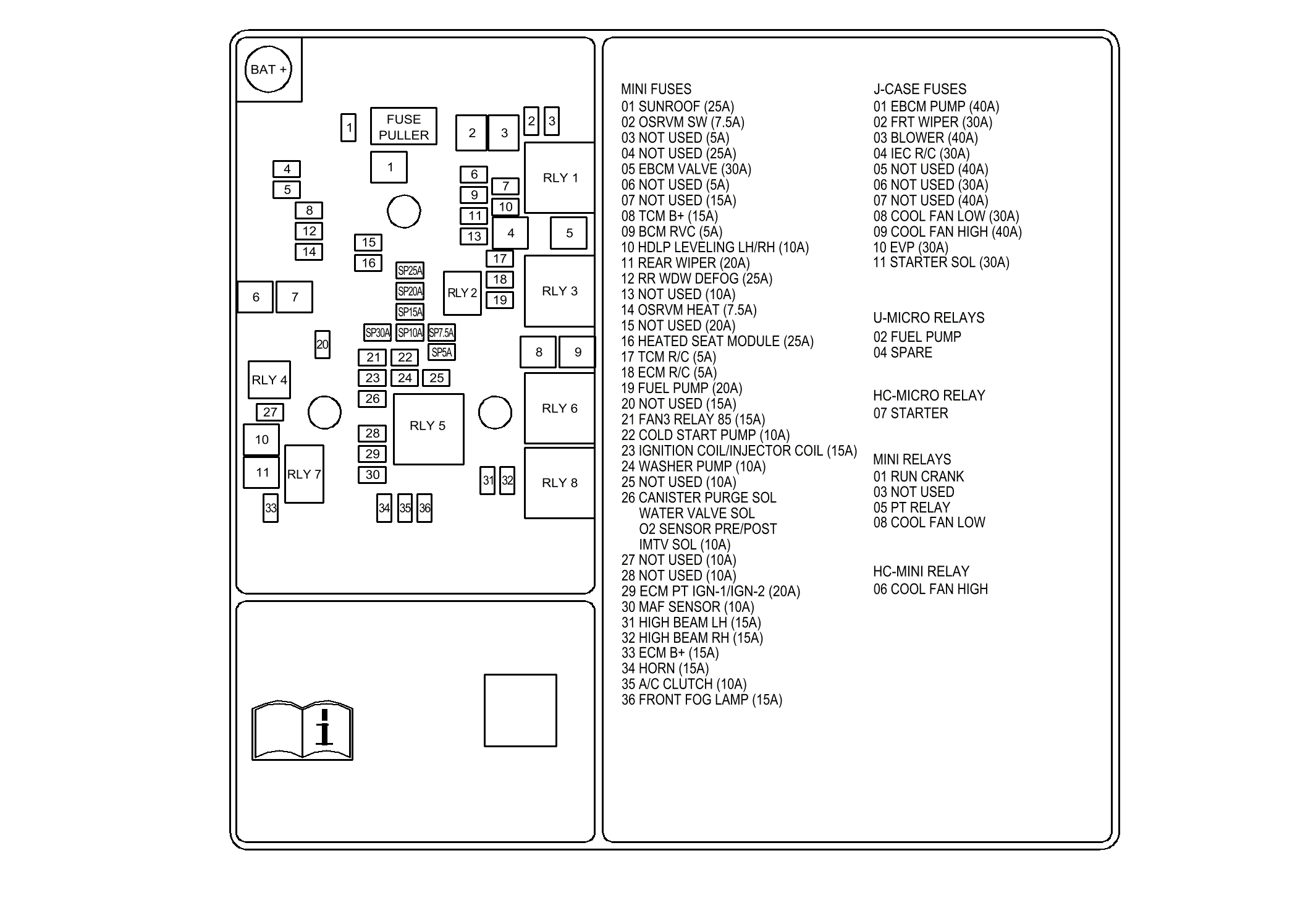

Fig 1: X50A Fuse Block - Underhood Label (2H0)
GM3607048Courtesy of GENERAL MOTORS COMPANY
X50A FUSE BLOCK - UNDERHOOD, FUSE AND RELAY IDENTIFICATION LEGEND

Refer to X50A FUSE BLOCK - UNDERHOOD, FUSE AND RELAY IDENTIFICATION LEGEND
