Section 71 (Component Locations - Electrical Center Identification Views (BUICK))
>>
Electrical Center Identification Views (Buick)
>>
X50A Fuse Block - Underhood, Top View
X50A Fuse Block - Underhood, Top View
WARNING:
This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

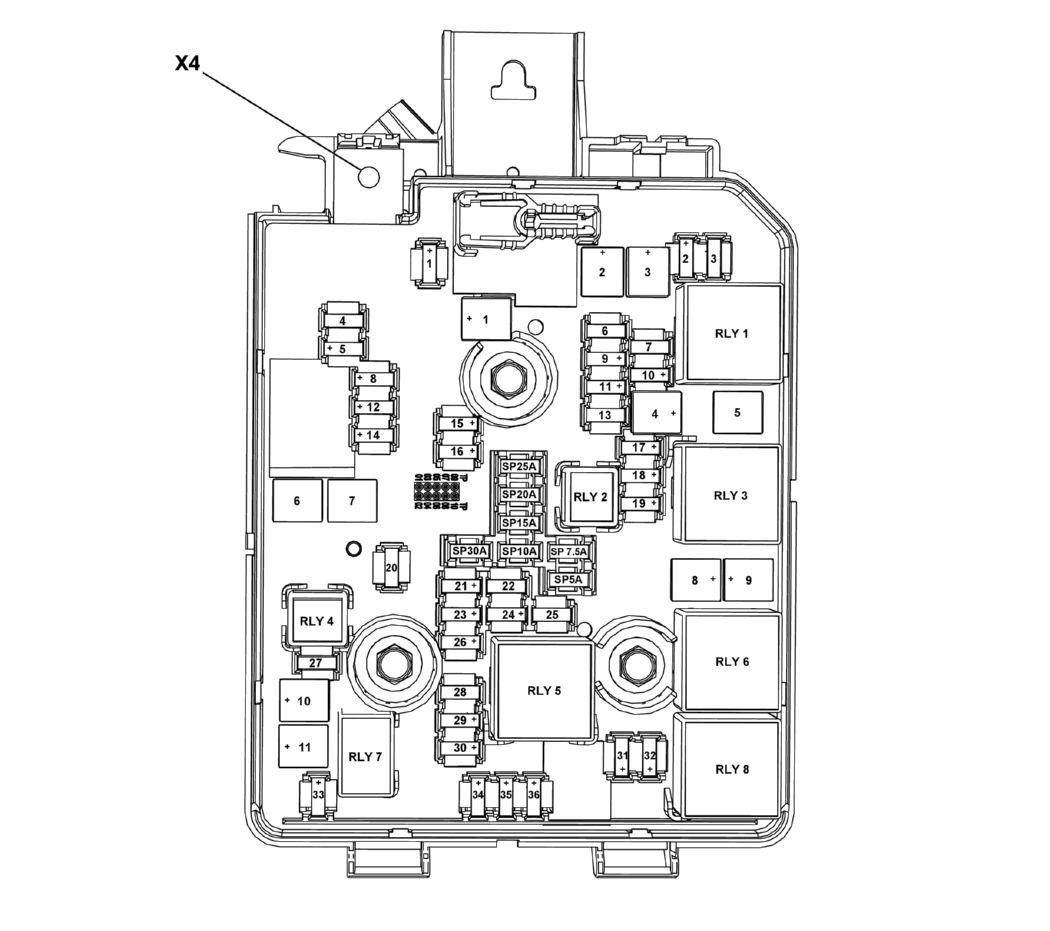

Fig 1: X50A Fuse Block - Underhood, Top View
Courtesy of GENERAL MOTORS COMPANY
