Rear Seat Belt Buckle Replacement (Right)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

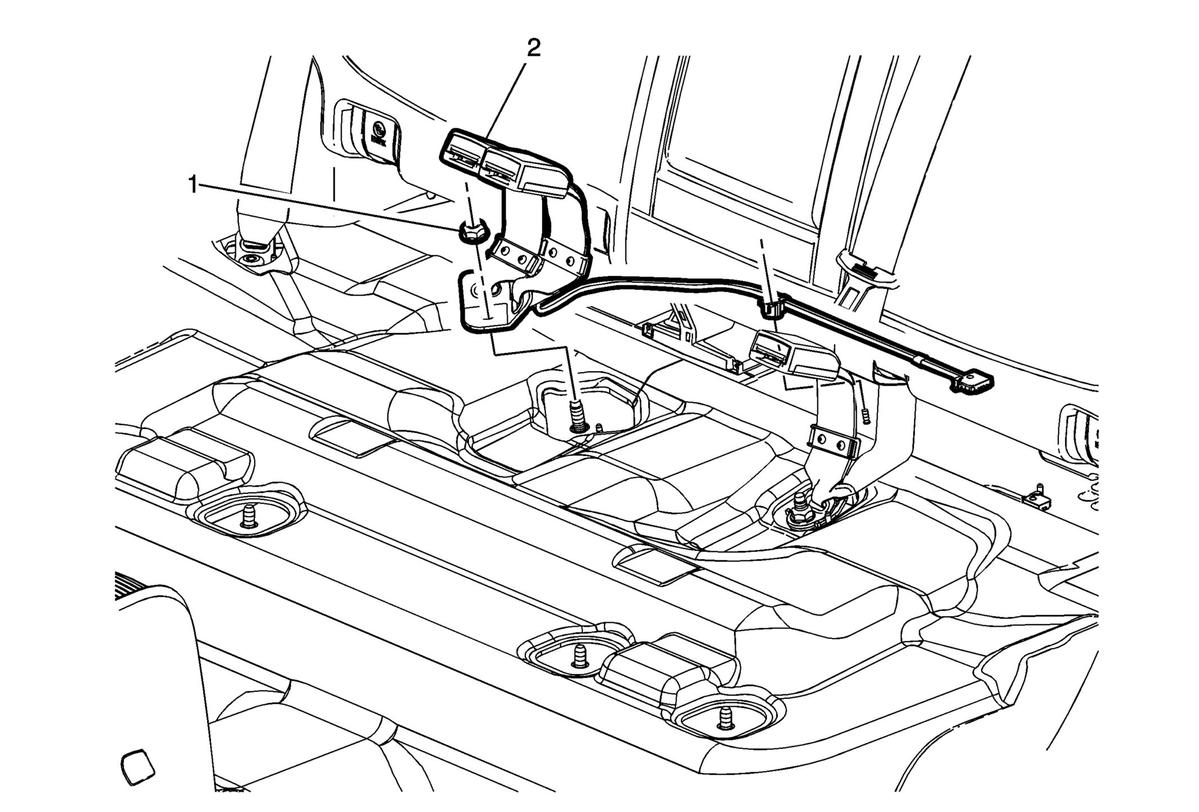

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Belt Buckle Nut
CAUTION:
Refer to Fastener Caution . Procedure Pull on the lower release straps to disengage the seat cushion so it can be folded into the up position to gain access to the nut. Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Belt Buckle Assembly Procedure Disconnect the electrical, if equipped. |
