Section 69 (Secondary And Configurable Customer Control System)
>>
Schematic Wiring Diagrams
>>
Steering Wheel Secondary/Configurable Control Wiring Schematics (Encore)
>>
Steering Wheel Controls (Encore)
Steering Wheel Controls (Encore)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

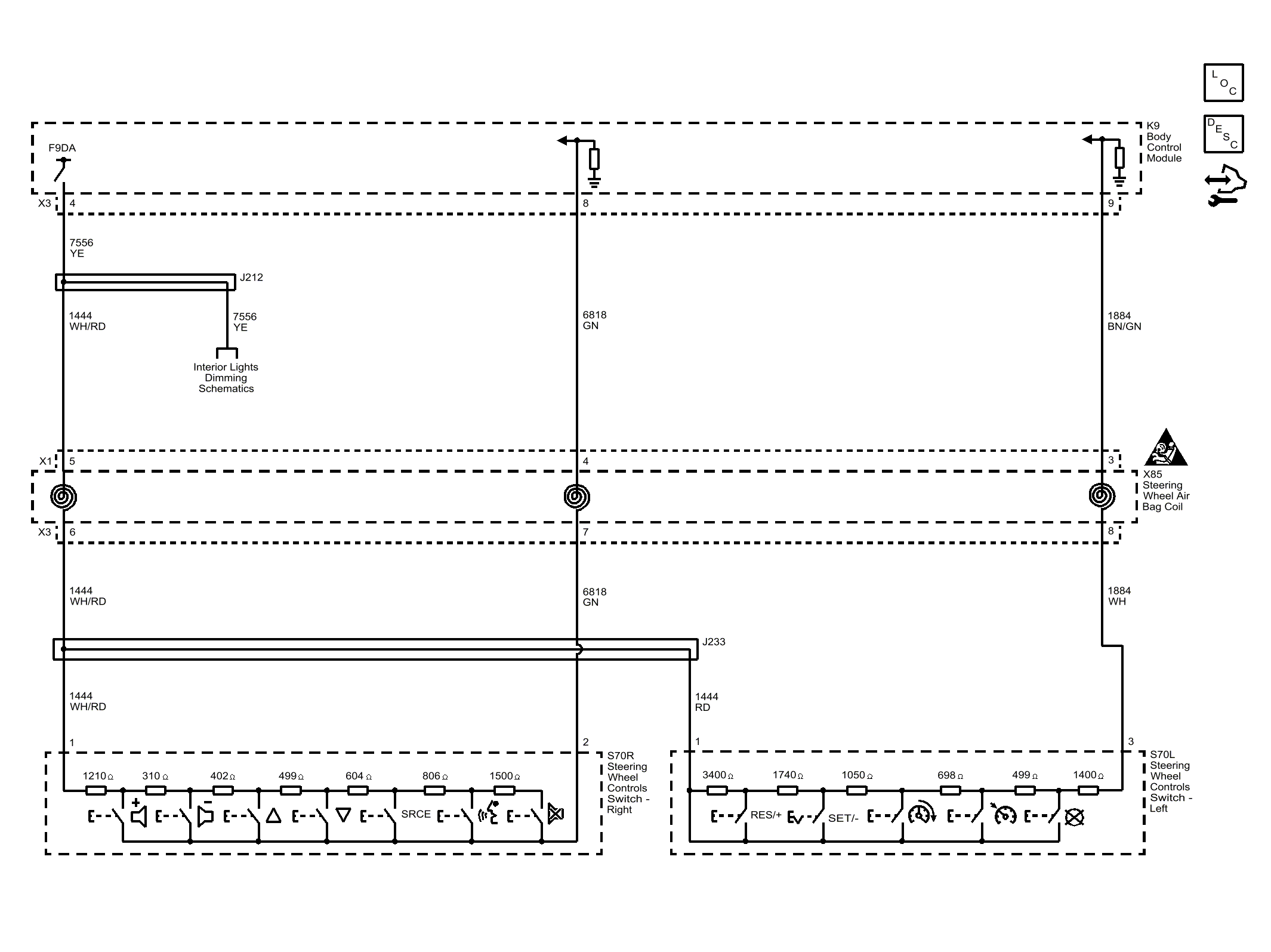

Fig 1: Steering Wheel Controls (Encore)
Courtesy of GENERAL MOTORS COMPANY
