Inside Rearview Mirror Electrochromic (Trax with DD8)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

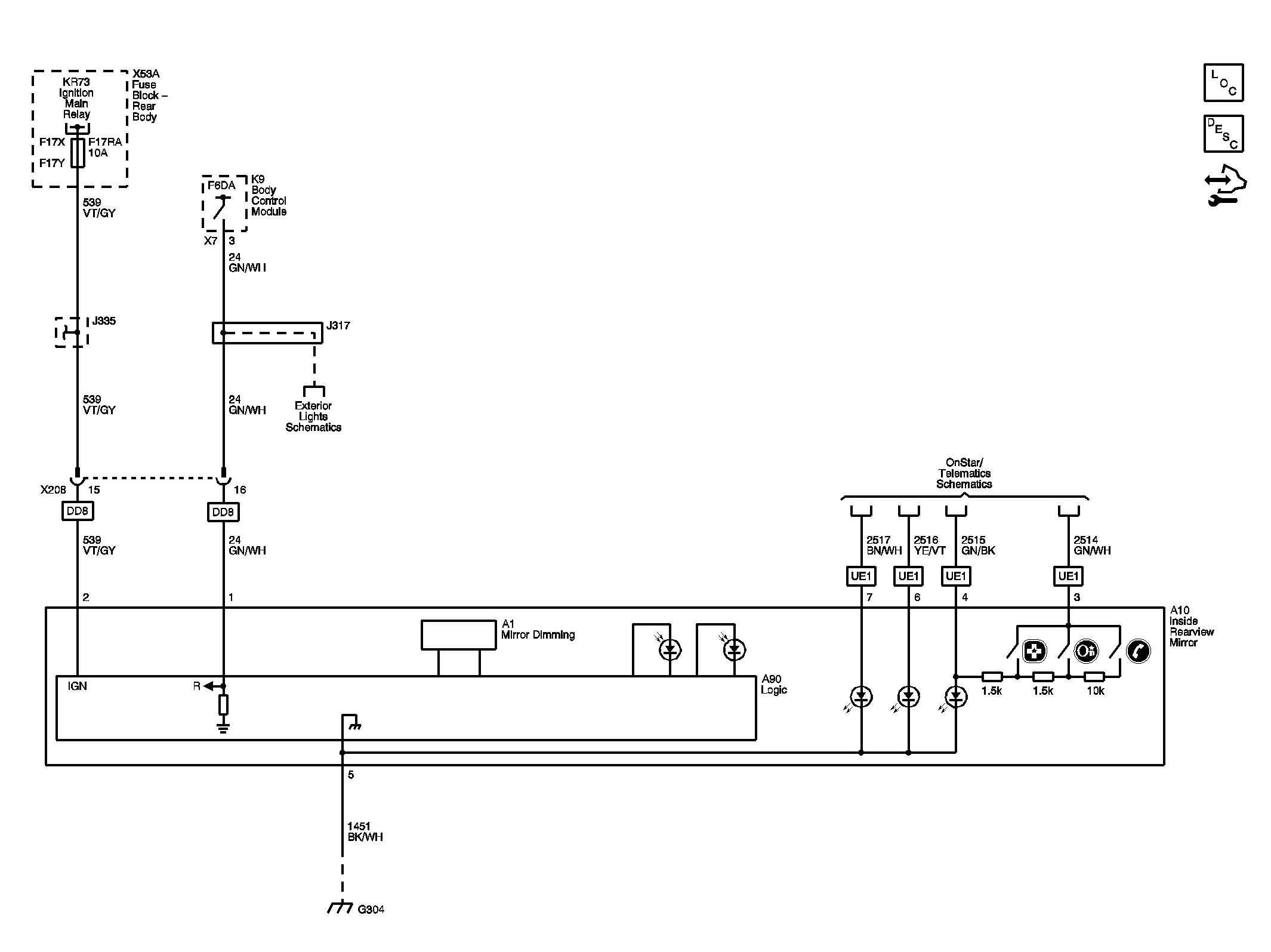

Fig 1: Inside Rearview Mirror Electrochromic (Trax with DD8)
GM3691164Courtesy of GENERAL MOTORS COMPANY
