Outside Rearview Mirror Housing Upper Cover Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

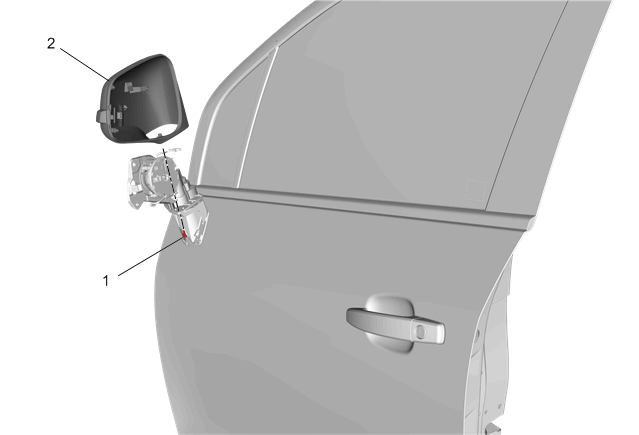

Fig 1: Outside Rearview Mirror Housing Upper Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the outside rear view mirror bracket covers. Refer to Outside Rearview Mirror Bracket Cover Replacement . Remove the outside rear view mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement .
1	Outside Rearview Mirror Housing Upper Cover Bolt CAUTION: Refer to Fastener Caution . Tighten 1.5 (13 lb in)
2	Outside Rearview Mirror Housing Upper Cover Procedure Disconnect the electrical connector if equipped with turn signal. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Remove the outside rear view mirror bracket covers. Refer to Outside Rearview Mirror Bracket Cover Replacement .
Remove the outside rear view mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement .

Outside Rearview Mirror Housing Upper Cover Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 (13 lb in)

Outside Rearview Mirror Housing Upper Cover

Procedure

Disconnect the electrical connector if equipped with turn signal.
Transfer components as necessary.
