Radio Windshield Side Garnish Molding Speaker Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the windshield side garnish molding. Refer to Windshield Garnish Molding Replacement (Trax) . |
|

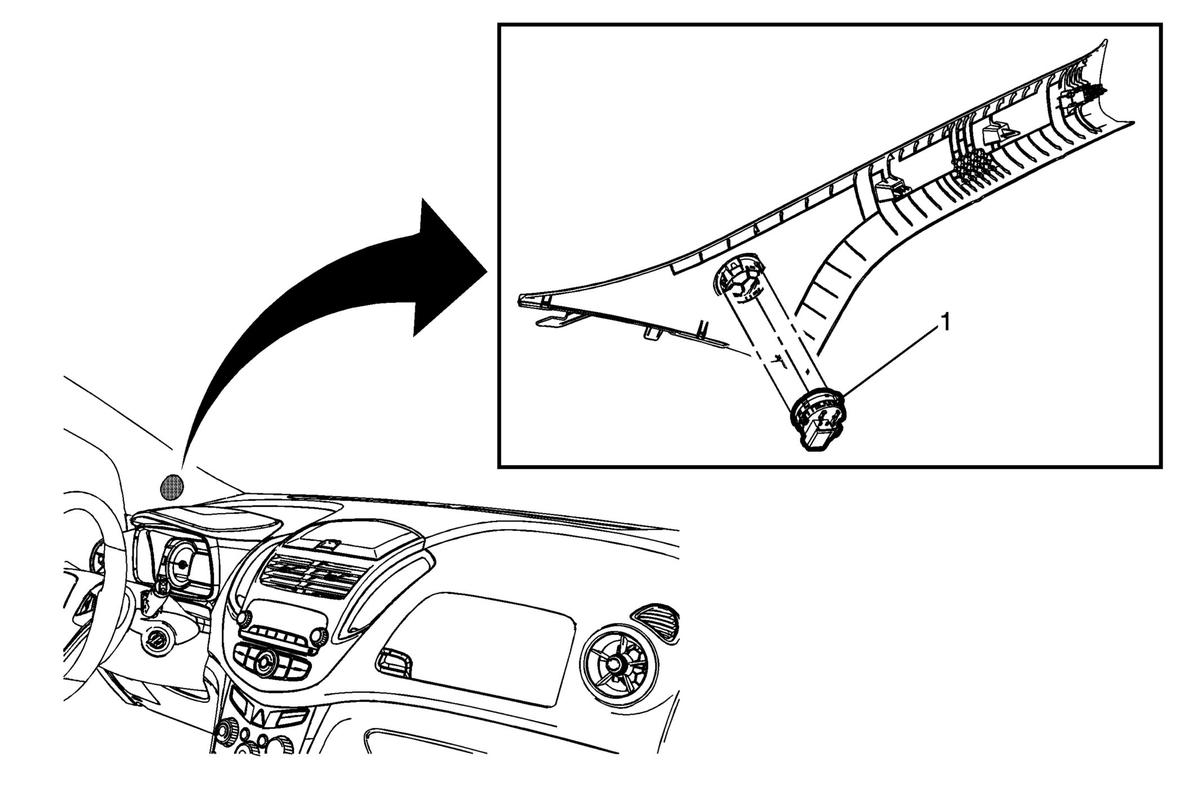

| 1 | Radio Windshield Side Garnish Molding Speaker Procedure Depress tabs to remove speaker. |
