Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear axle shaft. Refer to Rear Axle Shaft Replacement .

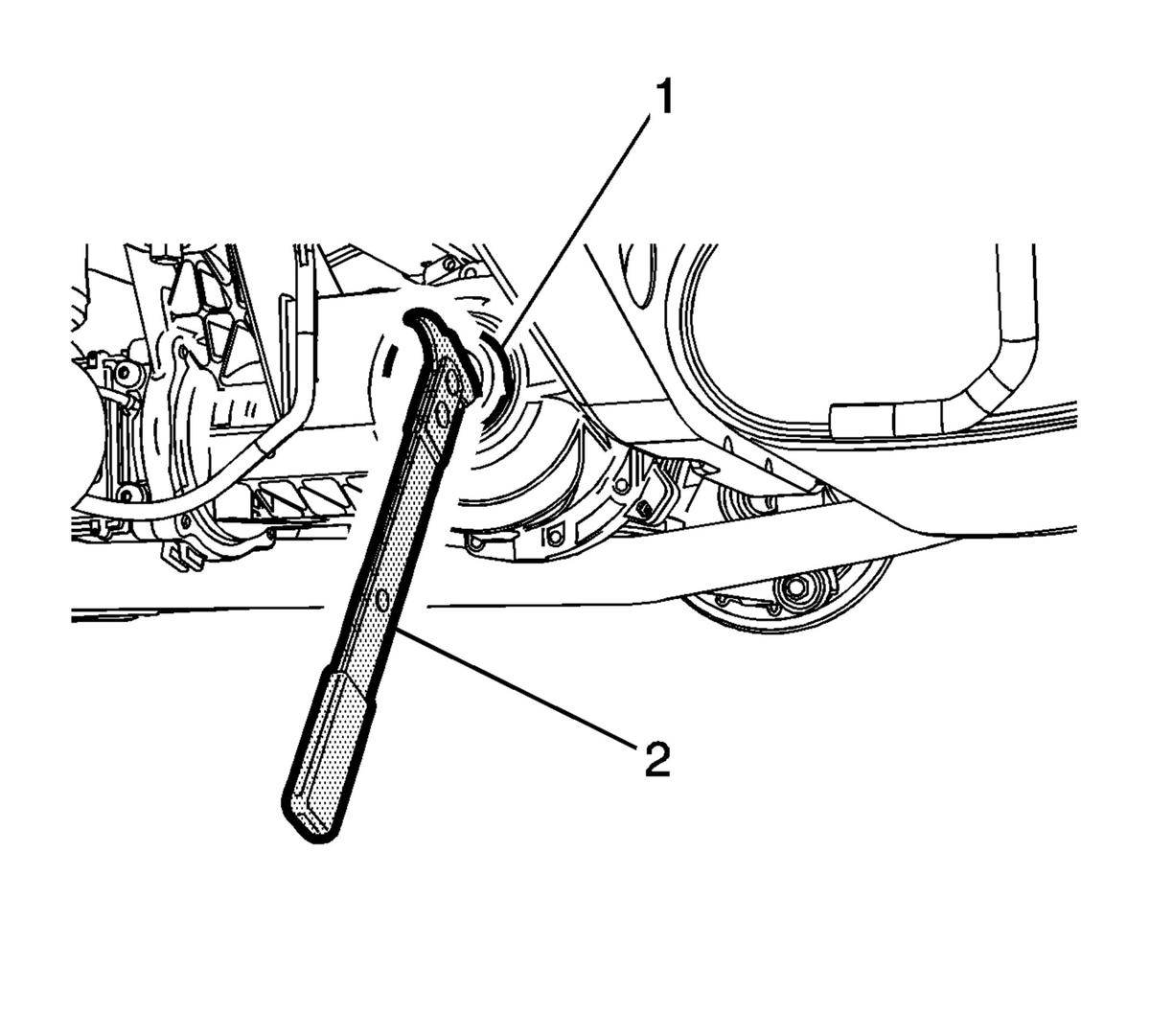

    3. Fig 1: Seal Removal Tool
    GM2770804Courtesy of GENERAL MOTORS COMPANY
  3. Using the EN-45000  seal remover (2), remove the rear axle shaft seal (1).
