Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

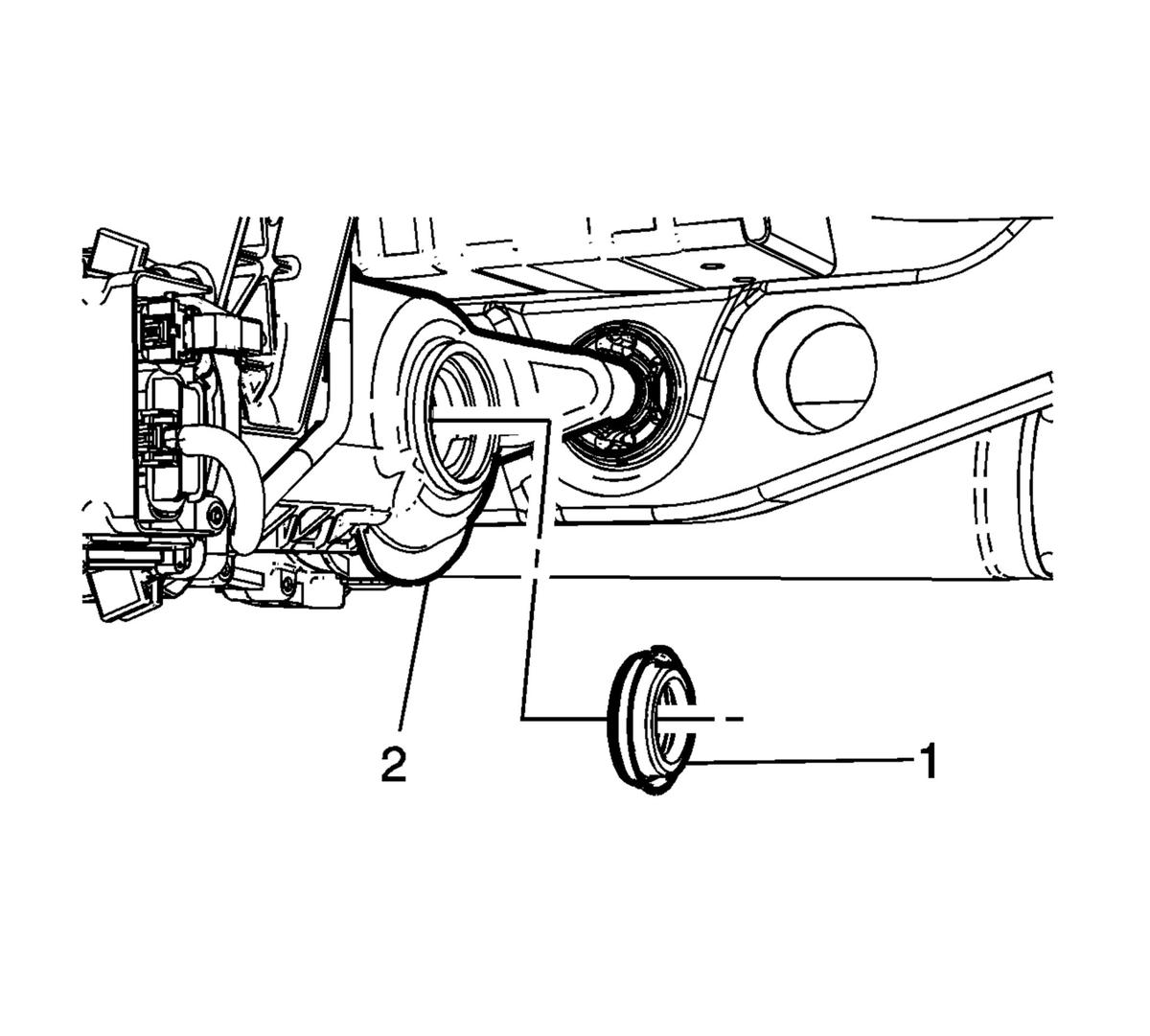

    Fig 1: Rear Axle Seal
    GM2770809Courtesy of GENERAL MOTORS COMPANY
  1. Position the rear axle seal (1) in the rear differential carrier (2).

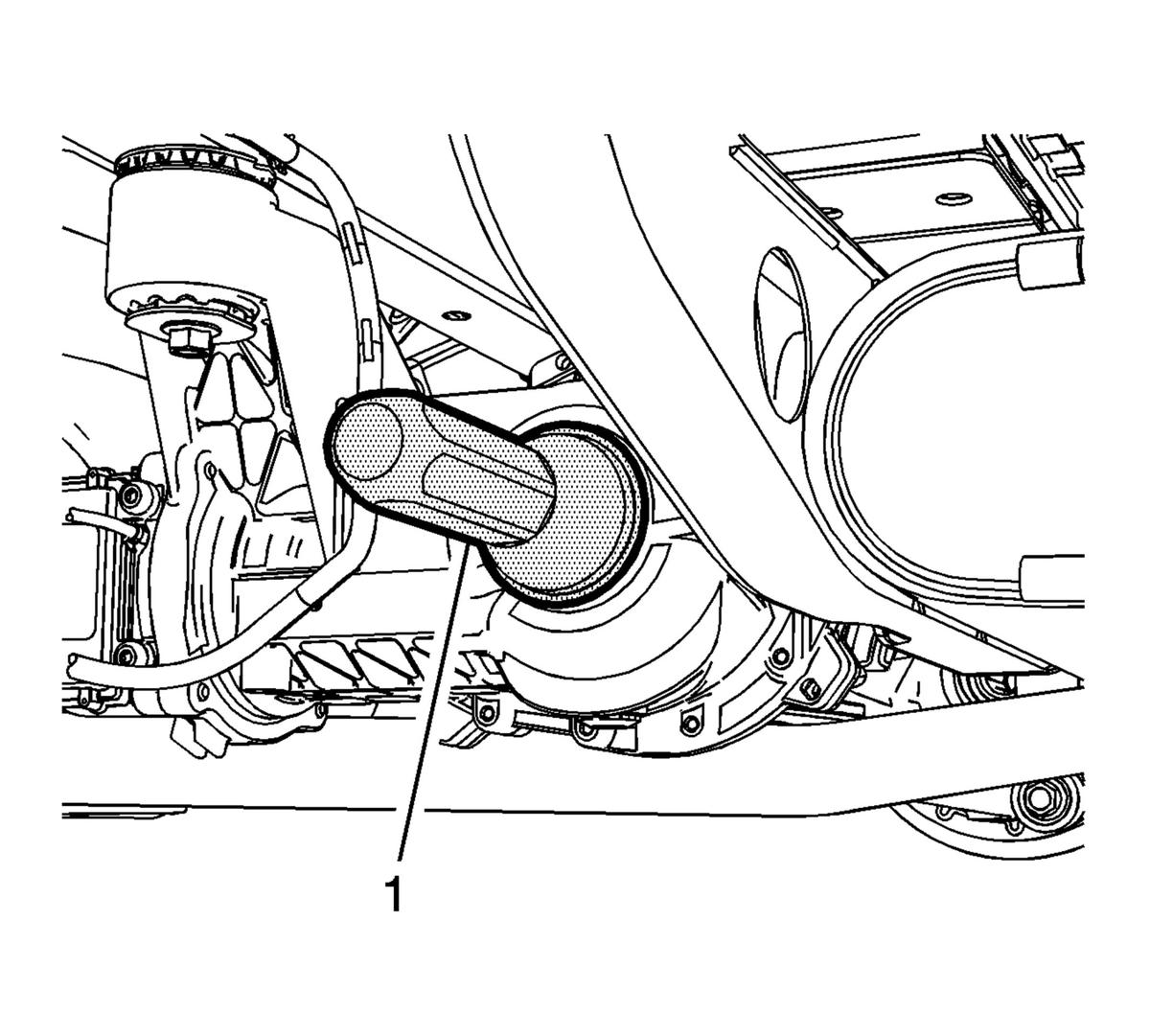

    2. Fig 2: Rear Axle Seal And Special Tool
    GM2770824Courtesy of GENERAL MOTORS COMPANY
  2. Using the J-44809  installer (1), install the rear axle seal.
  3. Install the rear axle shaft. Refer to Rear Axle Shaft Replacement .
  4. Remove the support and lower the vehicle.
