Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the wheel drive shaft. Refer to Rear Wheel Drive Shaft Replacement .

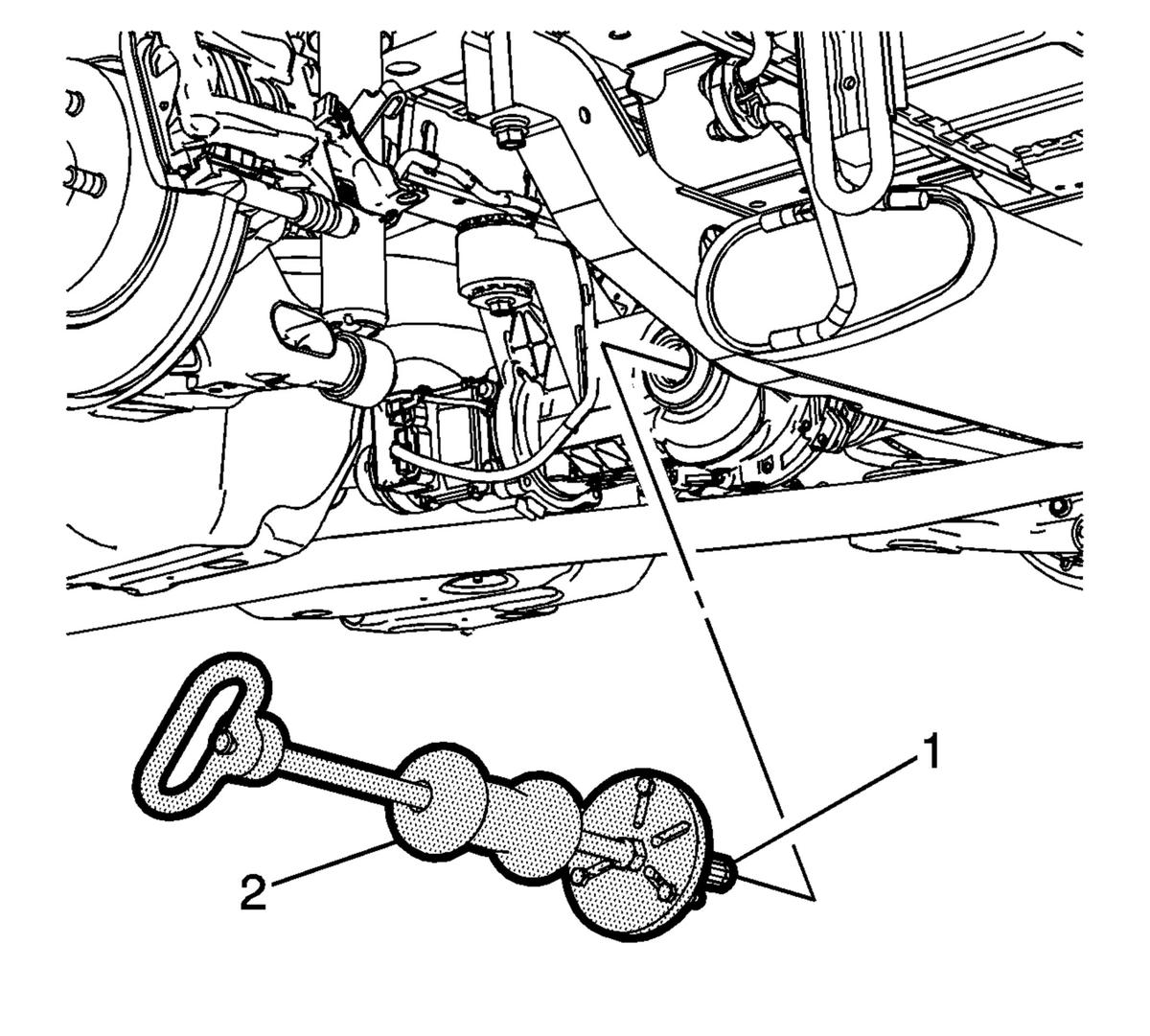

Fig 1: Special Tool

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Remove and discard the retaining ring from the rear axle. Replace with NEW only.

Using the J-2619-01 hammer and the J-45019 remover (2), remove the rear axle shaft (1).
Remove the J-2619-01 hammer and the J-45019 remover (2) from the rear axle shaft (1).
