Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

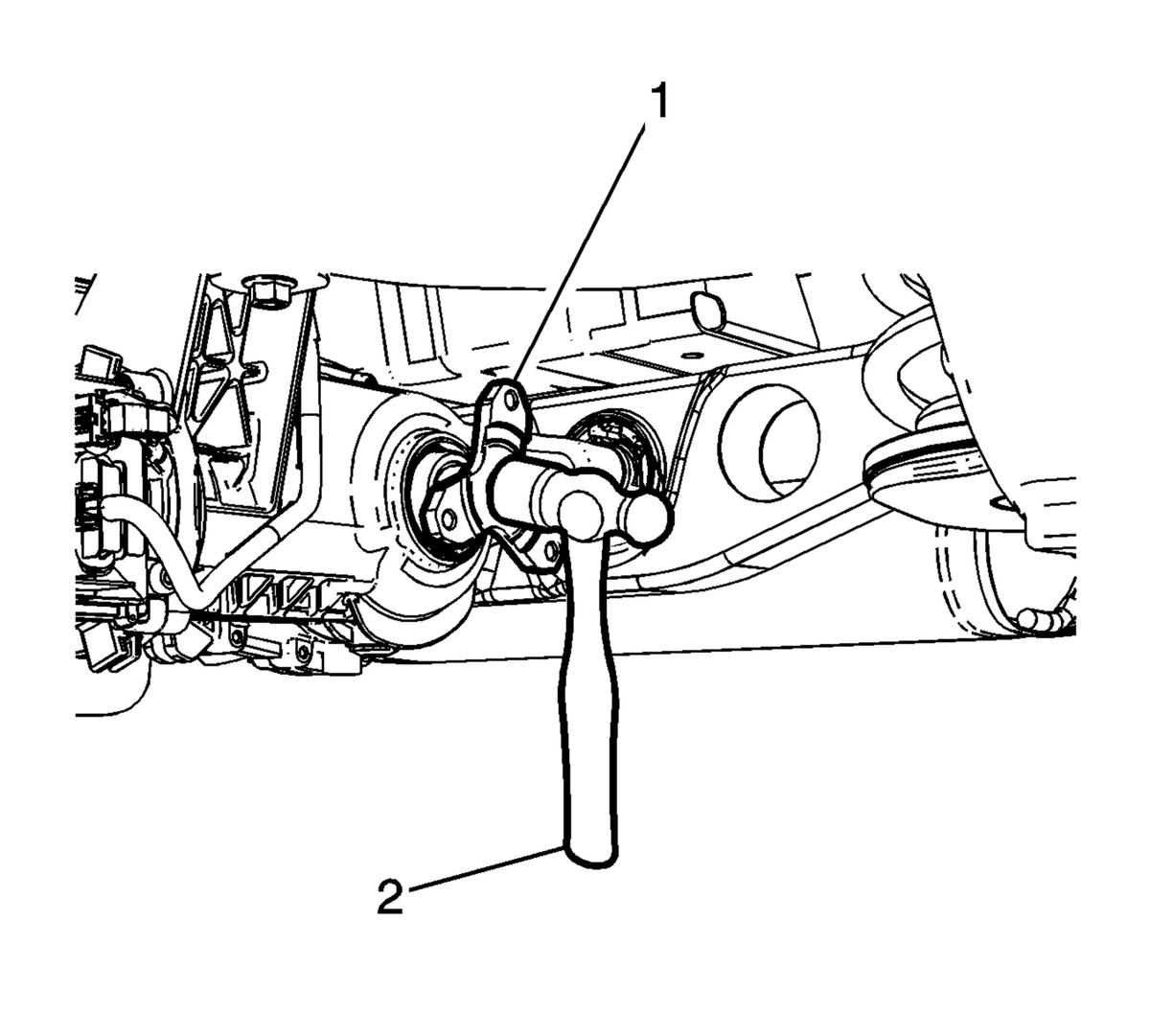

    Fig 1: Retaining Ring
    GM2770965Courtesy of GENERAL MOTORS COMPANY
  1. Position the rear axle with the NEW retaining ring in the rear differential.
  2. Using a suitable hammer, lightly tap the rear axle (1) until it locks into place.
  3. Install the rear wheel drive shaft. Refer to Rear Wheel Drive Shaft Replacement .
  4. Remove the support and lower the vehicle.
