Differential Oil Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

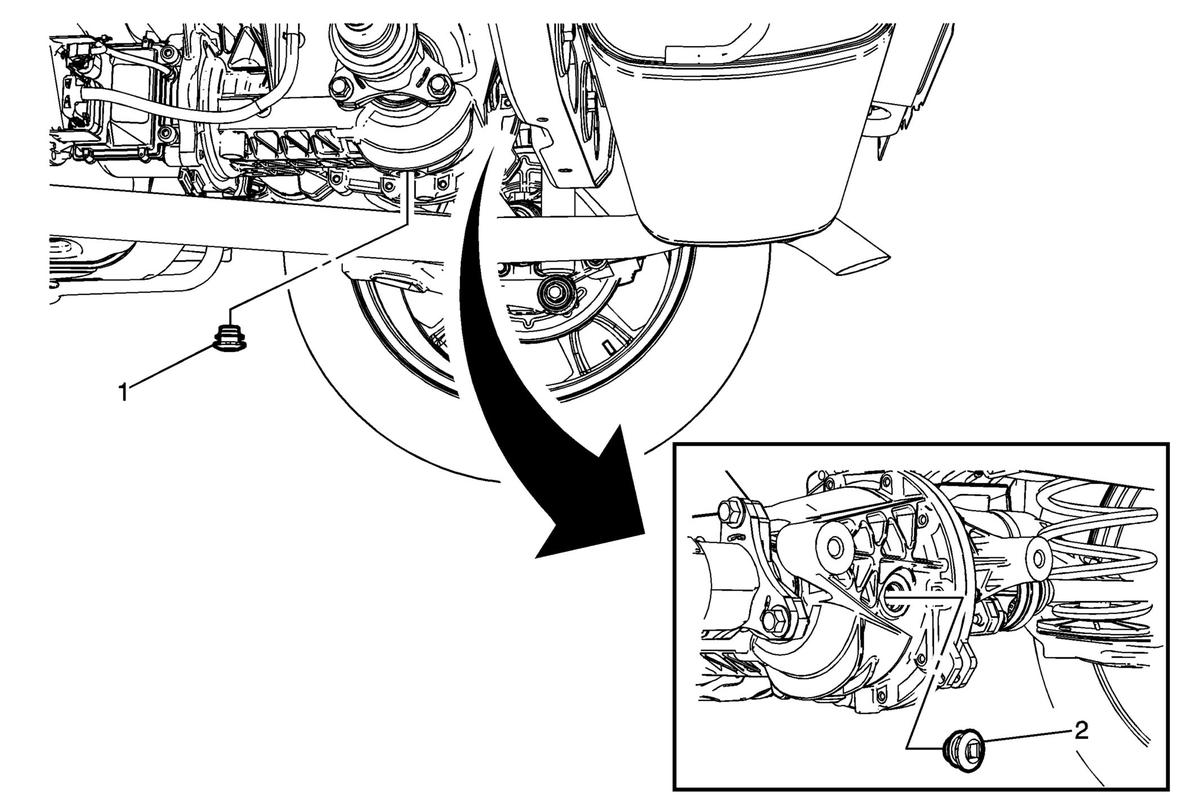

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Rear Differential Drain Plug
CAUTION:
Refer to Fastener Caution . Tighten 39 N.m (29 lb ft) |
| 2 | Rear Differential Fill Plug Procedure Fill the rear differential with the proper fluid. Refer to Approximate Fluid Capacities . Tighten 39 N.m (29 lb ft) |
