Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. NOTE:

    Support the propeller shaft with mechanics wire.

  2. Remove the propeller shaft from the differential carrier and relocate to the side. Refer to Two-Piece Propeller Shaft Replacement
  3. Remove the differential clutch control module. Refer to Rear Wheel Drive Module Differential Clutch Control Module Replacement
    4. Fig 1: Differential Clutch Mounting Bolts
    GM2788766Courtesy of GENERAL MOTORS COMPANY

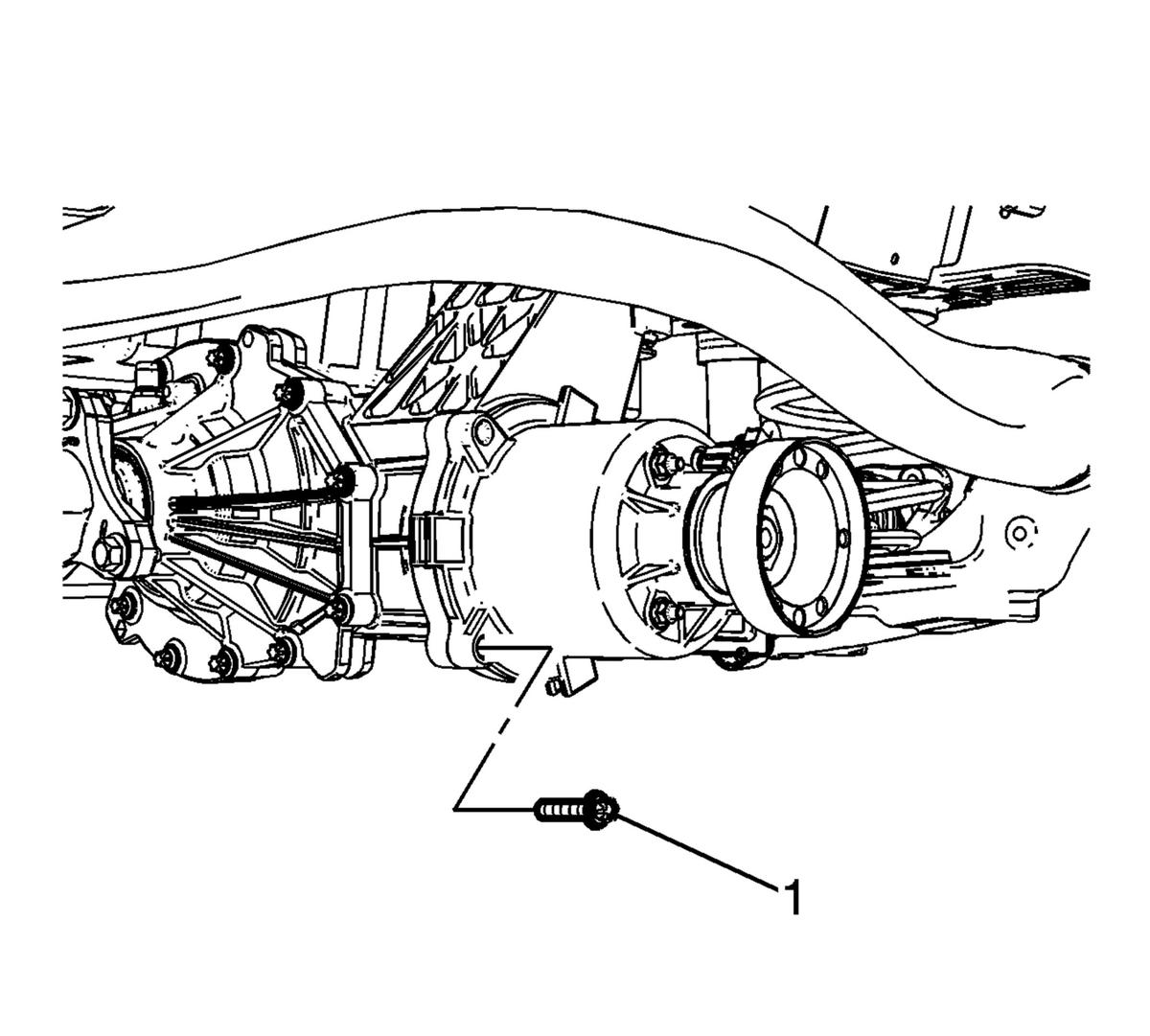

  4. Remove the 4 differential clutch mounting bolts (1).
    5. Fig 2: Separating Differential Clutch
    GM2788772Courtesy of GENERAL MOTORS COMPANY

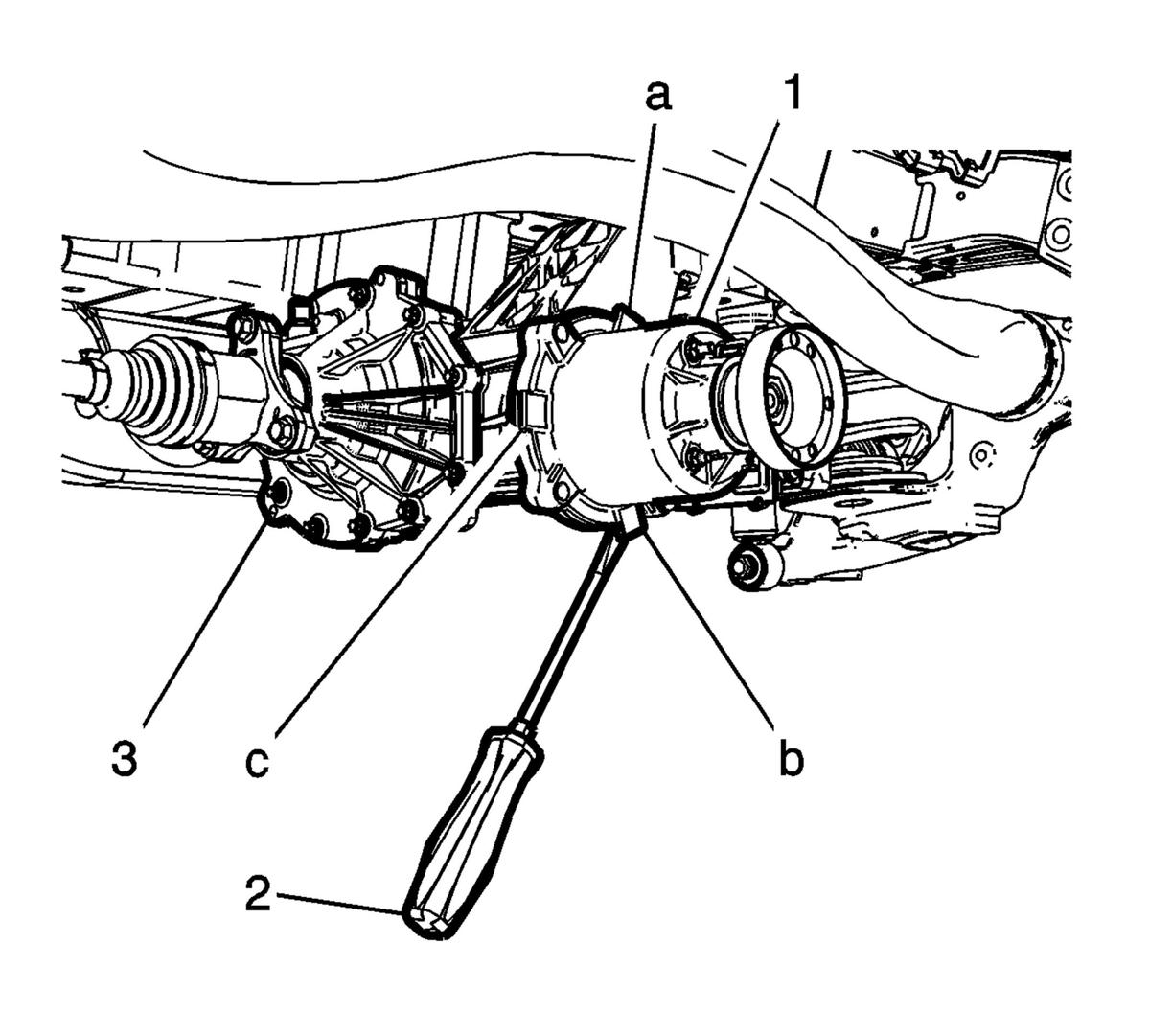

  5. Using the screw driver (2) in the 3 locations a, b and c to separate the differential clutch (1) from the differential carrier (3).
    6. Fig 3: Differential Clutch And Differential Carrier
    GM2788813Courtesy of GENERAL MOTORS COMPANY

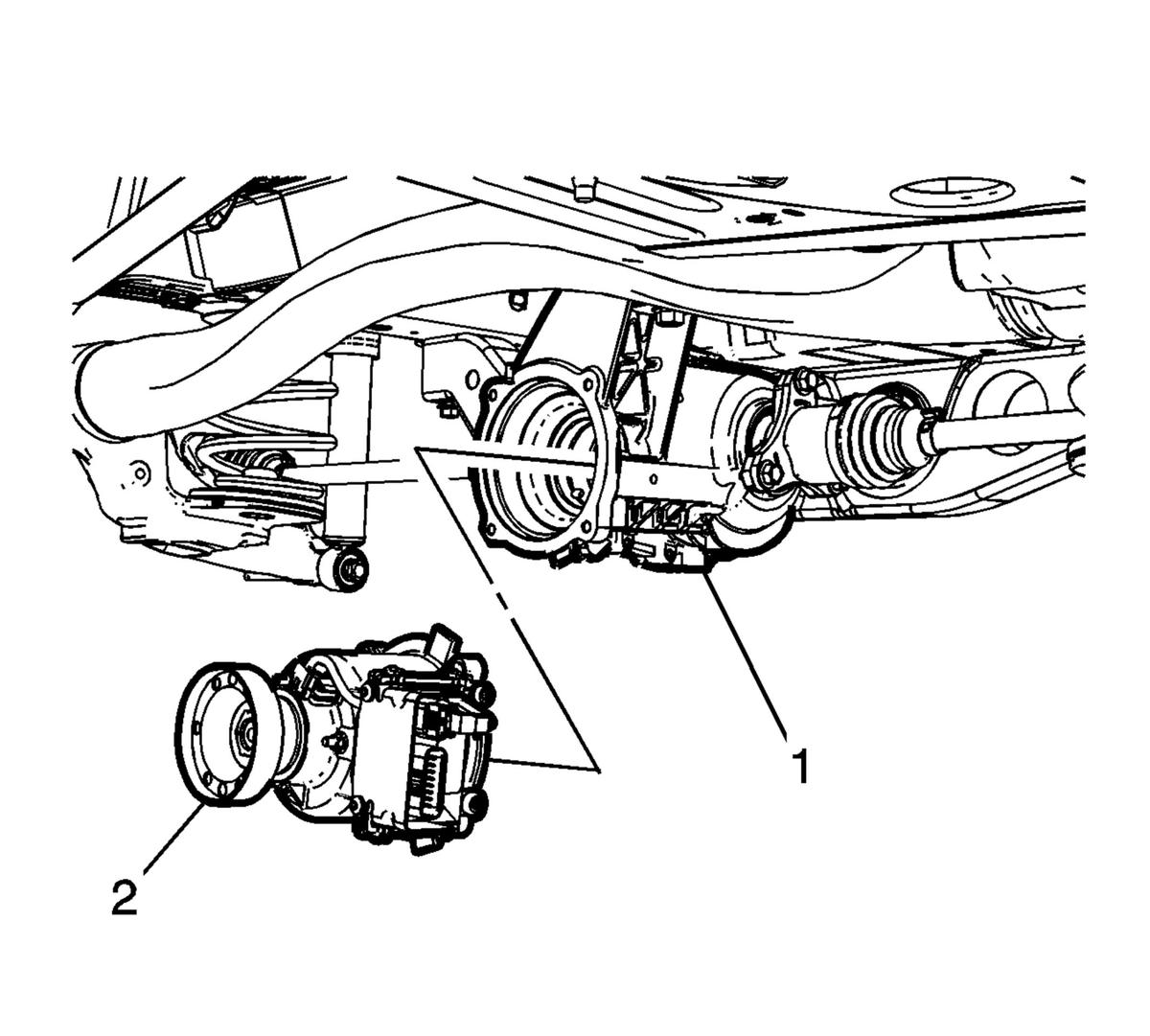

  6. Remove the differential clutch (2) from the differential carrier (1).
    7. Fig 4: Differential Clutch O-Ring
    GM2788849Courtesy of GENERAL MOTORS COMPANY

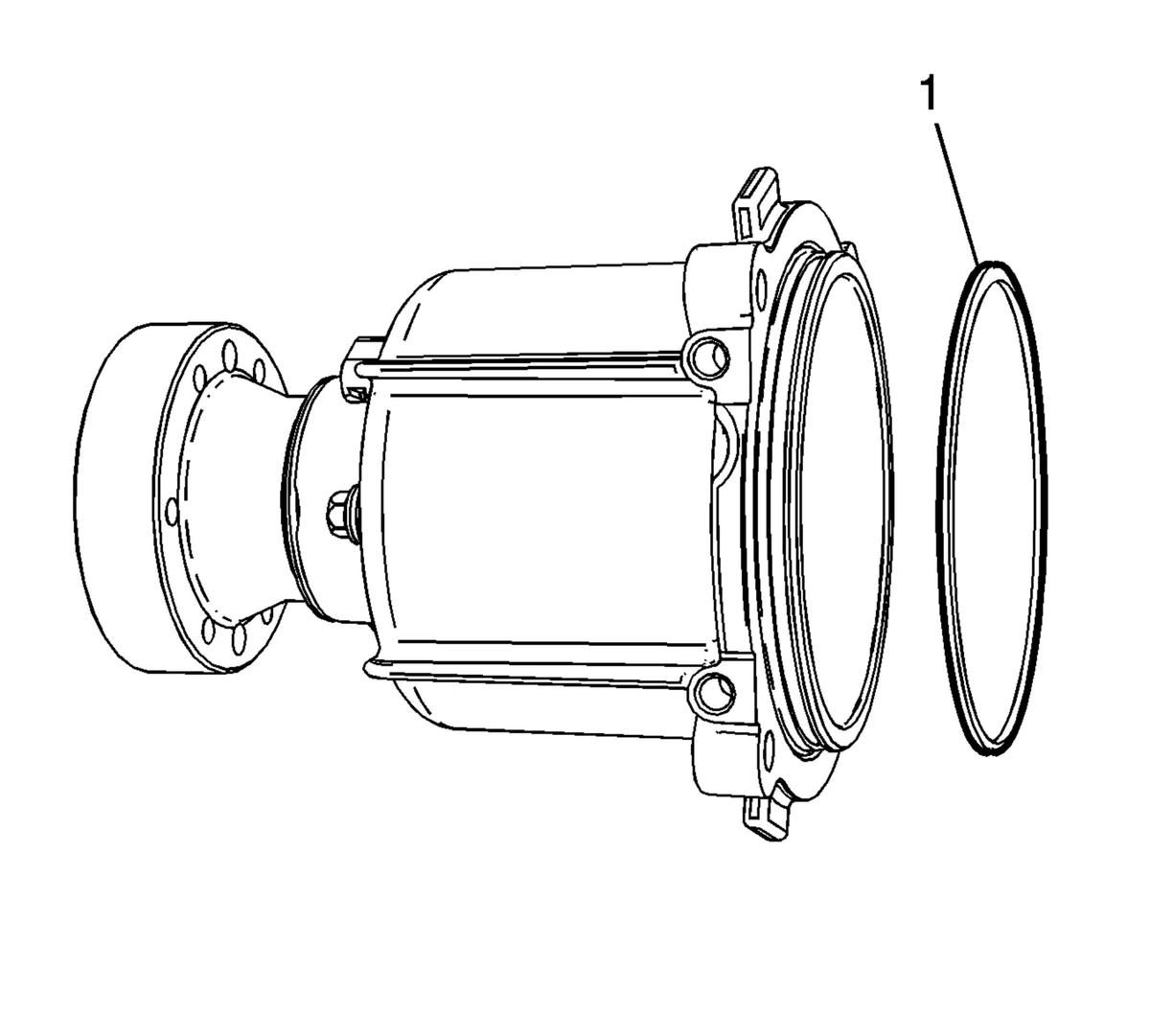

  7. Remove and discard the differential clutch O-ring (1).
