Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Differential Clutch O-Ring

Courtesy of GENERAL MOTORS COMPANY

Install the NEW differential clutch O-ring (1).

Fig 2: Differential Clutch And Differential Carrier

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Ensure that the rear wheel drive module differential clutch control module is on the left side of the differential carrier.

Position the differential clutch (2) on the differential carrier (1).

Fig 3: Differential Clutch Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the 4 differential clutch mounting bolts (1).

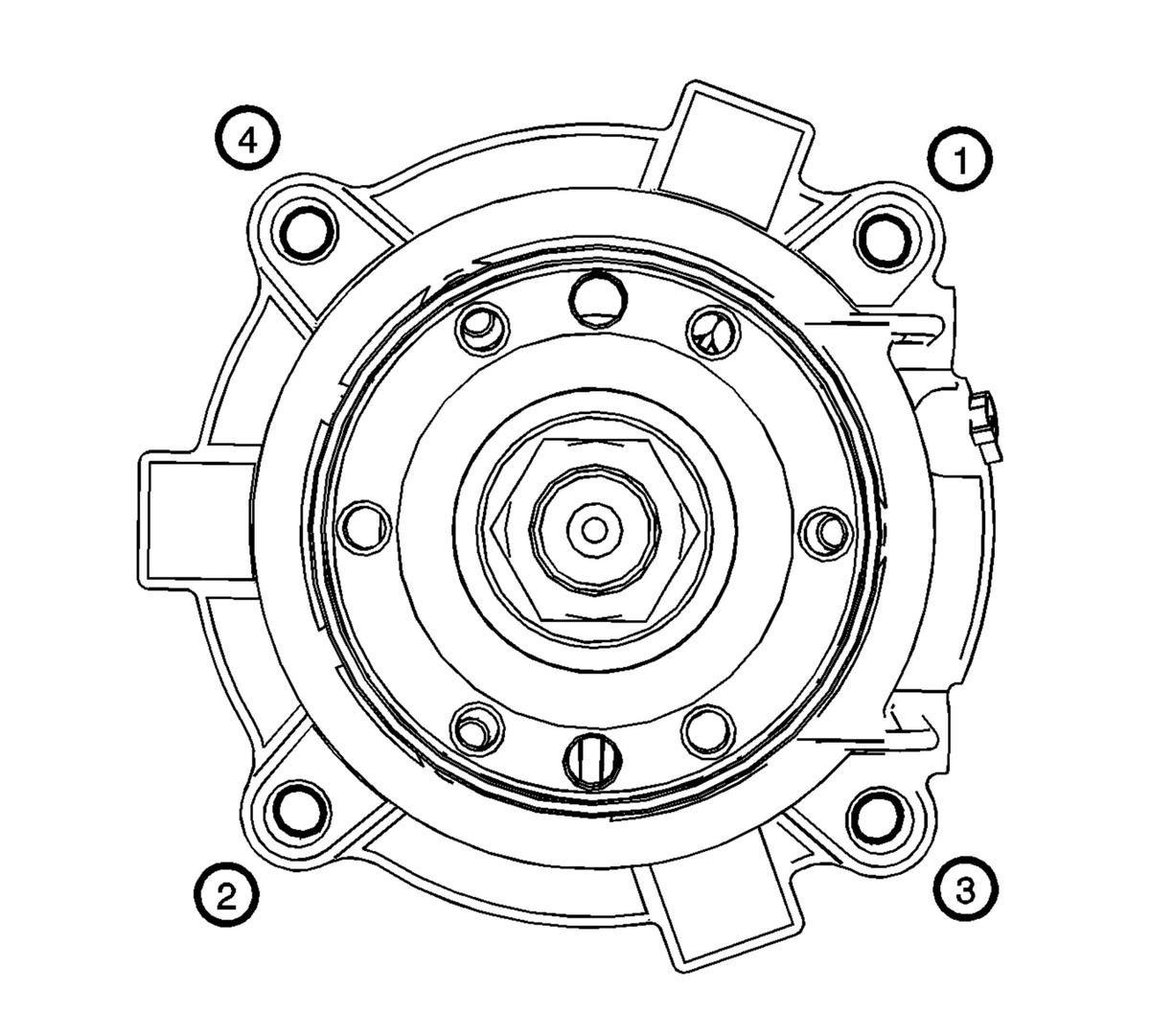

Fig 4: Differential Clutch Bolt Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

Tighten the differential clutch bolts in a cross pattern (1), (2), (3) and (4).

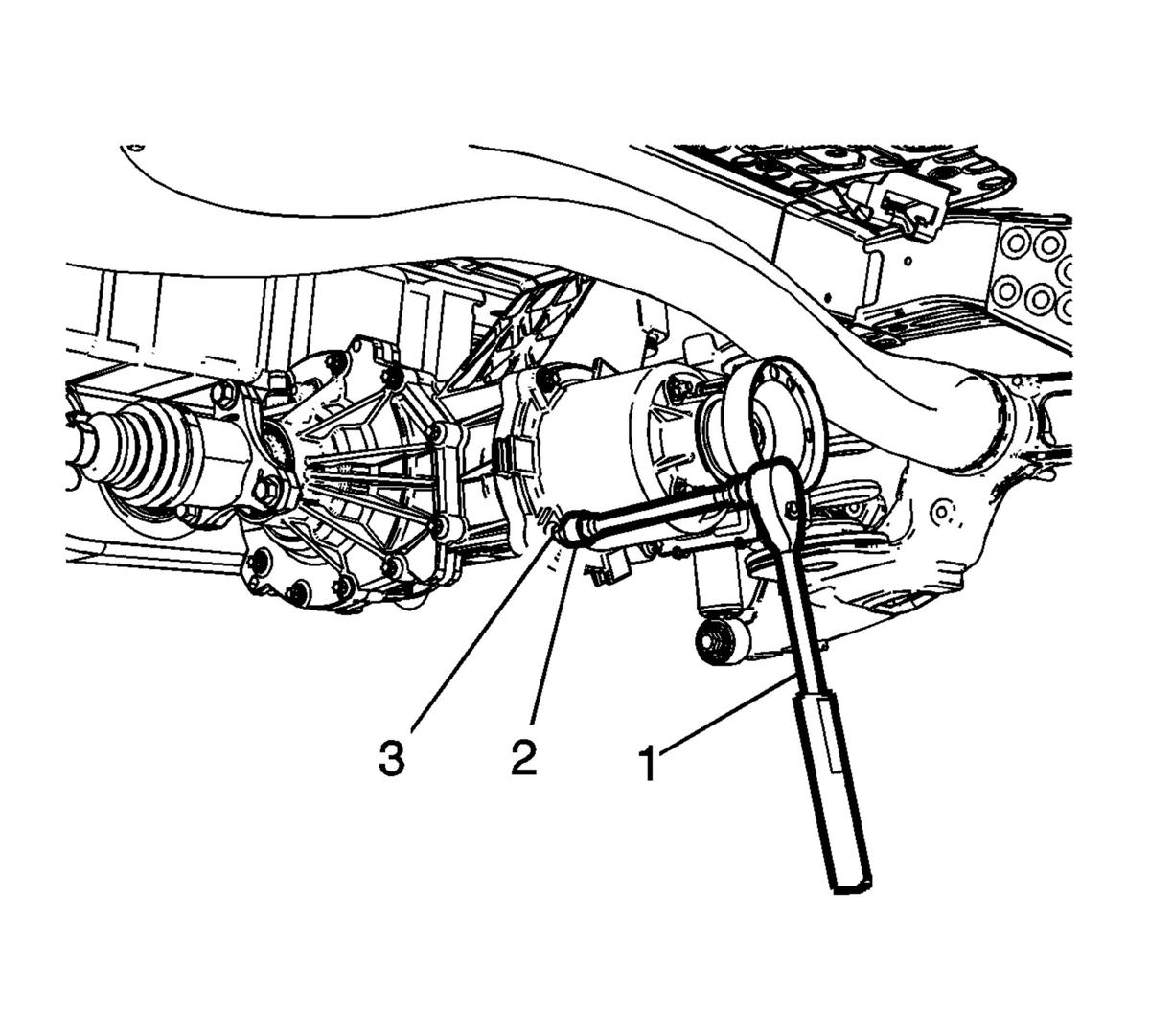

Fig 5: Tightening Differential Clutch Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Using the proper size Torx™ bit and extension (2) and torque wrench (1), tighten the 4 differential clutch bolts (3) to 40 N.m (30 lb ft).
Install the differential clutch control module. Refer to Rear Wheel Drive Module Differential Clutch Control Module Replacement
Install the propeller shaft to the differential carrier. Refer to Two-Piece Propeller Shaft Replacement
Remove the support and lower the vehicle.
