Differential Carrier Bushing Replacement - Rear

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

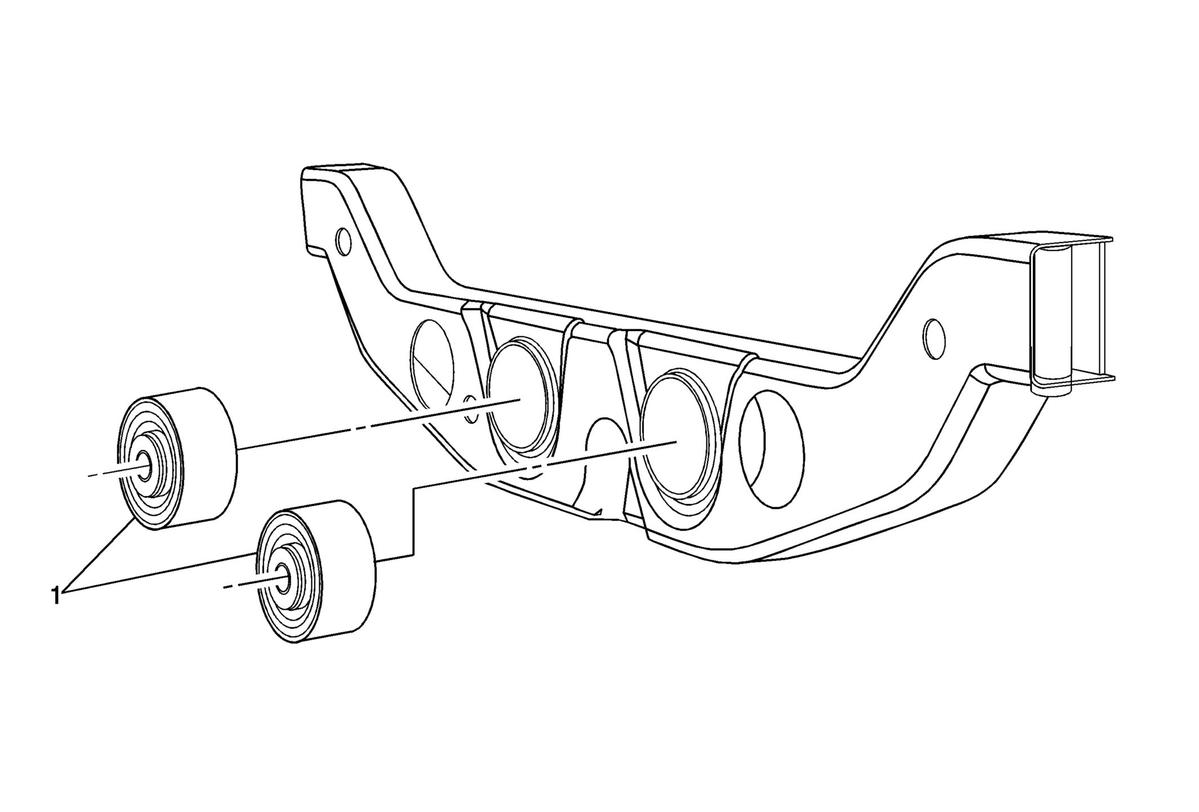

Fig 1: Differential Carrier Bushing - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear crossmember. Refer to Rear Crossmember Replacement (AWD) .
1	Differential Carrier Bushing - Rear (Qty: 2) Procedure Place the rear crossmember in a vise. Using the CH-51036 remover/installer , remove the rear differential carrier bushing from the rear crossmember. Remove any residue from the old bushing before installing the new rear differential bushing. Position the rear differential bushing in the rear crossmember. Using the CH-51036 remover/installer , Install the rear differential carrier bushing. Special Tools CH-51036 RDM crossmember bushing remover/installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear crossmember. Refer to Rear Crossmember Replacement (AWD) .

Differential Carrier Bushing - Rear (Qty: 2)

Procedure

Place the rear crossmember in a vise.
Using the CH-51036 remover/installer , remove the rear differential carrier bushing from the rear crossmember.
Remove any residue from the old bushing before installing the new rear differential bushing.
Position the rear differential bushing in the rear crossmember.
Using the CH-51036 remover/installer , Install the rear differential carrier bushing.

Special Tools
CH-51036 RDM crossmember bushing remover/installer
For equivalent regional tools, refer to Special Tools .
