Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Wheel Bearing and Hub Assembly - Remove - Front Wheel Bearing and Hub Replacement

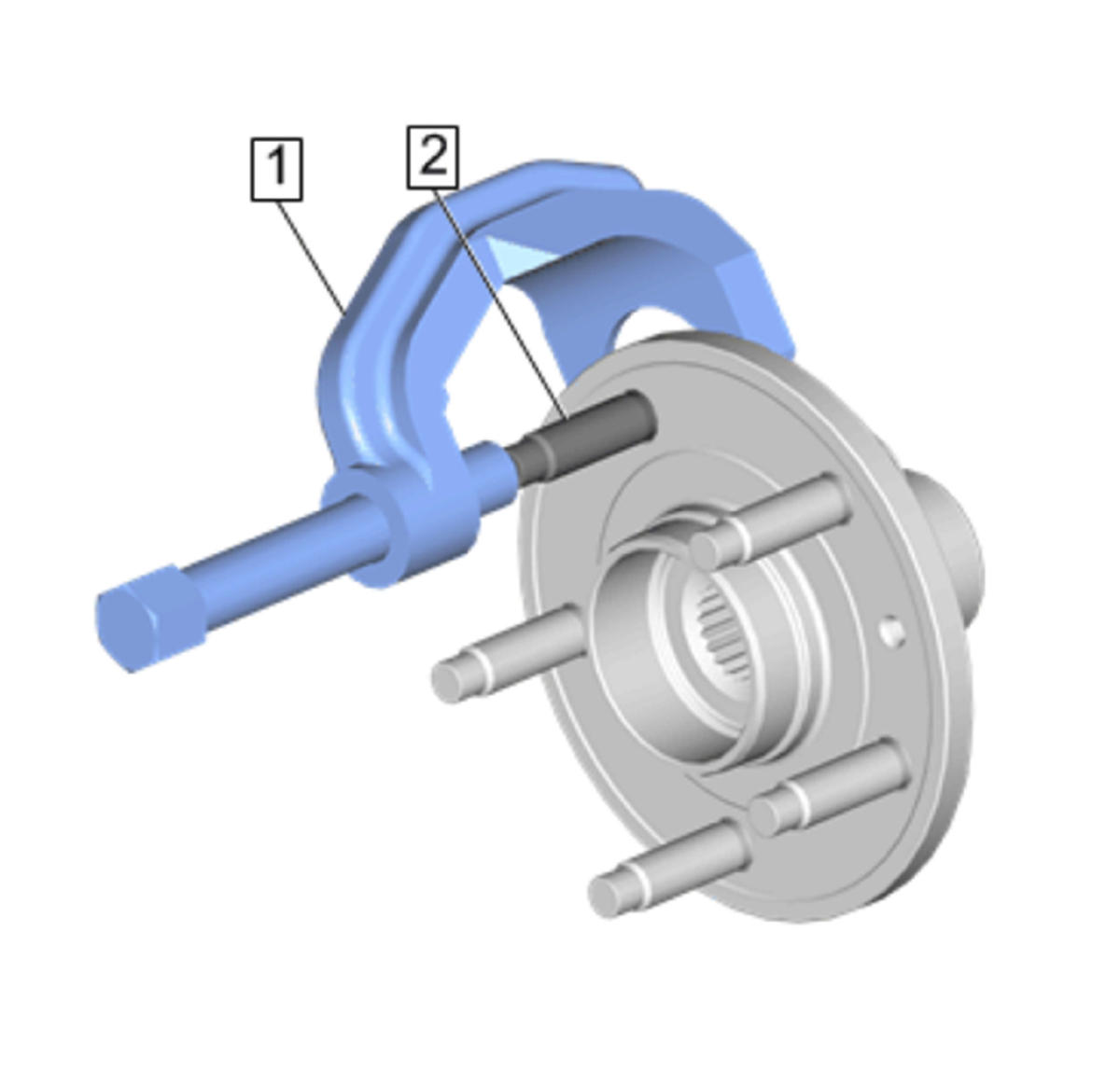

    2. Fig 1: Removing Wheel Stud
    GM4368502Courtesy of GENERAL MOTORS COMPANY
  2. Use the CH-43631  separator (1) to remove the wheel stud (2) from the flange on the hub assembly.

    DISCARD the stud.
