Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

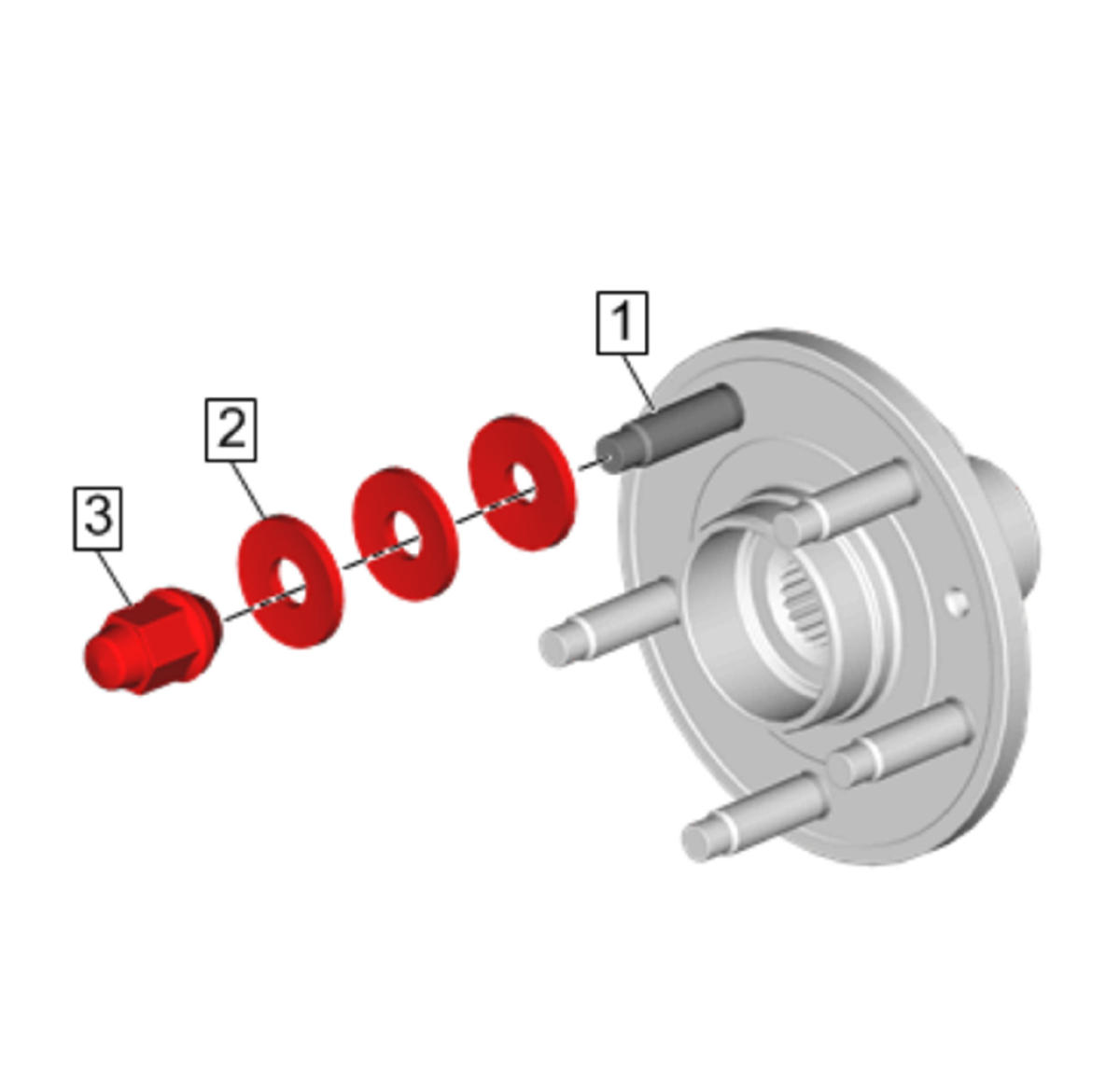

- Position the NEW wheel stud (1) in the flange on the hub assembly.
- Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
- Use a suitable tool to prevent the flange on the hub assembly from rotating.
- Tighten the wheel nut until the wheel stud is firmly seated.
- Remove the wheel nut and flat washers.
- Front Wheel Bearing and Hub Assembly - Install Front Wheel Bearing and Hub Replacement
