Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Steering Knuckle Replacement - Remove
Position the steering knuckle in a suitable vise.

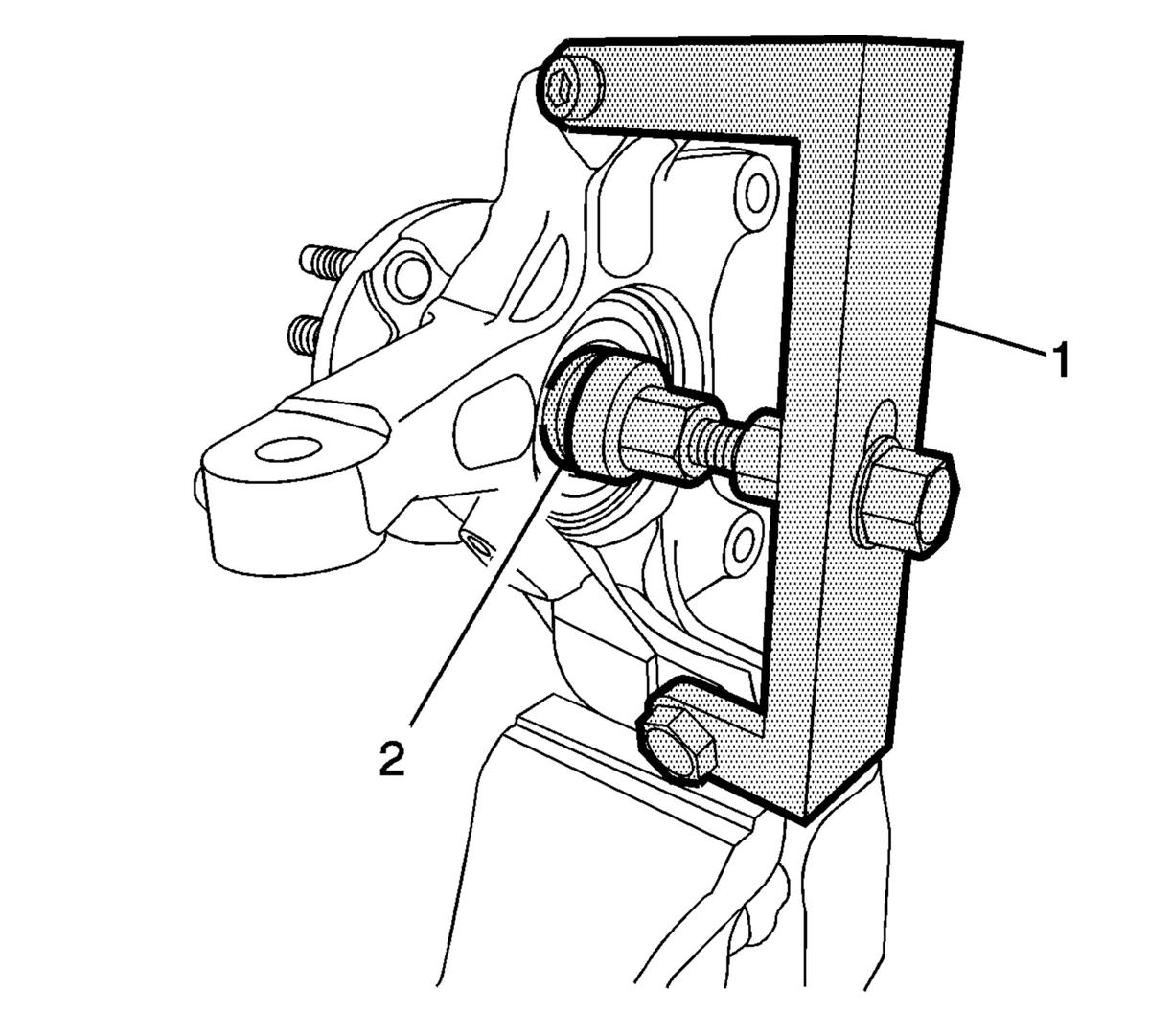

Fig 1: Steering Knuckle Assembly & Wheel Hub/Bearing Remover Kit

Courtesy of GENERAL MOTORS COMPANY

Position the CH-50559-1 bridge assembly (1) and the CH-50559-2 removal/installation adapter (2) on the steering knuckle.
Use the CH-50559-1 bridge assembly (1) and the CH-50559-2 removal/installation adapter (2) to separate the front wheel bearing from the hub assembly.

Fig 2: Wheel Hub/Bearing Removal/Installation Bridge Assembly And Adapter

Courtesy of GENERAL MOTORS COMPANY

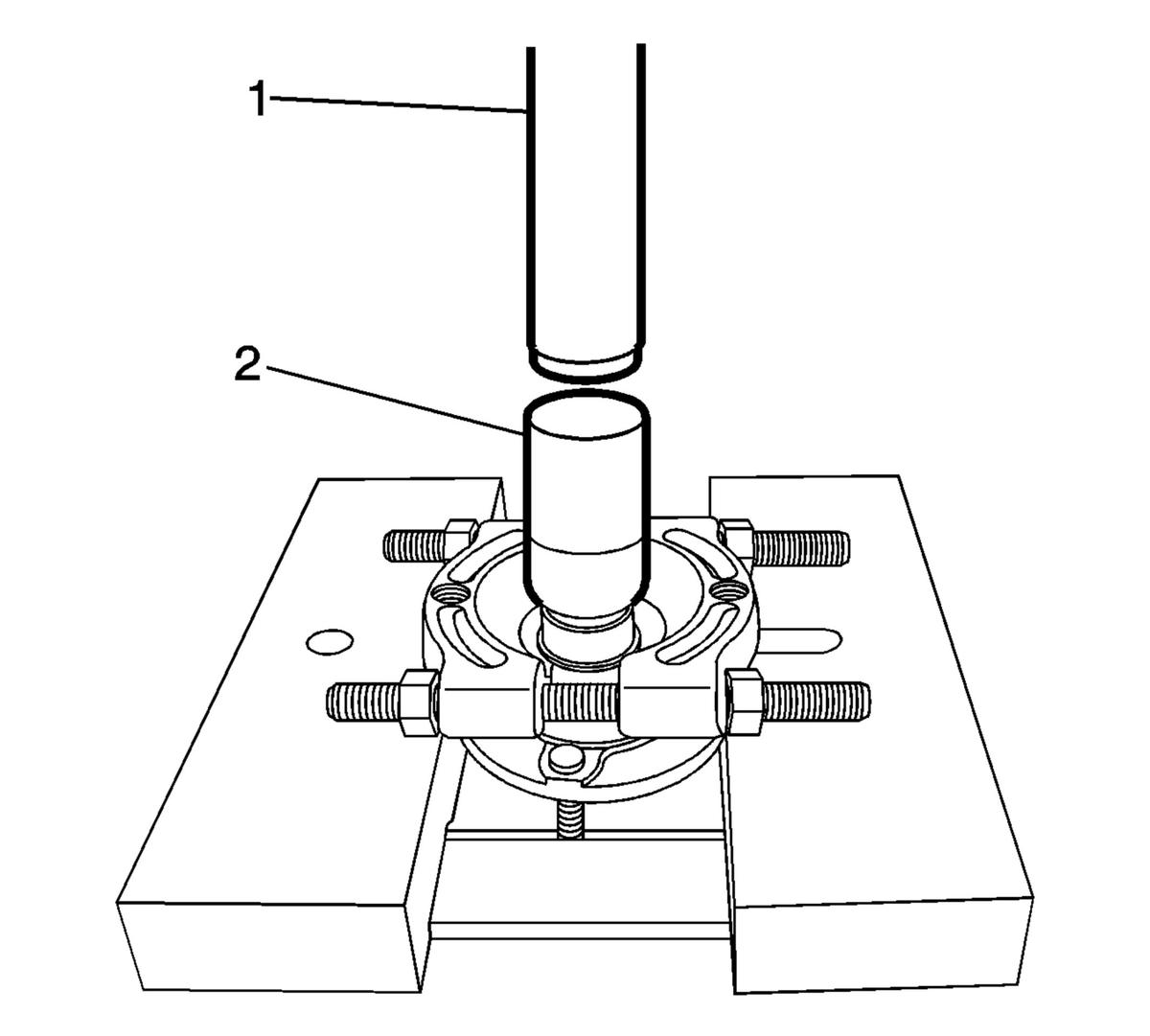

If the front wheel bearing inner race is removed with the front wheel hub, use a hydraulic press (1) and appropriate adaptor (2) to remove the inner race from the wheel hub.

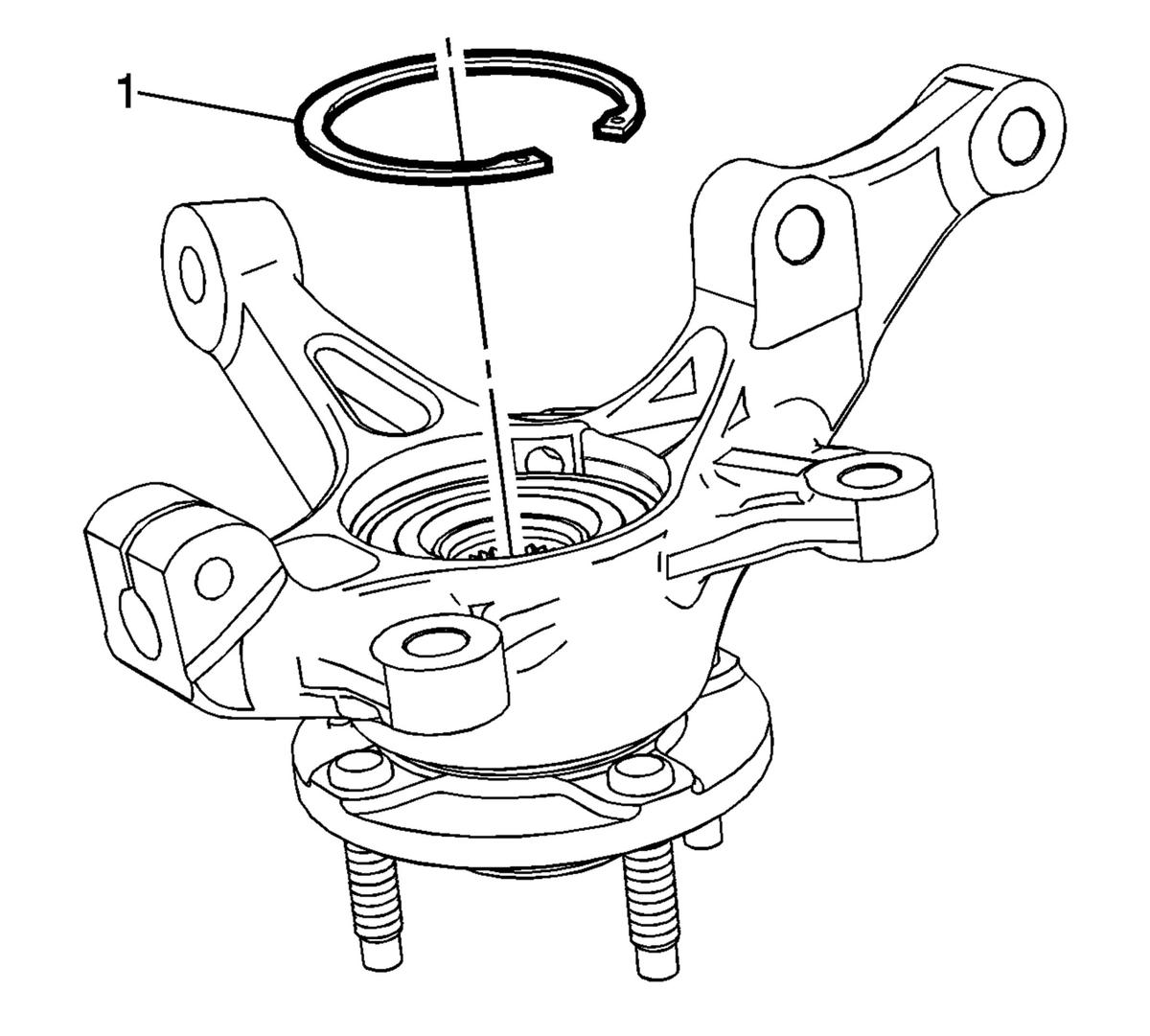

Fig 3: Steering Knuckle Retaining Ring

Courtesy of GENERAL MOTORS COMPANY

Remove the front wheel bearing retaining ring (1) from the steering knuckle.

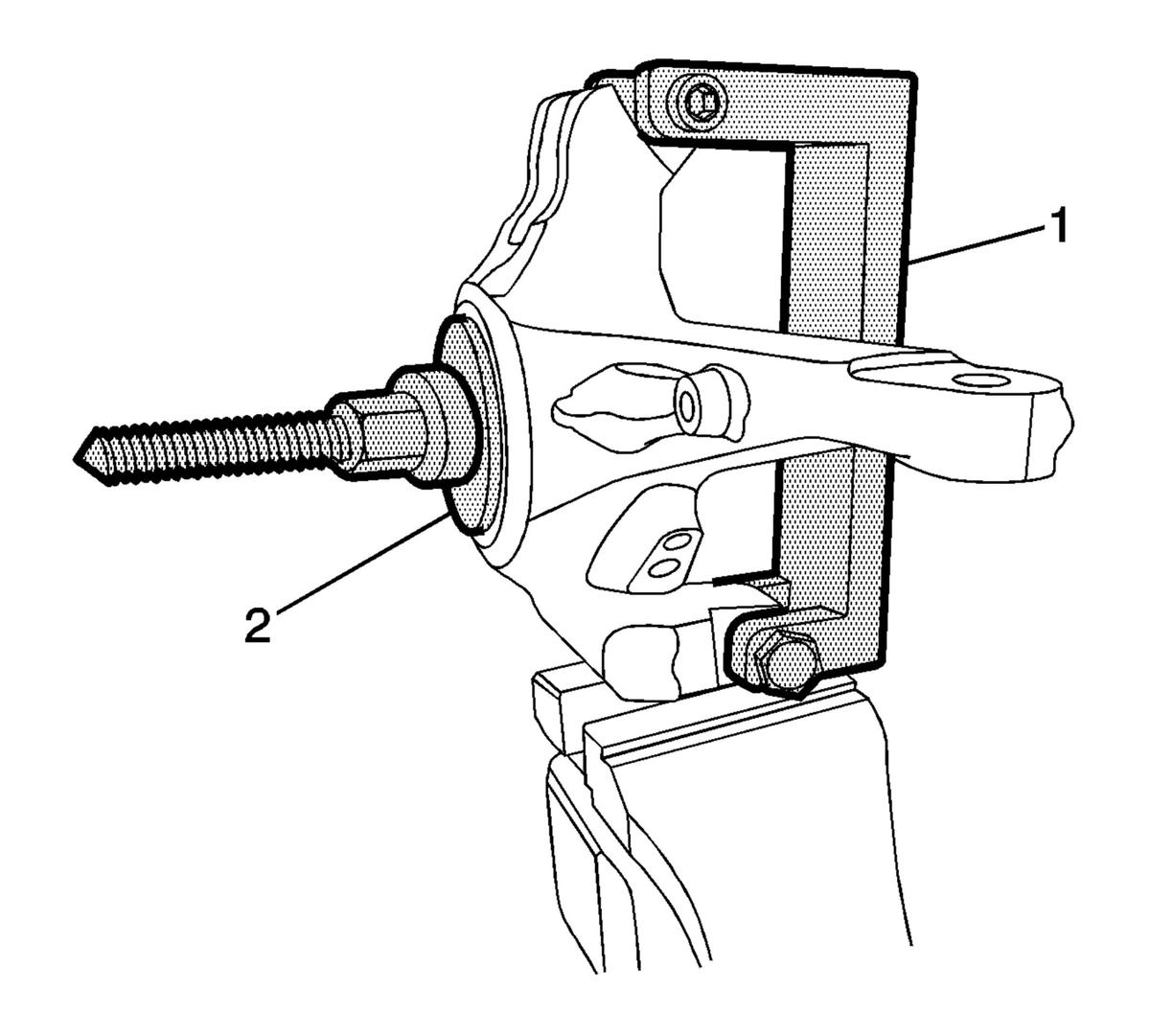

Fig 4: Wheel Hub/Bearing Removal/Installation Bridge Assembly & Adapter

Courtesy of GENERAL MOTORS COMPANY

Position the CH-50559-1 bridge assembly (1) and the CH-50559-3 removal adapter (2) on the steering knuckle.

NOTE:

Inspect the bore of the steering knuckle for pitting, scoring wear, or corrosion.
Replace the steering knuckle if the damage cannot be easily cleaned up with light sanding.

Remove the front wheel bearing from the steering knuckle.
DISCARD the wheel bearing.
