Front Grille Support Reinforcement Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

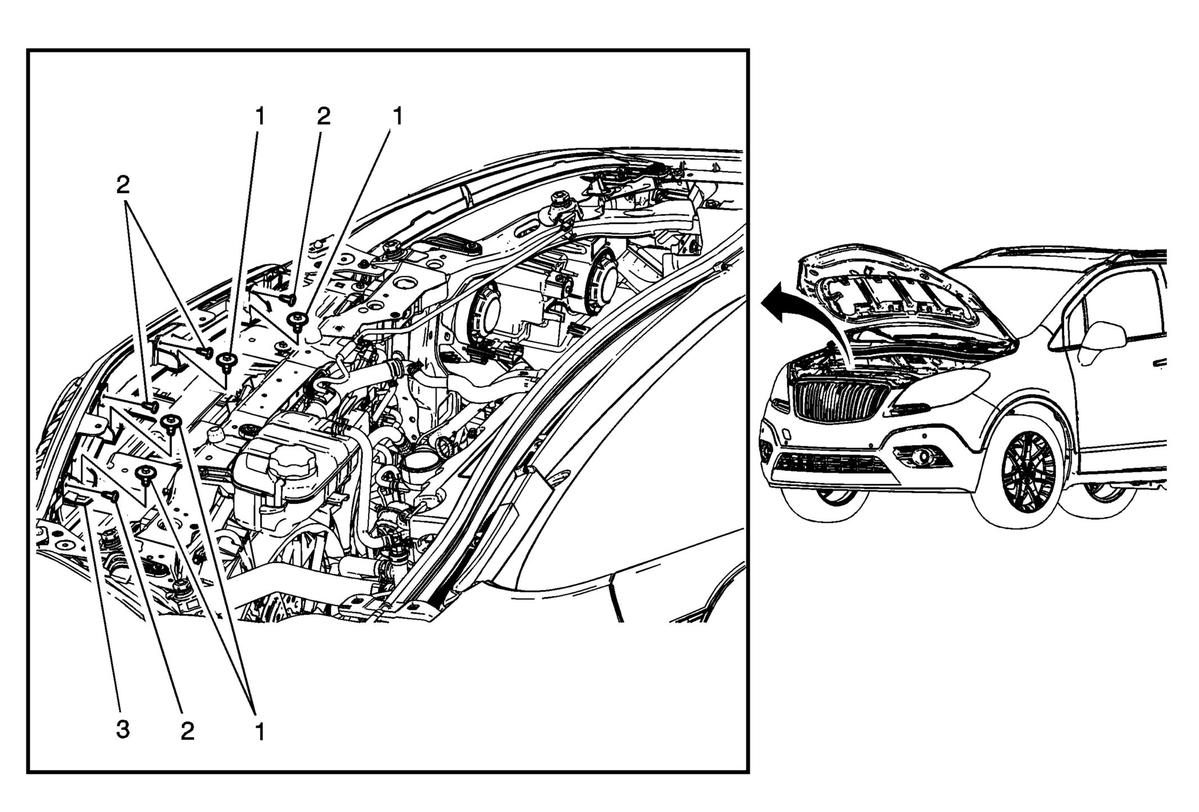

Fig 1: Front Grille Support Reinforcement (Encore)
GM3385477Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement .
1 Front Grille Support Reinforcement Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Front Grille Support Reinforcement Screw (Qty: 4)
Tighten
2.5 N.m (22 lb in)
3 Front Grille Support Reinforcement
