Temperature Valve Gear Replacement (C60)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

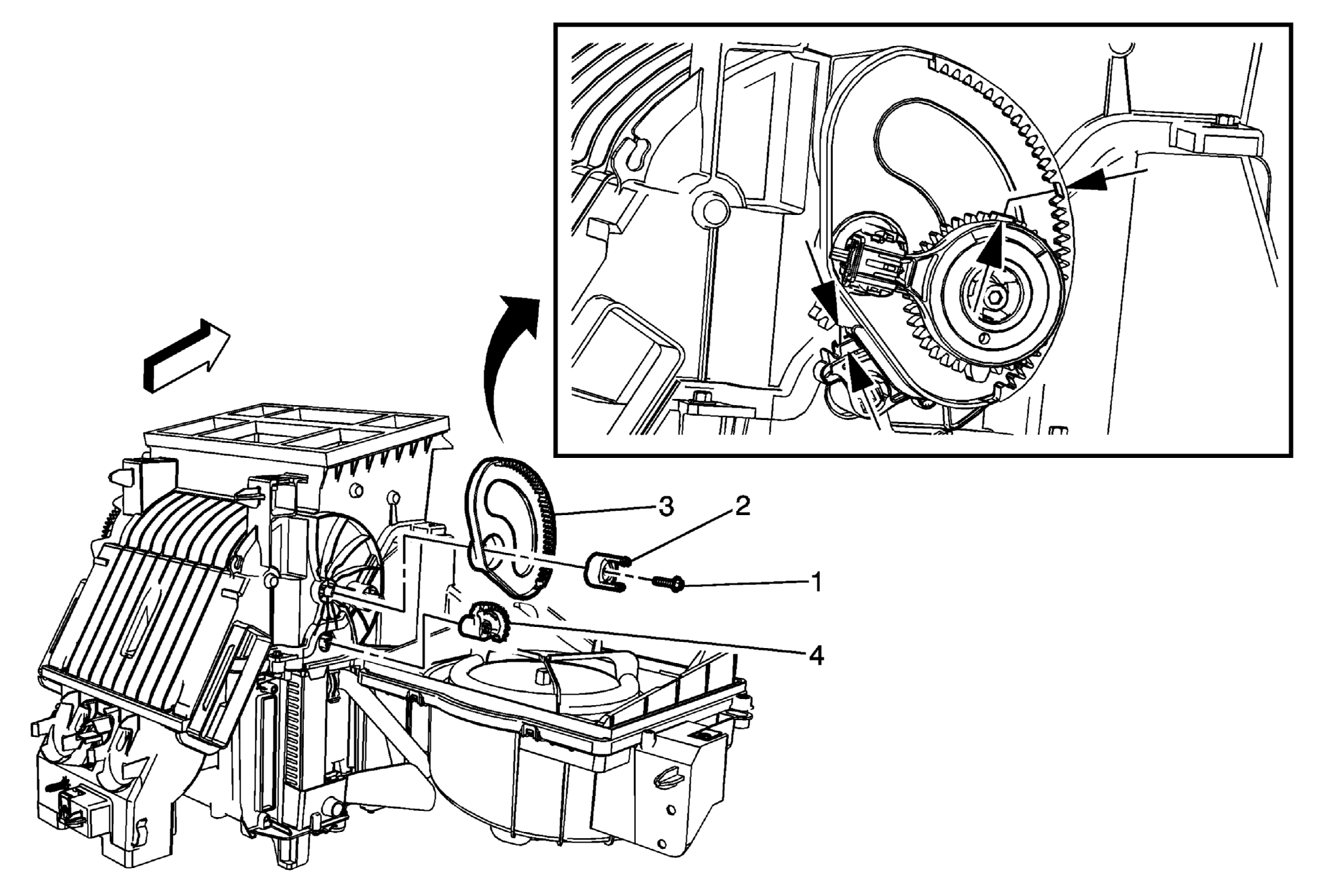

Fig 1: Temperature Valve Gear (C60)
GM3370113Courtesy of GENERAL MOTORS COMPANY
Call out Component Name

Preliminary Procedures

  1. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Trax)Instrument Panel Assembly Replacement (Encore) .
  2. Disconnect the temperature control cable. Refer to Temperature Control Cable Replacement (C60)
1 Temperature Valve Gear Cam Retainer Screw
CAUTION:

Refer to Fastener Caution .


Tighten
2.0 N.m (18 lb in)
2 Temperature Valve Gear Cam
3 Temperature Valve Gear
4 Temperature Valve Gear Lever

Procedures

  1. Index the wider male temperature valve gear lever tooth, to the wider female temperature valve gear tooth.
  2. Index the wider male temperature control cable end gear tooth, to the wider female temperature valve gear tooth
