Removal Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Panel Assembly Replacement (Encore) Remove

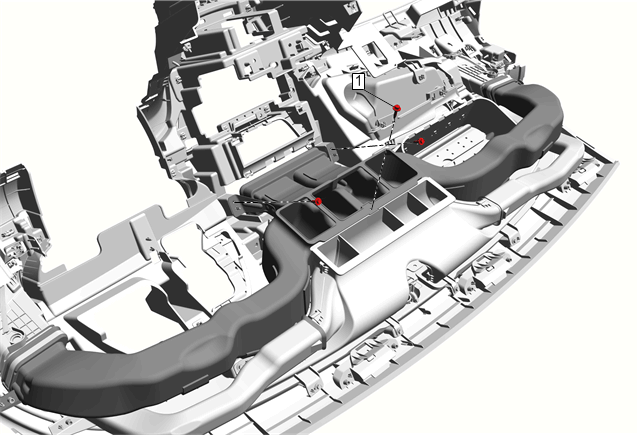

- Instrument Panel Outer Air Outlet Duct Bolt - Remove
- Using the appropriate tool, remove the heat stake (1) securing the left side of the instrument panel outer air outlet duct to the instrument panel.
- Using the appropriate tool, remove the heat stake (1) securing the right side of the instrument panel outer air outlet duct to the instrument panel.
- Instrument Panel Outer Air Outlet Duct - Remove
NOTE:
Both end of the instrument panel outer air outlet duct are fastened onto the instrument panel by the heat staking method. For the re-securing instrument panel outer air outlet duct refer to the installation procedure.
