Compressor Pressure Relief Valve Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

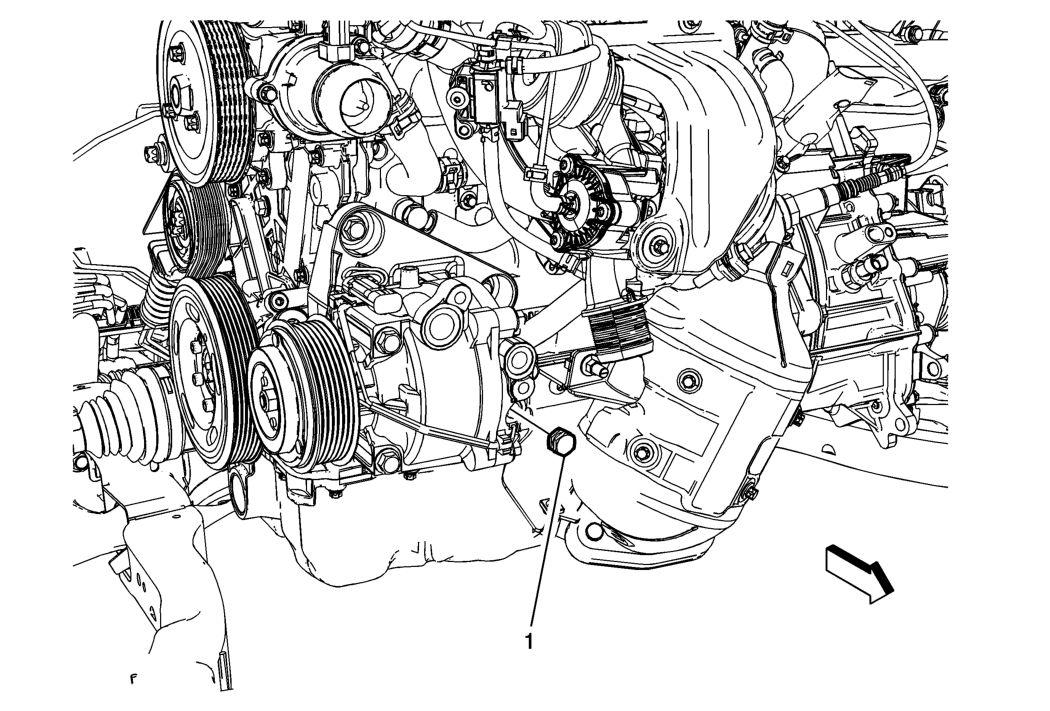

Fig 1: Compressor Pressure Relief Valve (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement .
1	Air Conditioning Compressor Pressure Relief Valve CAUTION: Refer to Fastener Caution . Procedure Discard the old O-ring and replace with a NEW O-ring.

Callout

Component Name

Preliminary Procedure

Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement .

Air Conditioning Compressor Pressure Relief Valve

CAUTION:

Refer to Fastener Caution .

Procedure
Discard the old O-ring and replace with a NEW O-ring.
