Air Inlet Valve Actuator Replacement (CJ2 C67)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

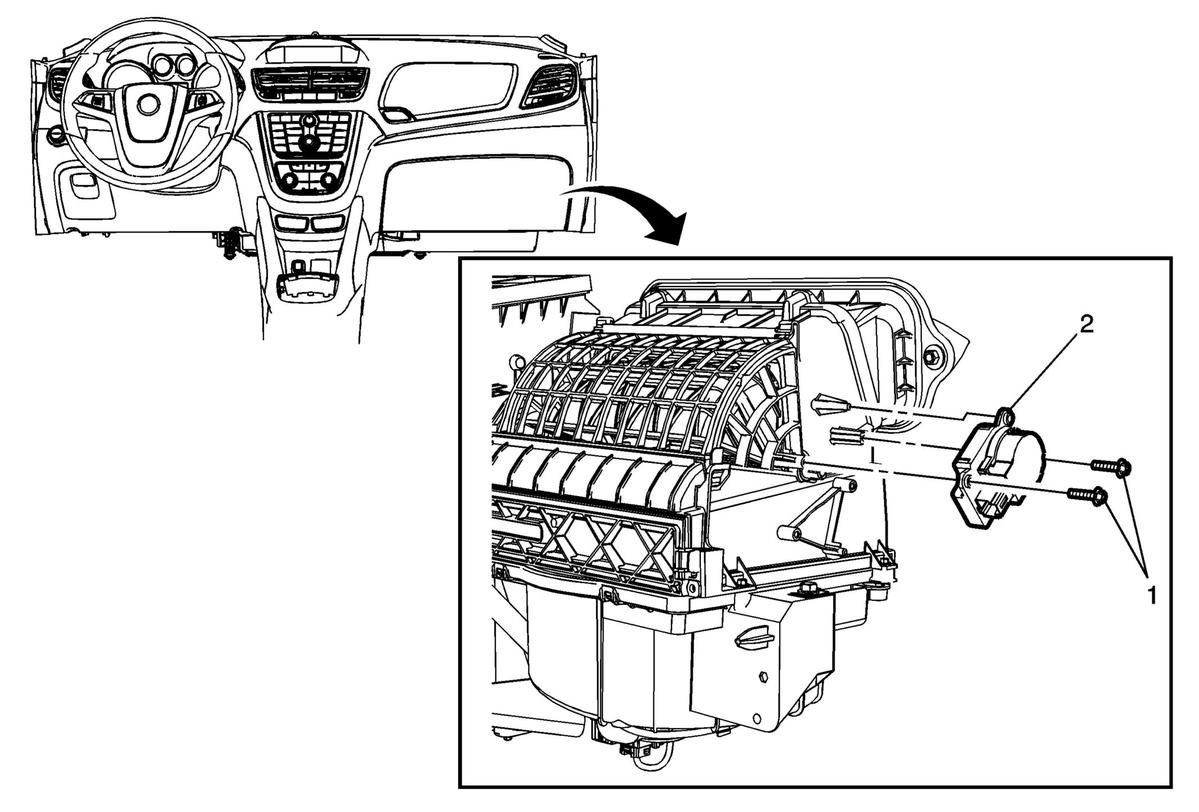

Fig 1: Air Inlet Valve Actuator (CJ2 C67)
GM2770703Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Trax)Communication Interface Module Bracket Replacement (Encore) .
1 Air Inlet Valve Actuator Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Air Inlet Valve Actuator
Procedure
Disconnect the air inlet valve actuator connector.
