Air Inlet Valve Actuator Replacement (C60)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

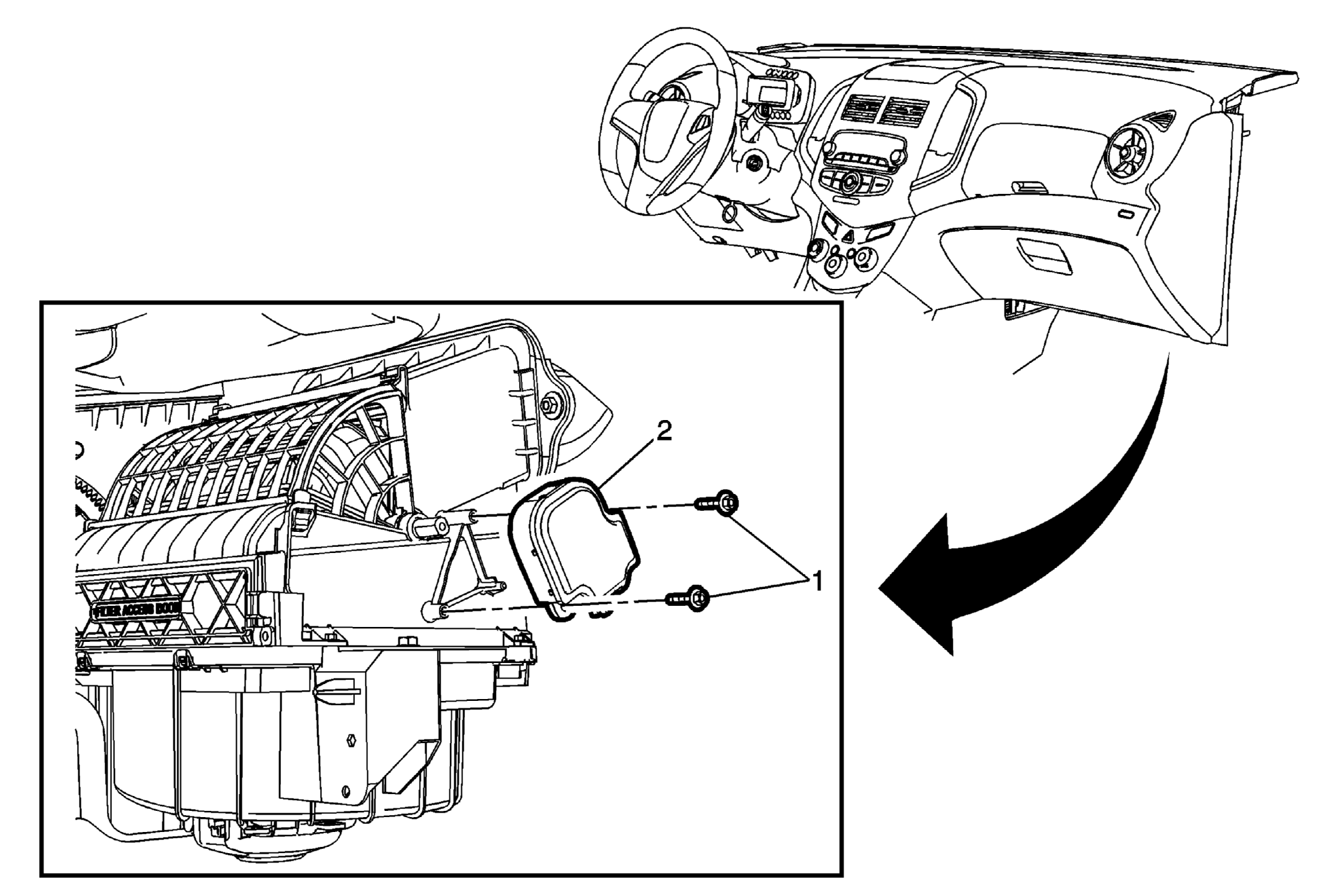

Fig 1: Air Inlet Valve Actuator (C60)
GM2493810Courtesy of GENERAL MOTORS COMPANY
Call out Component Name

Preliminary Procedures

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the communication interface module bracket, if equipped. Refer to Communication Interface Module Bracket Replacement (Trax)Communication Interface Module Bracket Replacement (Encore) .
1 Air Inlet Valve Actuator Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Un-clip and reposition the wire harness retainer to access the air inlet valve actuator screws.
Tighten
2.0 N.m (18 lb in)
2 Air Inlet Valve Actuator

Procedures

  1. Disconnect the air inlet valve actuator electrical connector.
  2. Perform the actuator re-calibration procedure. Refer to Actuator Recalibration .
