Air Inlet Assembly Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

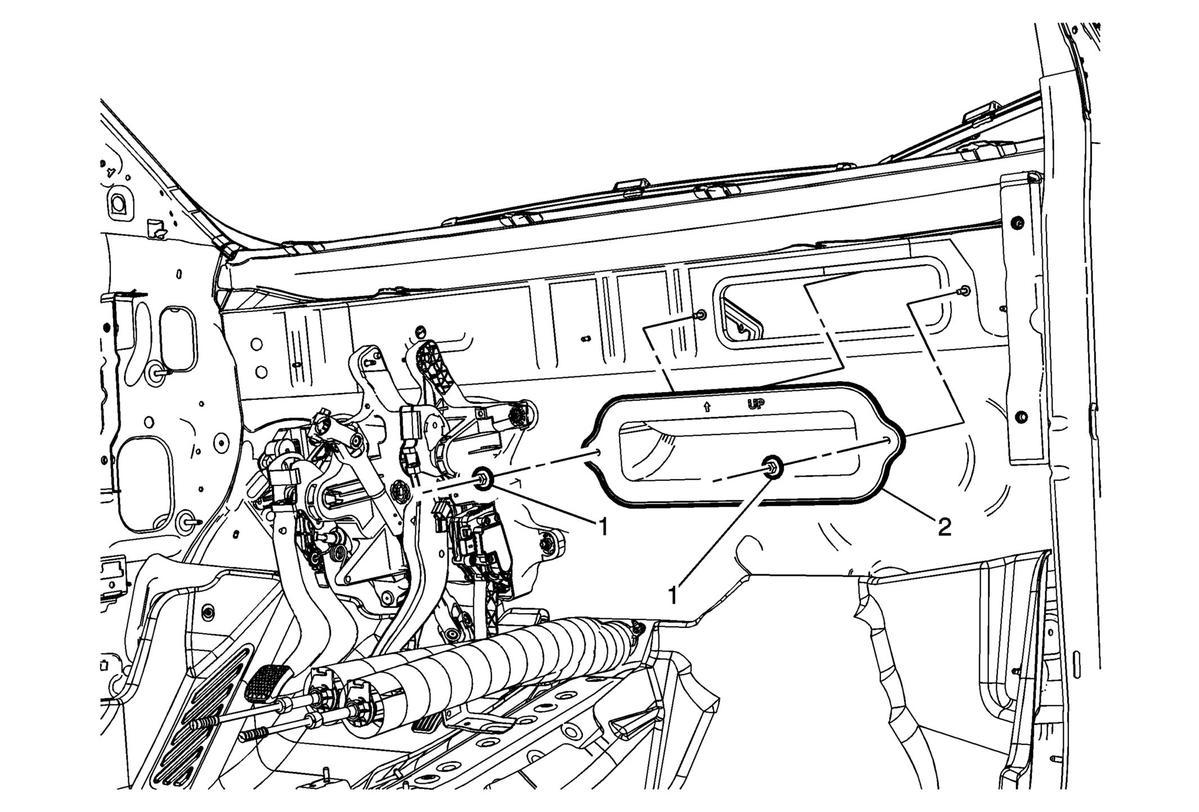

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . |
|
| 1 | Air Inlet Assembly Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Air Inlet Assembly |
