Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

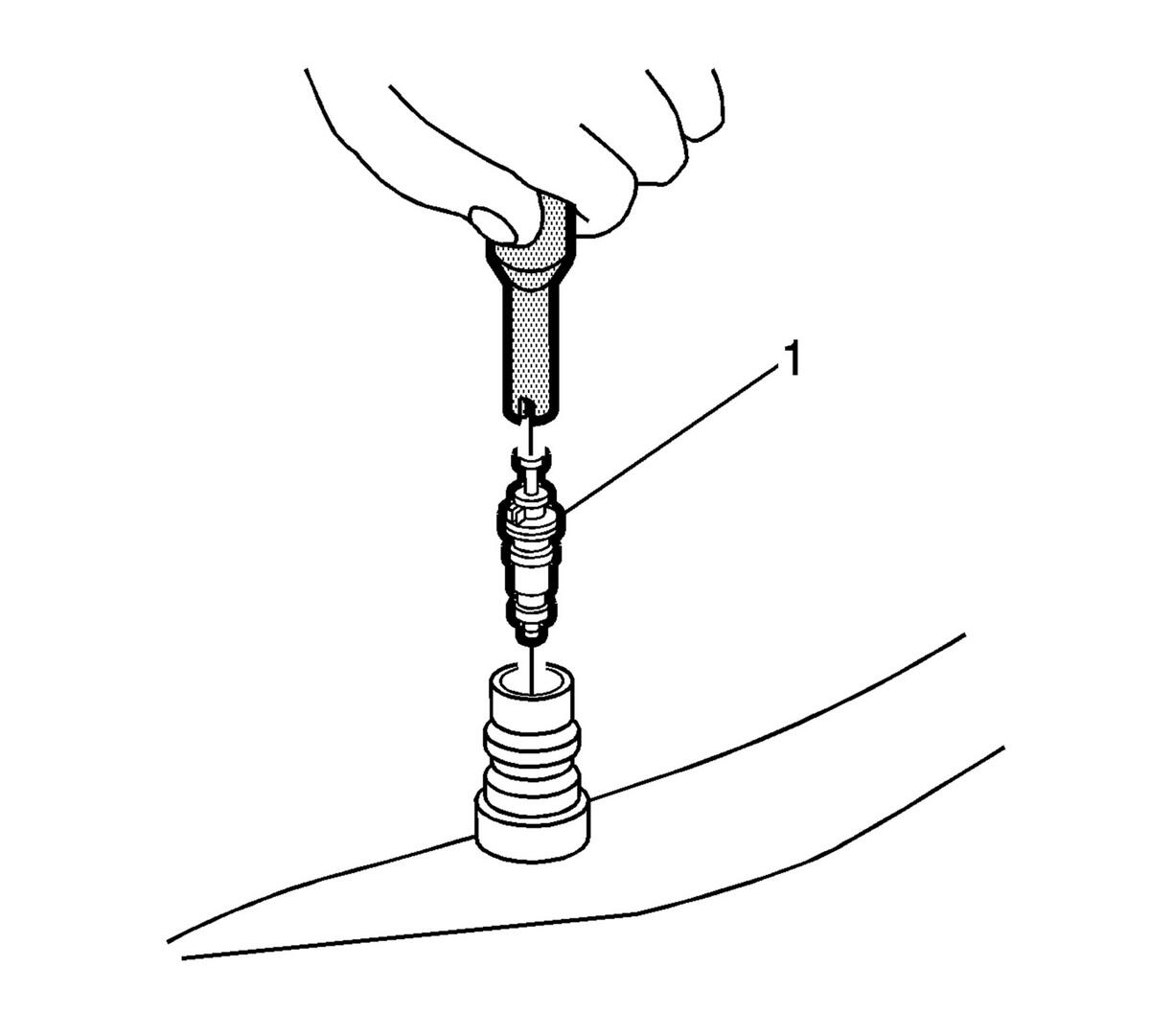

    Fig 1: Valve Core
    GM2774721Courtesy of GENERAL MOTORS COMPANY
  1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging (R-134a) .
  2. Using the GE 46246  Valve Core Tool , remove the valve core (1) from the service port.
