Air Conditioning Evaporator Thermal Expansion Valve Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

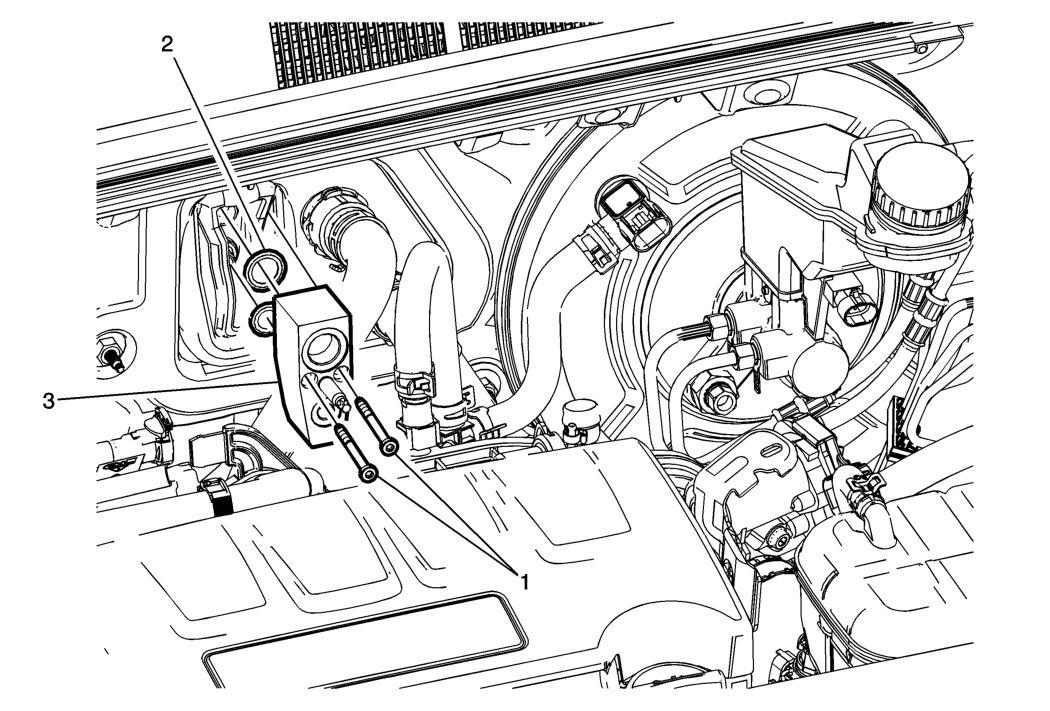

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve (LUV)
GM2807204Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
  2. Remove the air conditioning evaporator hose assembly from the thermal expansion valve. Refer to Air Conditioning Evaporator Hose Assembly Replacement (LUV) .
1 Thermal Expansion Valve Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Thermal Expansion Valve Sealing Washer (Qty: 2)
NOTE:

Remove and discard the sealing washers. Refer to Air Conditioning System Seal Replacement .
3 Thermal Expansion Valve
